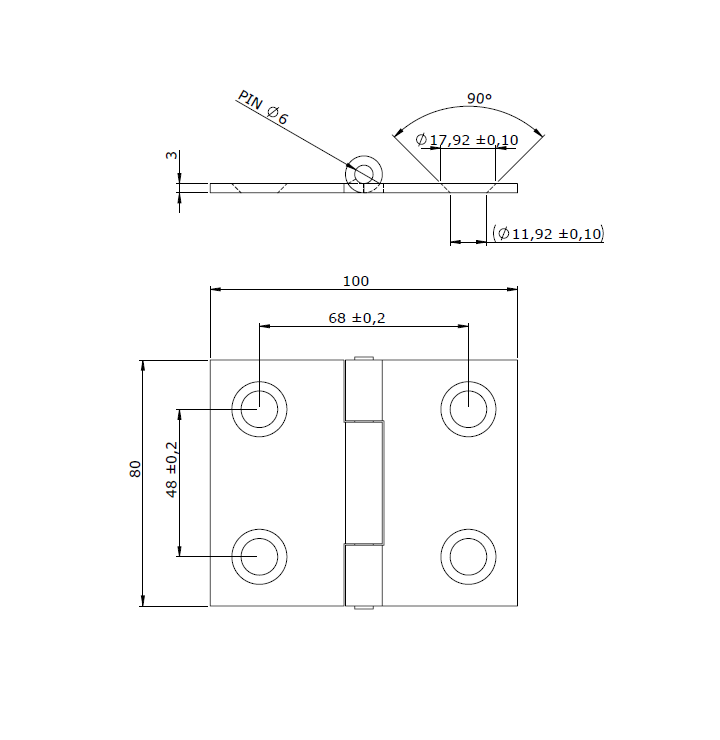

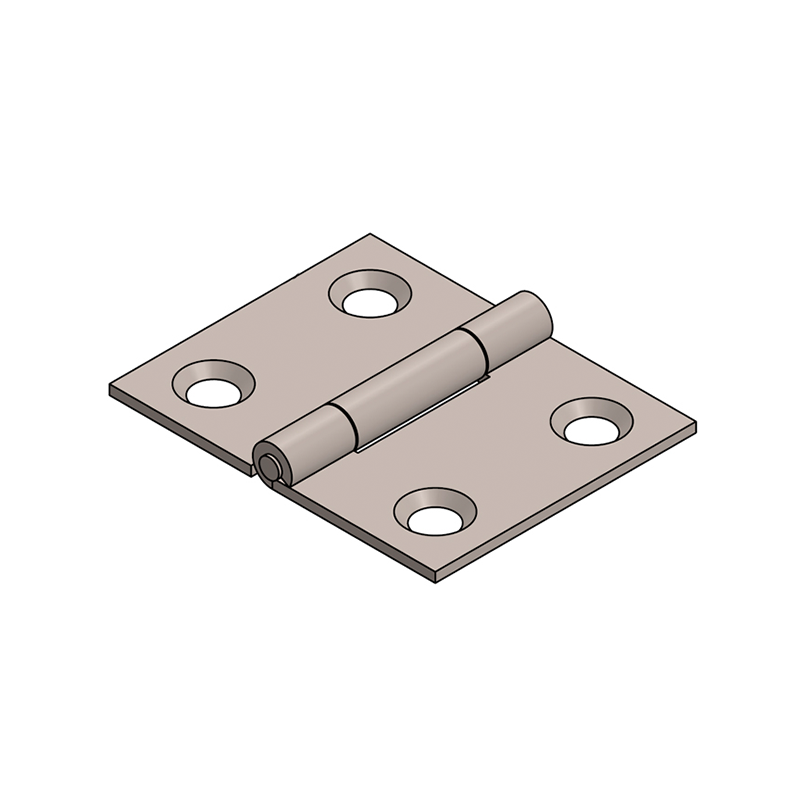

Butt hinge w/holes, acid proof stainless steel, L=80, B=100, T=3
MT108513
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 6 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
With holes
Pindiameter in mm
6
Hole diameter in mm
11.9
Height in mm
12
Length i mm
80
Thickness in mm
3
Long description
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter on 6 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
