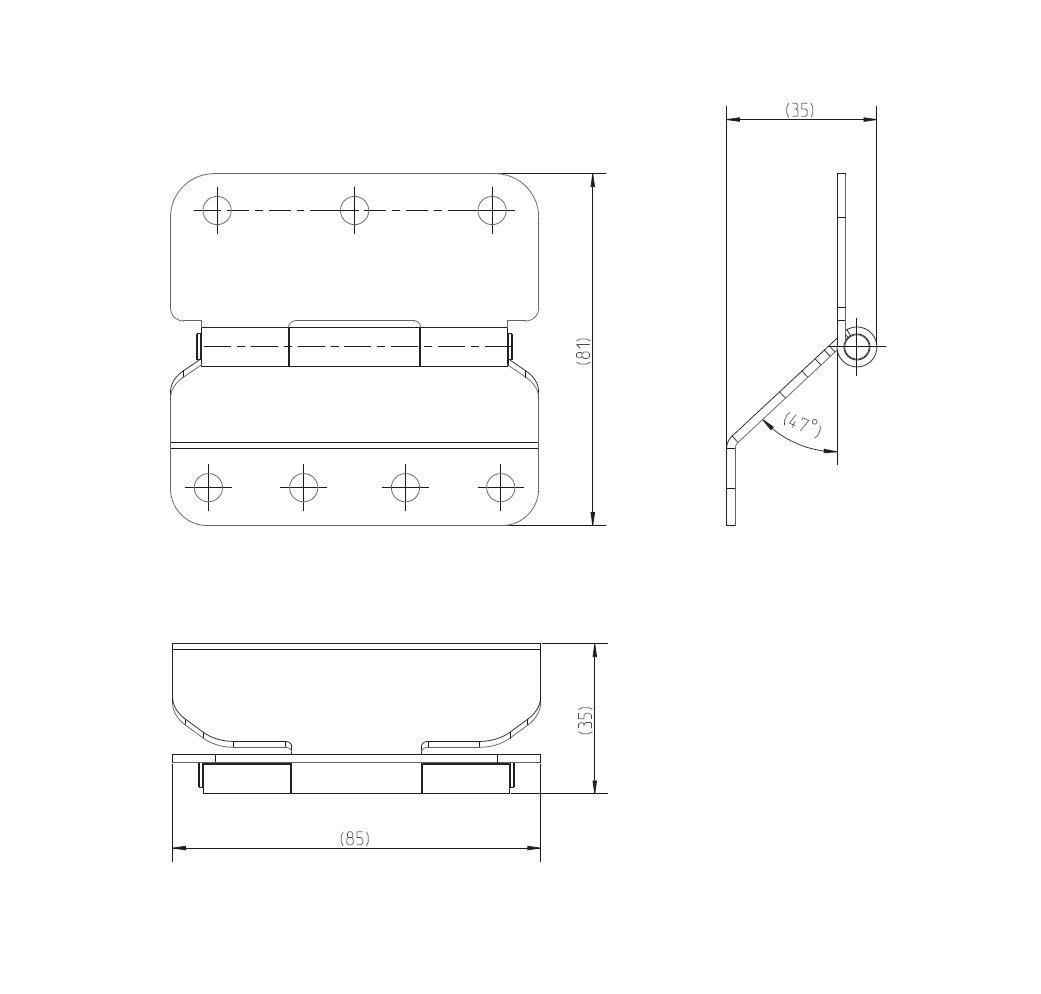

Butt hinge w/holes, acid proof stainless steel, L=85, B=81, T=2
MT105414
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter of 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple
Material
AISI 316L
Material type
Acid proof Stainless Steel
Type
With holes
Pin diameter in mm
5
Hole diameter in mm
6.5
Height in mm
35
Length in mm
85
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in acid proof stainless steel and designed with a pindiameter of 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
