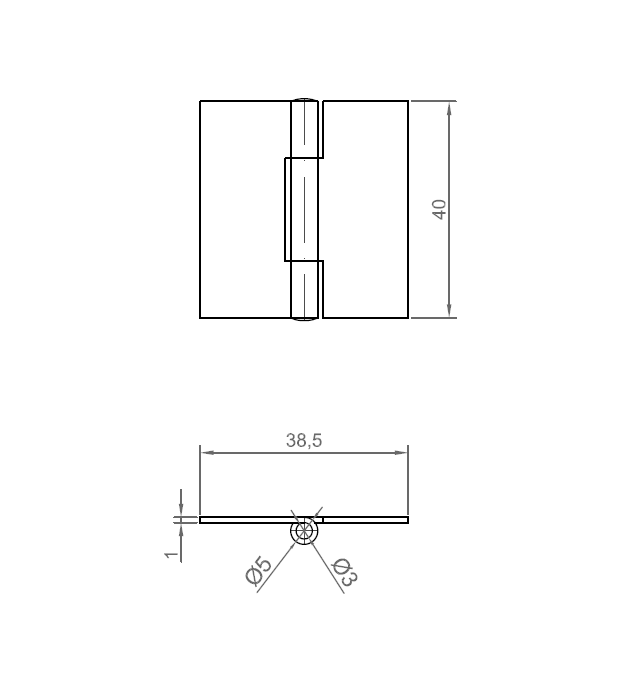

Butt hinge w/o holes, acid proof stainless steel, L=40, B=38,5, T=1
MT104706
Butt hinge w/o holes manufactured in acid proof stainless steel and designed with a pindiameter of 3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
Without holes
Pin diameter in mm
3
Height in mm
5
Length in mm
40
Thickness in mm
1
Long description
Butt hinge w/o holes manufactured in acid proof stainless steel and designed with a pindiameter of 3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
