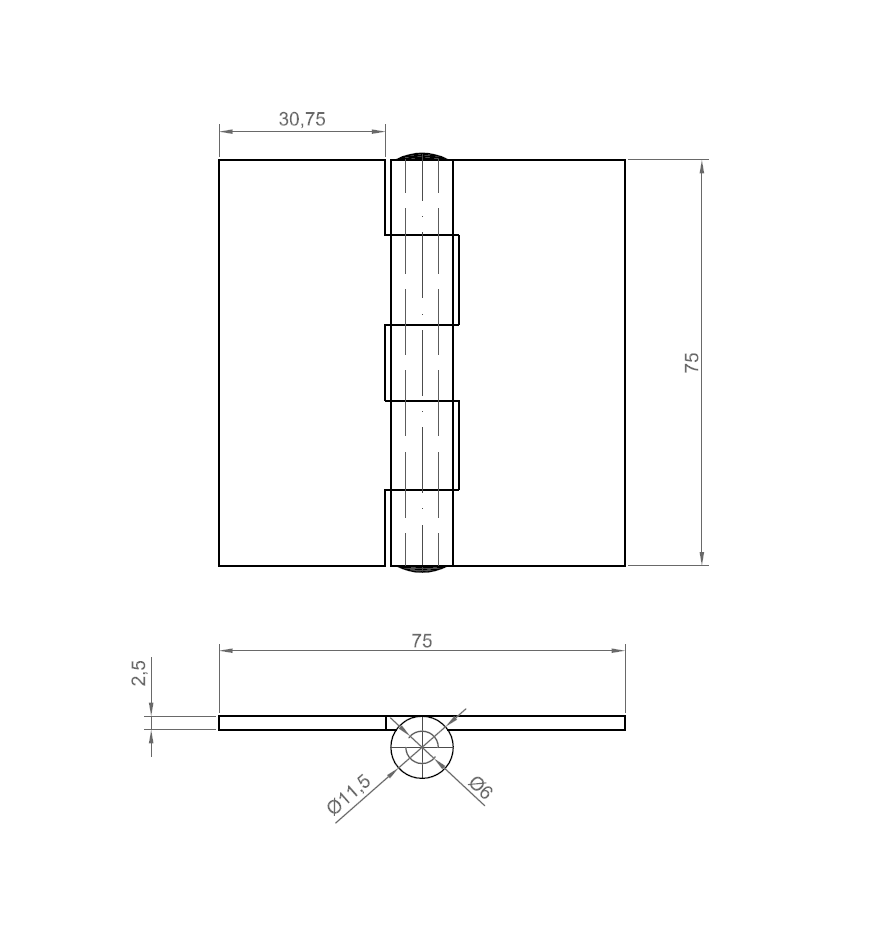

Butt hinge w/o holes, acid proof stainless steel, L=75, B=75, T=2,5
MT103034
Butt hinge w/o holes manufactured in acid proof stainless steel and designed with a pindiameter of 6 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Material type
Acid proof Stainless Steel
Type
Without holes
Pin diameter in mm
6
Hole diameter in mm
0
Height in mm
11.5
Length in mm
75
Thickness in mm
2.5
Long description
Butt hinge w/o holes manufactured in acid proof stainless steel and designed with a pindiameter of 6 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
