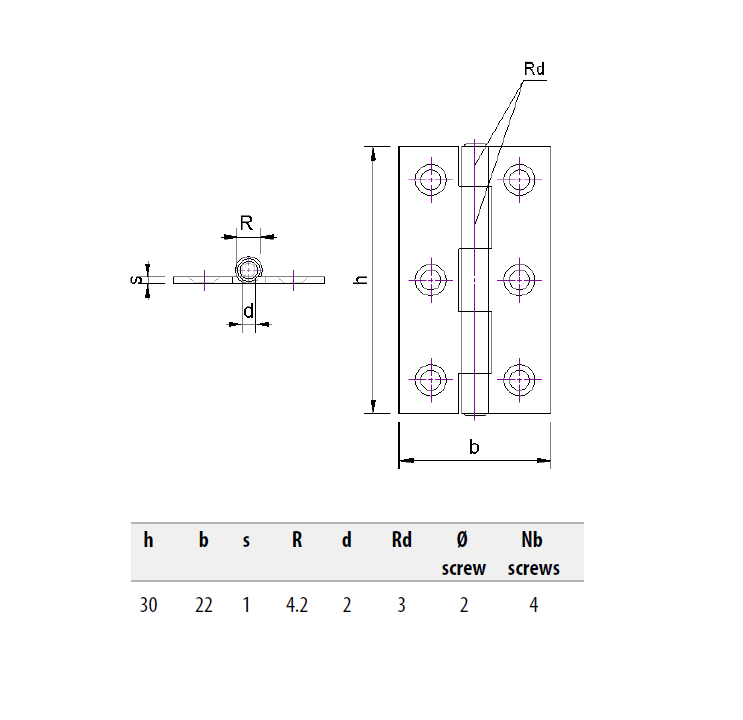

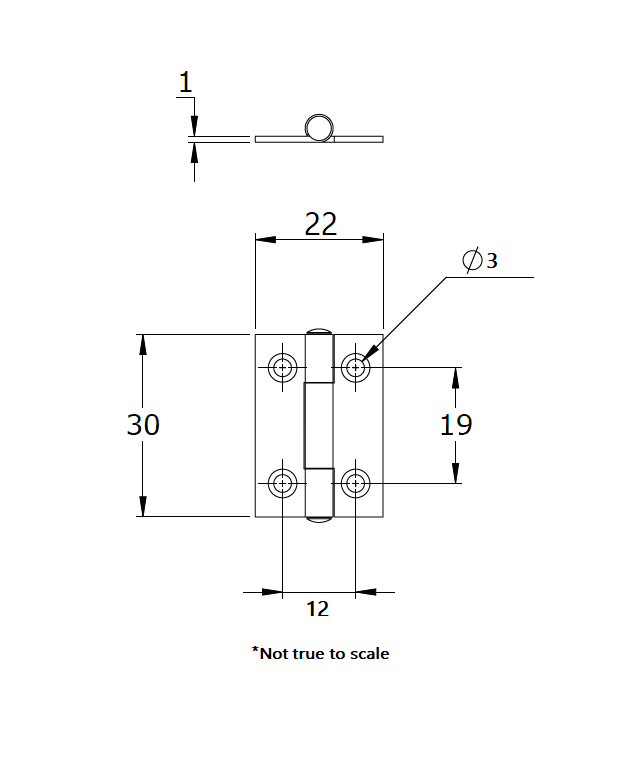

Butt hinge w/holes, stainless steel, L=30, B=22, T=1
MT110225
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 2 mm. Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material type
Stainless steel
Type
With holes
Pin diameter in mm
2
Hole diameter in mm
3
Height in mm
4.2
Length in mm
30
Thickness in mm
1
Nettovægt
0.0065
Varekode
8302100090
Lande-/områdekode for oprindelse
CH
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 2 mm. Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
