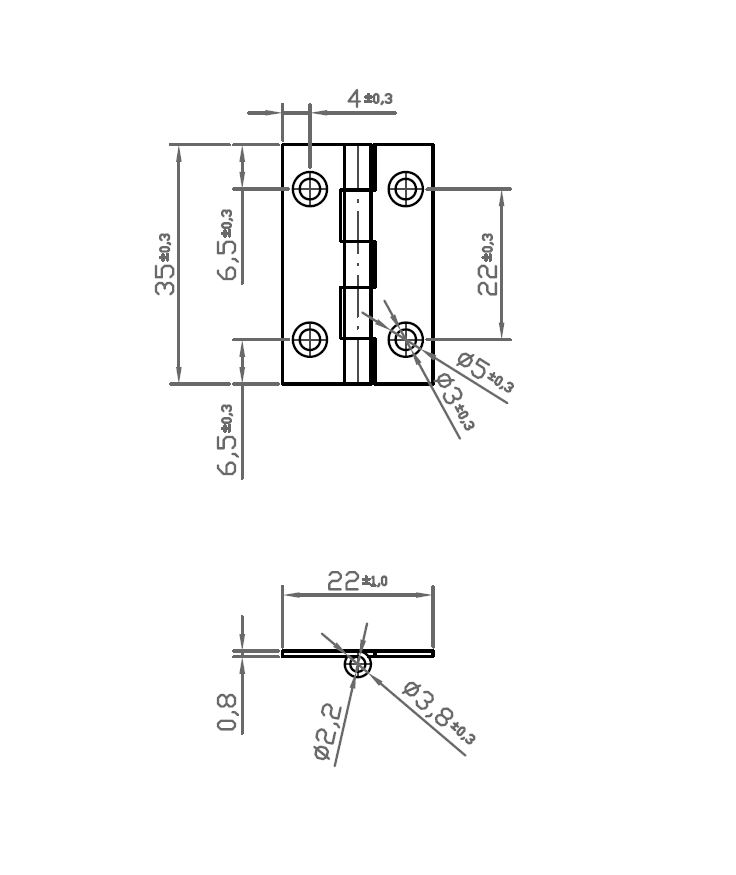

Butt hinge w/holes, stainless steel, L=35, B=22, T=0,8
MT102511
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 2,2 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material
AISI 304
Material type
Stainless steel
Type
With holes
Pindiameter in mm
2.2
Hole diameter in mm
3
Height in mm
3.8
Length i mm
35
Thickness in mm
0.8
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 2,2 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
