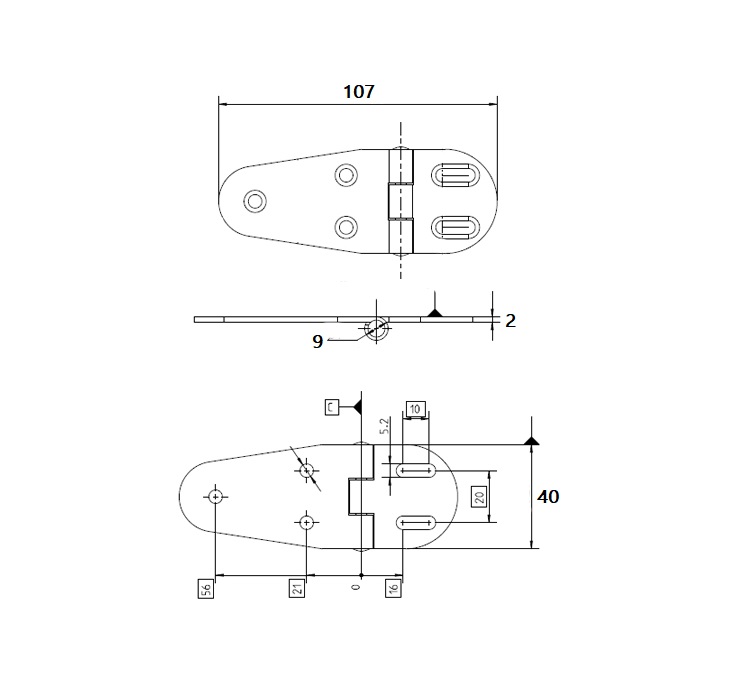

Butt hinge w/holes, stainless steel, L=40, B=107, T=2
MT103959
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk & Oval
Material
AISI 304
Material type
Stainless steel
Type
With holes
Pindiameter in mm
5
Hole diameter in mm
5.2
Height in mm
9
Length i mm
40
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
