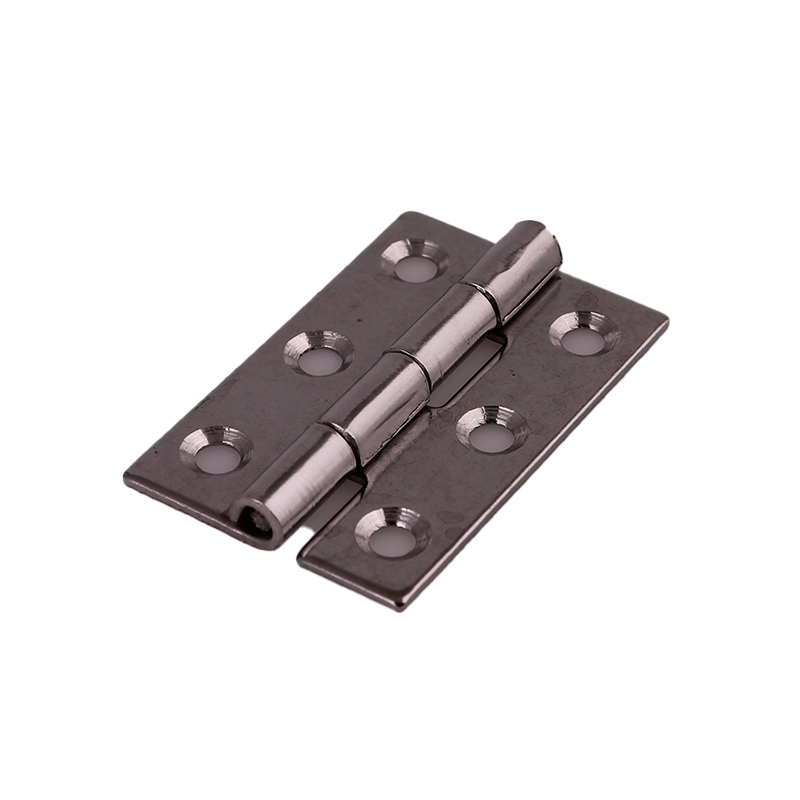

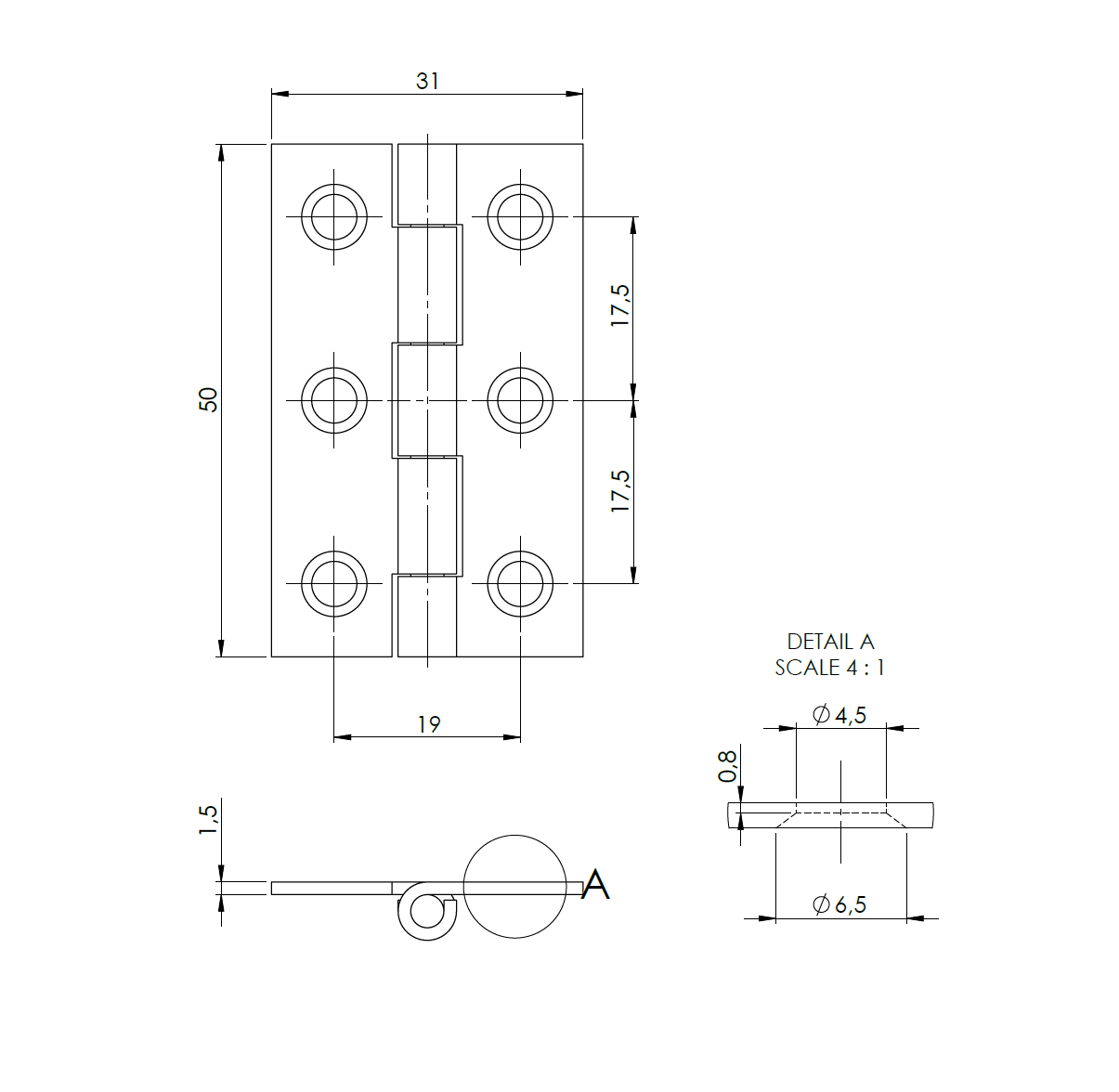

Butt hinge w/holes, stainless steel, L=50, B=31, T=1,5
MT110229
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 3,3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material
AISI 304
Material type
Stainless steel
Type
With holes
Pin diameter in mm
3.3
Hole diameter in mm
4.5
Height in mm
6.3
Length in mm
50
Thickness in mm
1.5
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 3,3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
