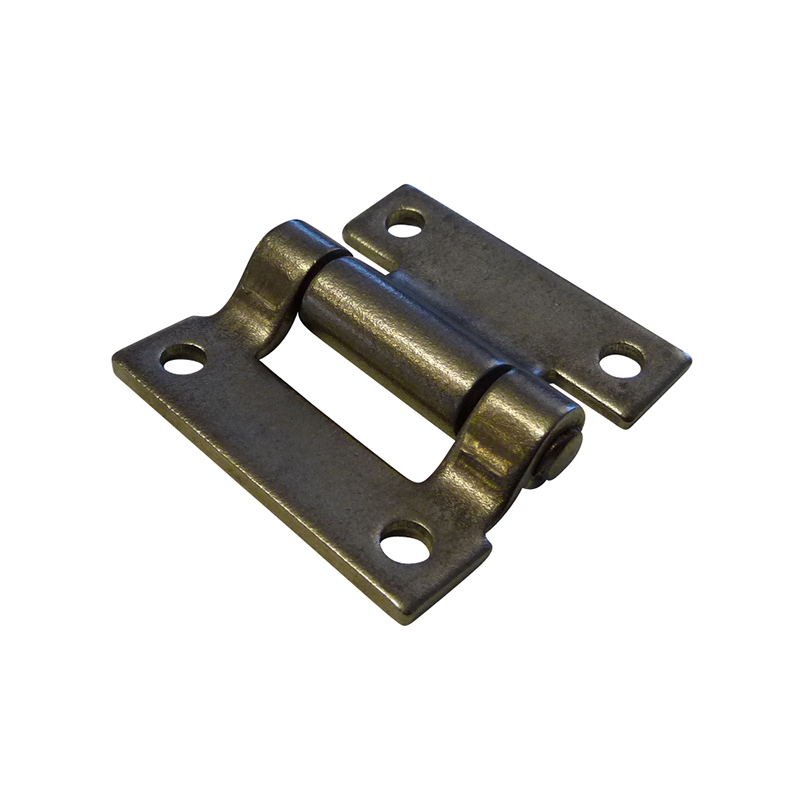

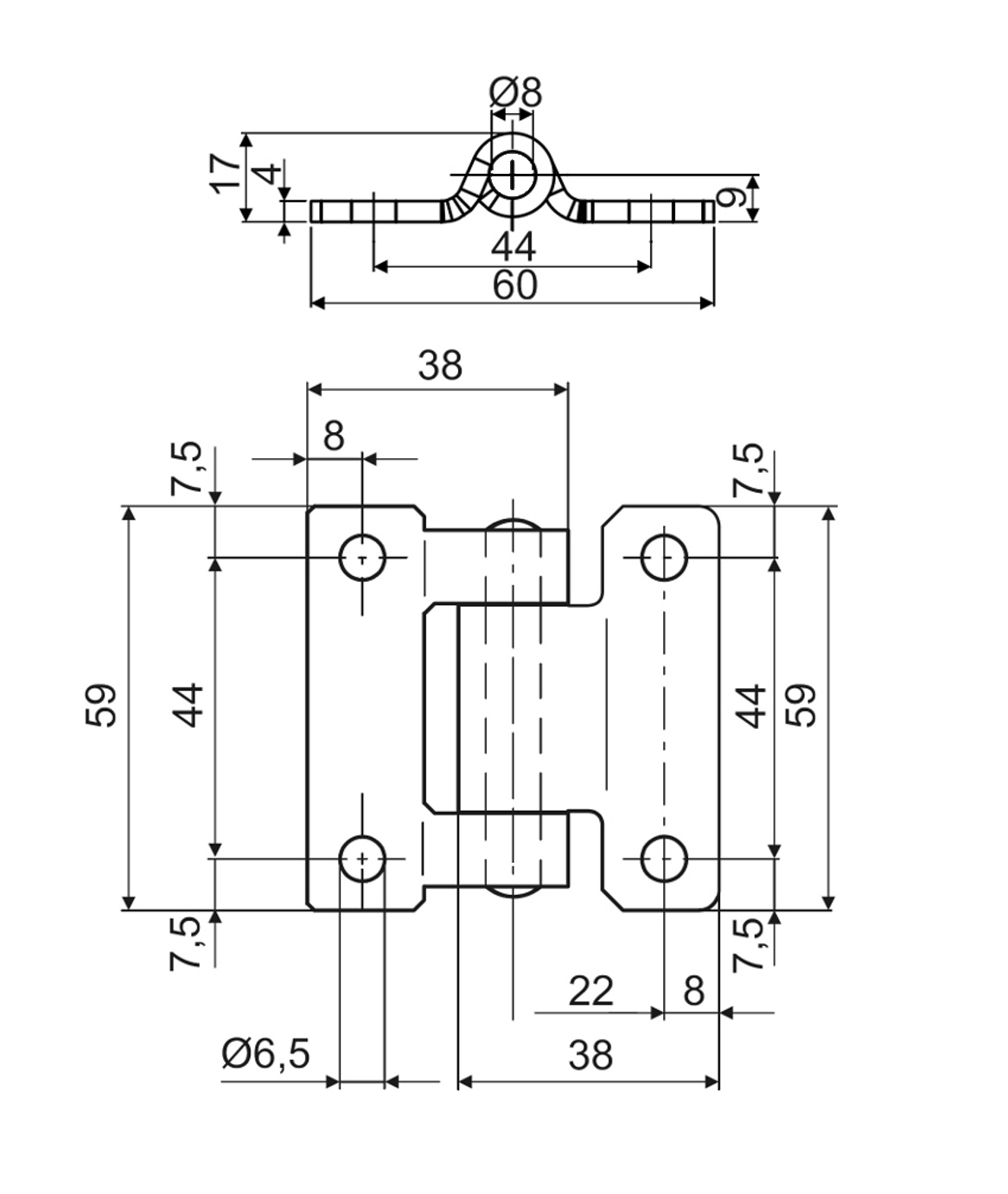

Butt hinge w/holes, stainless steel, L=59, B=60, T=4
MT103958
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 8 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple
Material
AISI 304
Material type
Stainless steel
Type
With holes
Pin diameter in mm
8
Hole diameter in mm
6.5
Height in mm
17
Length in mm
59
Thickness in mm
4
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 8 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Product data
