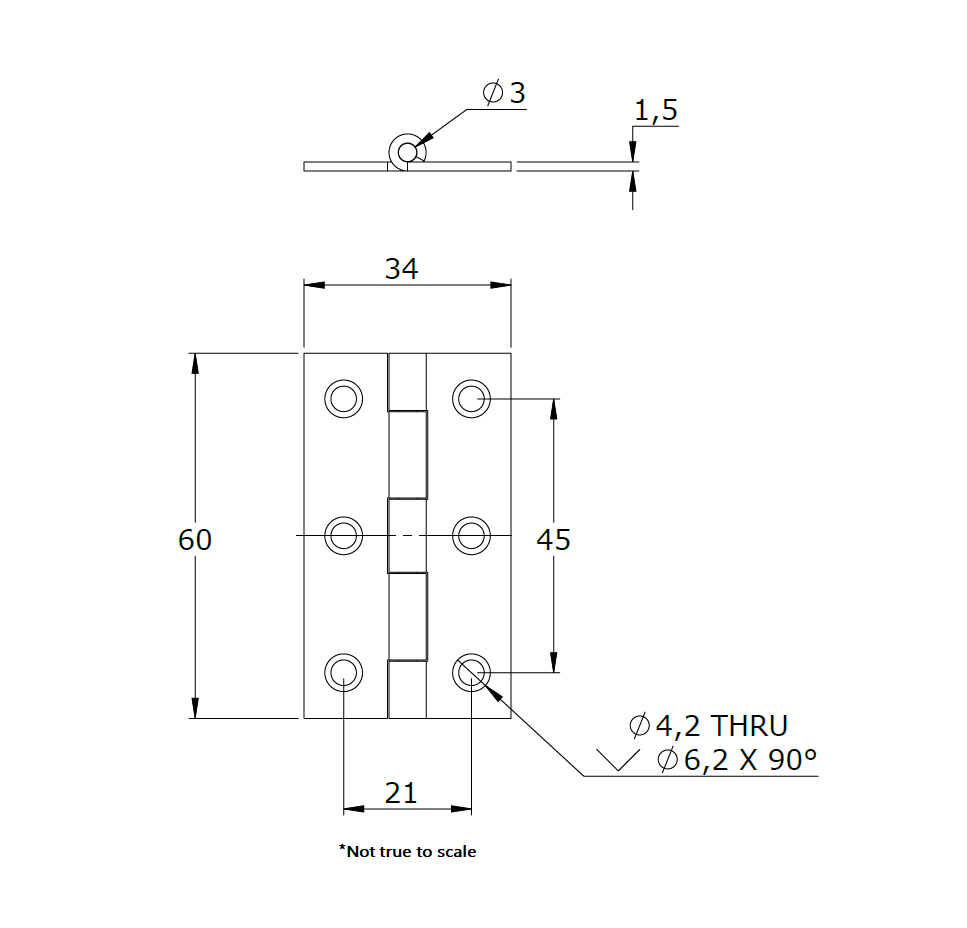

Butt hinge w/holes, stainless steel, L=60, B=34, T=1,5
MT110231
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 3 mm. Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material type
Stainless steel
Type
With holes
Pin diameter in mm
3
Hole diameter in mm
4.2
Height in mm
6.1
Length in mm
60
Thickness in mm
1.5
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 3 mm. Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
