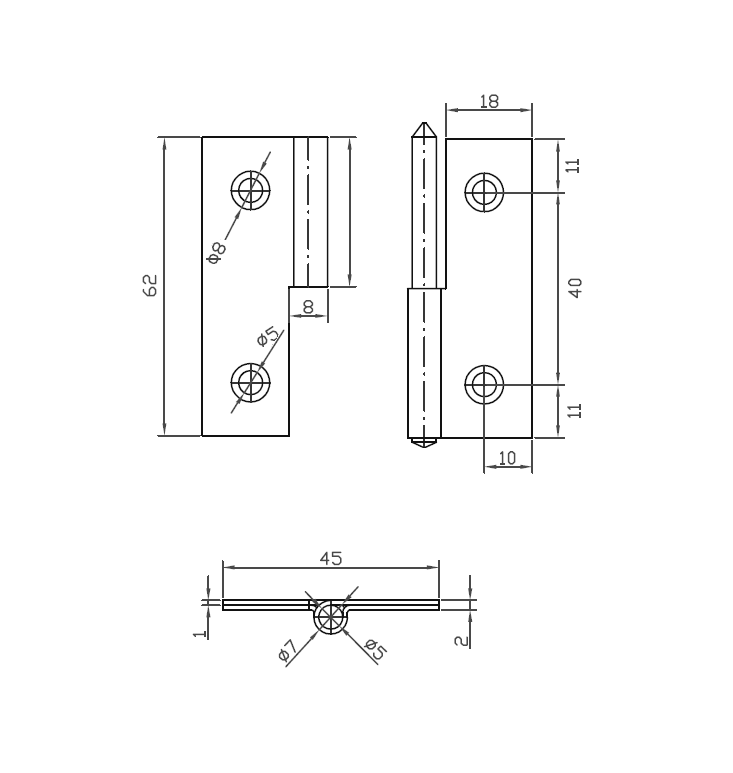

Butt hinge w/holes, stainless steel, L=62, B=45, T=2
MT104537
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 5 mm. Brass pin on the right hinge leaf. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Pin type
Lift off
Hole type
Countersunk
Material type
Stainless steel
Type
With holes
Pin diameter in mm
5
Hole diameter in mm
5
Height in mm
7
Length in mm
62
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 5 mm. Brass pin on the right hinge leaf. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
