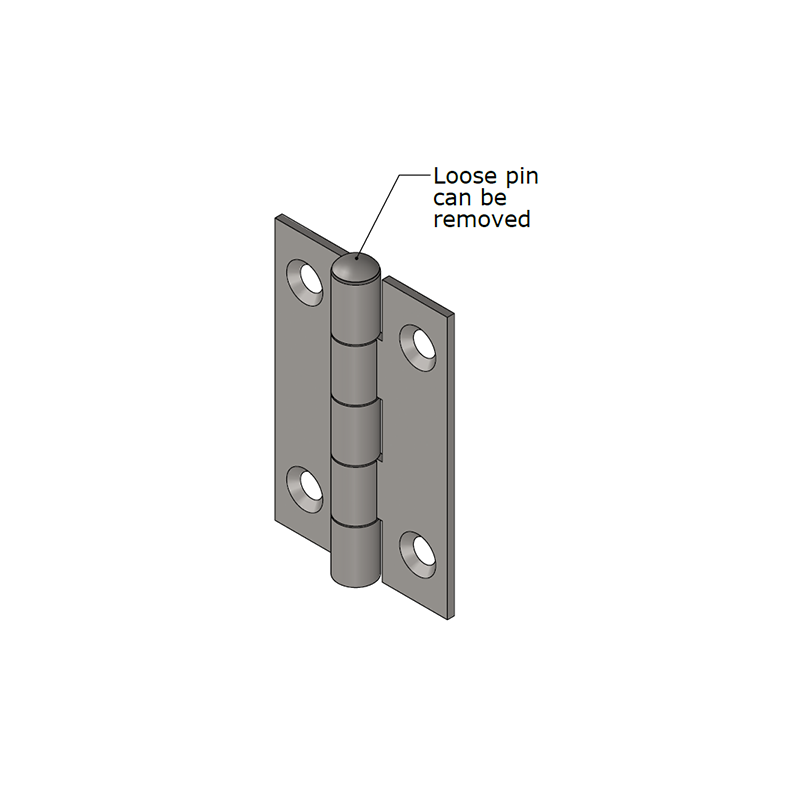

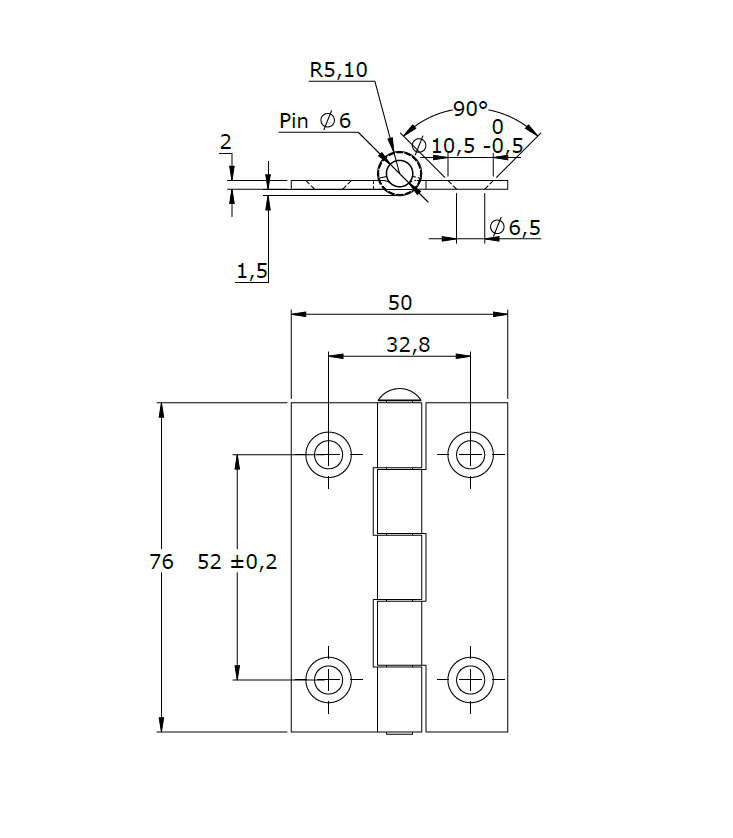

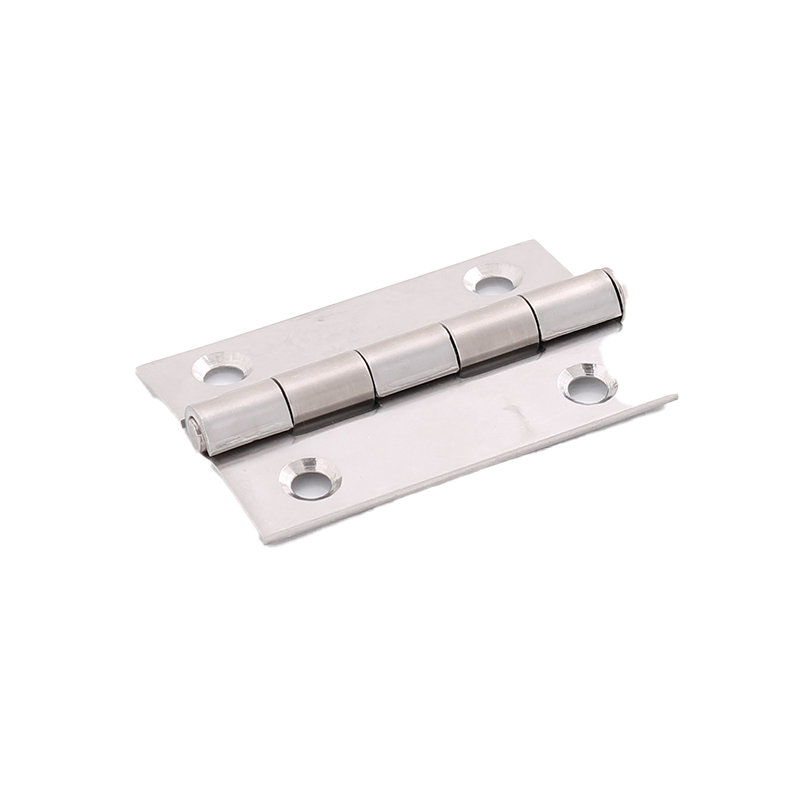

Butt hinge w/holes, stainless steel, L=76, B=50, T=2
MT108240
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 6 mm. Loose pin. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Pin type
Loose
Hole type
Countersunk
Material
AISI 304
Material type
Stainless steel
Type
With holes
Pin diameter in mm
6
Hole diameter in mm
6.5
Height in mm
10.2
Length in mm
76
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter on 6 mm. Loose pin. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
