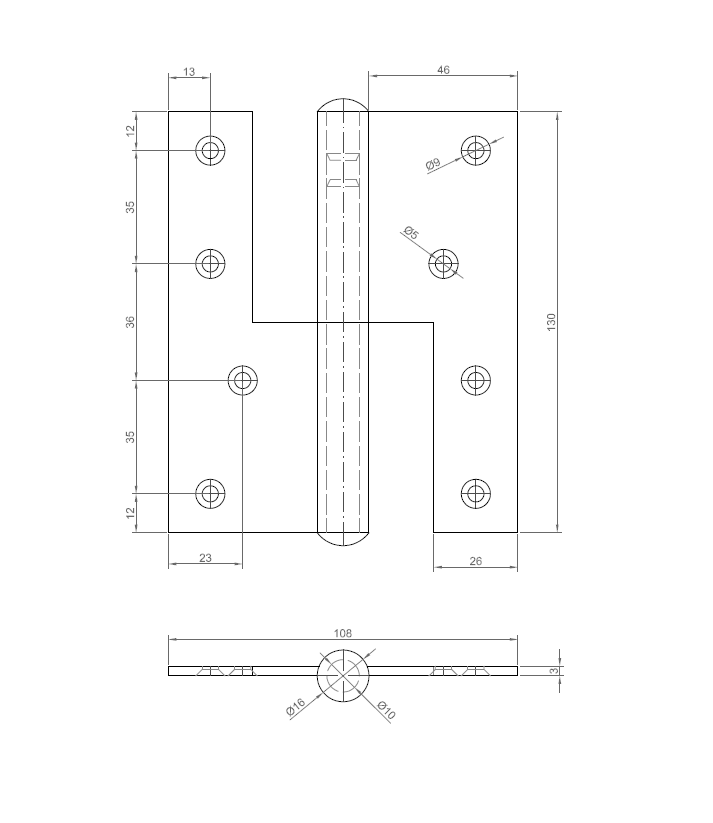

Butt hinge w/holes, stainless steel, left hand version, L=130, B=108, T=3
MT104416
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 10 mm. Lift-off hinge. Left hand version. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Pin type
Lift off
Hole type
Countersunk
Material
AISI 304
Material type
Stainless steel
Surface finish
Satin
Type
With holes
Pin diameter in mm
10
Hole diameter in mm
5
Height in mm
16
Length in mm
130
Thickness in mm
3
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 10 mm. Lift-off hinge. Left hand version. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
