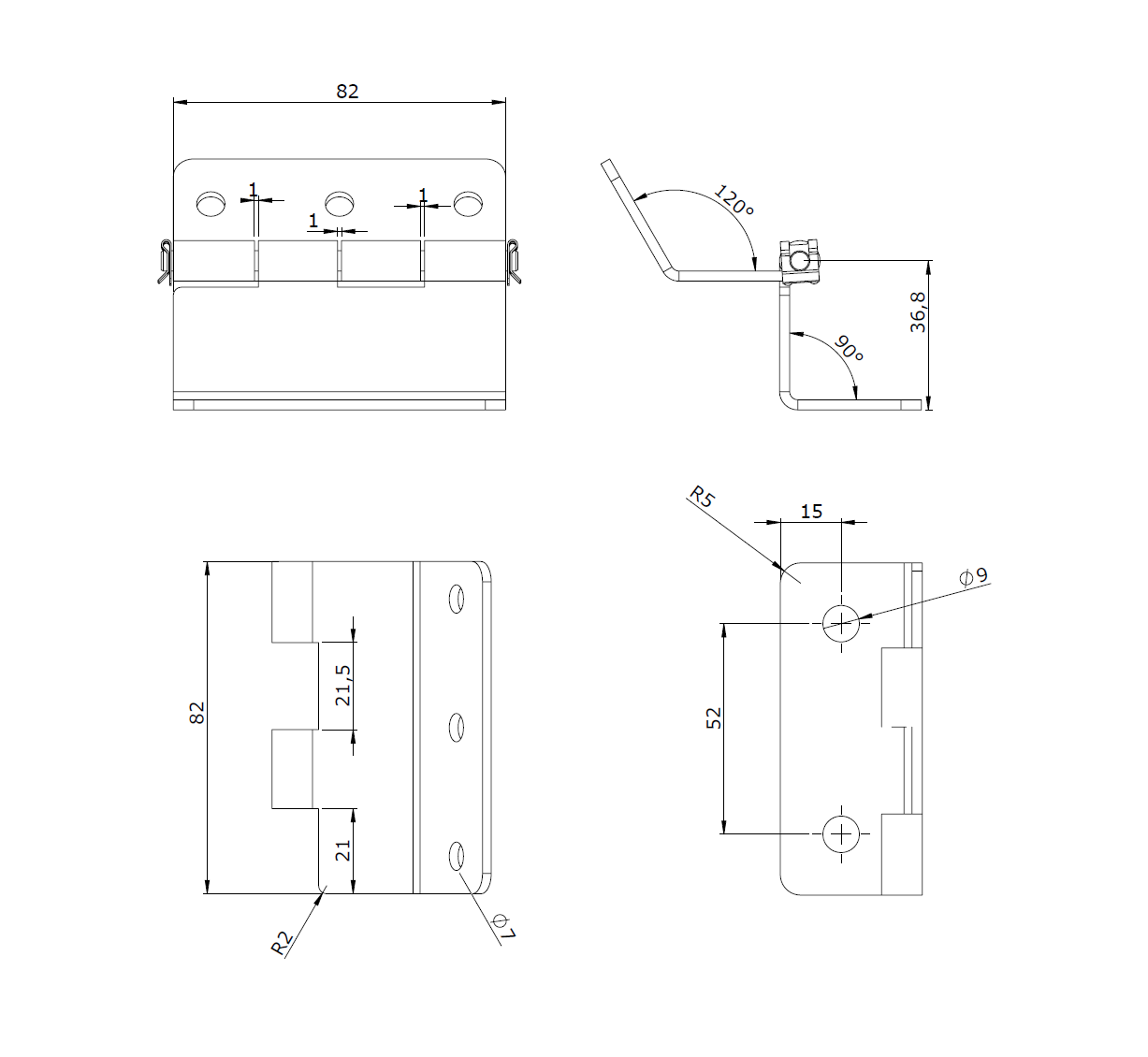

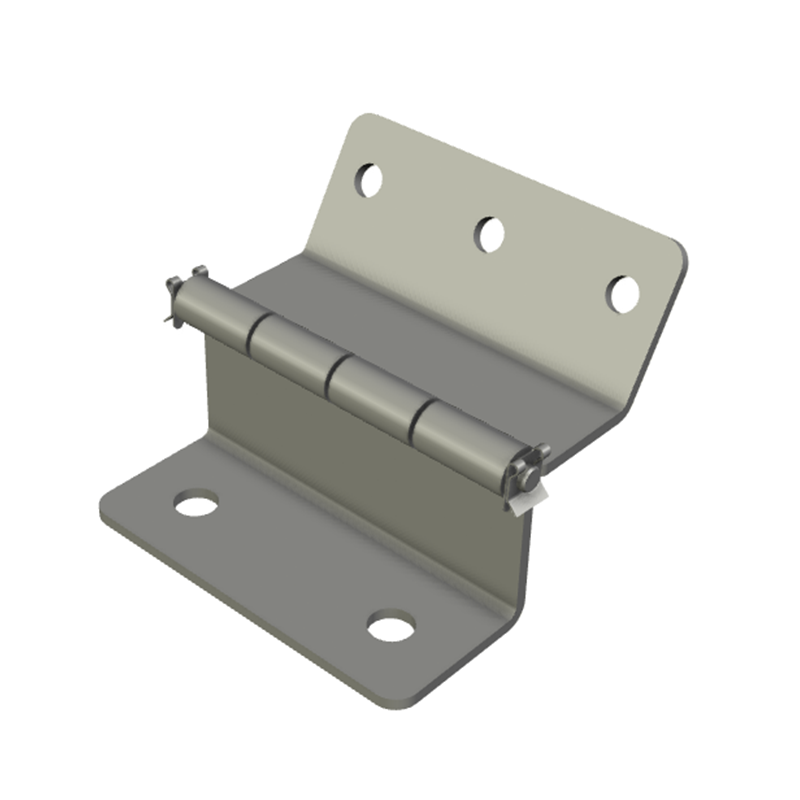

Butt hinge w/holes, stainless steel, with clips, L=82, B=108, T=2,5
MT105377
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 5 mm. Loose pin with clips. Hole diameters: Ø7mm & Ø9mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements
Pin type
Loose
Hole type
Simple
Material type
Stainless steel
Type
With holes
Pin diameter in mm
5
Height in mm
35
Length in mm
82
Thickness in mm
2.5
Long description
Butt hinge w/holes manufactured in stainless steel and designed with a pindiameter of 5 mm. Loose pin with clips. Hole diameters: Ø7mm & Ø9mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements
Product data
