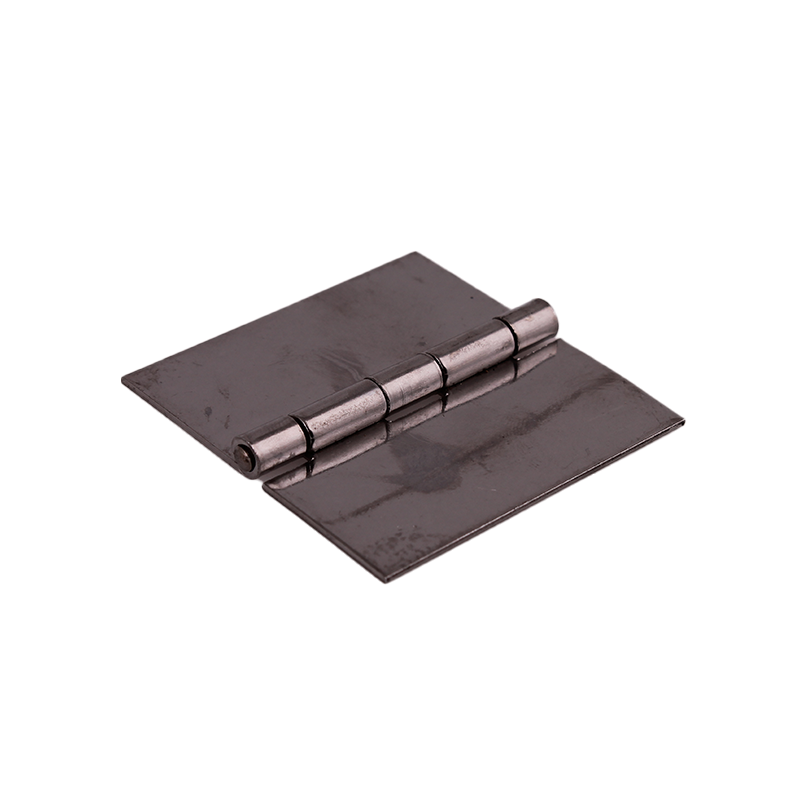

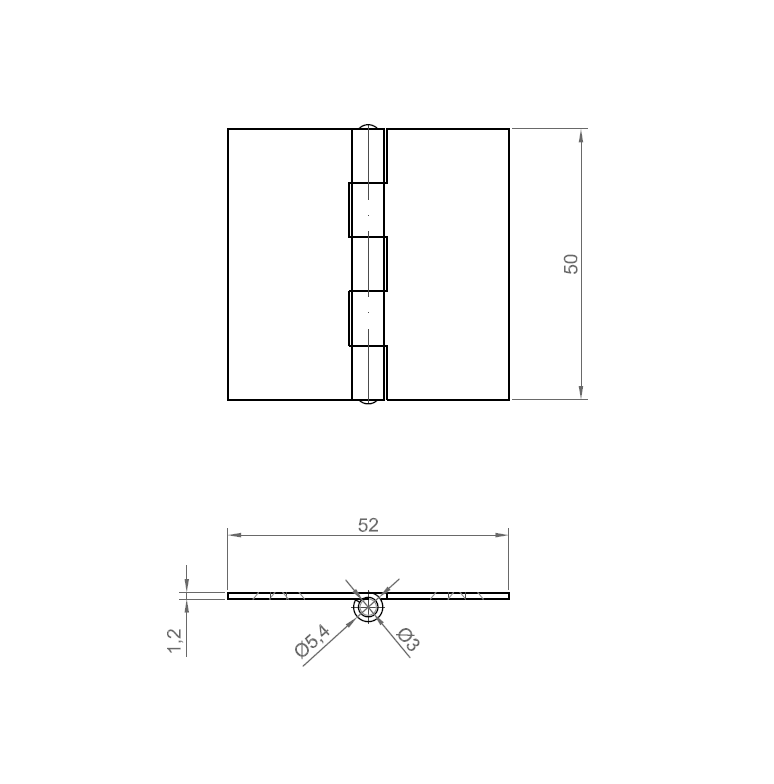

Butt hinge w/o holes, stainless steel, L=50, B=50, T=1
MT102706
Butt hinge w/o holes manufactured in stainless steel and designed with a pindiameter of 3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Material type
Stainless steel
Type
Without holes
Pin diameter in mm
3
Height in mm
5.4
Length in mm
50
Thickness in mm
1.2
Long description
Butt hinge w/o holes manufactured in stainless steel and designed with a pindiameter of 3 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
