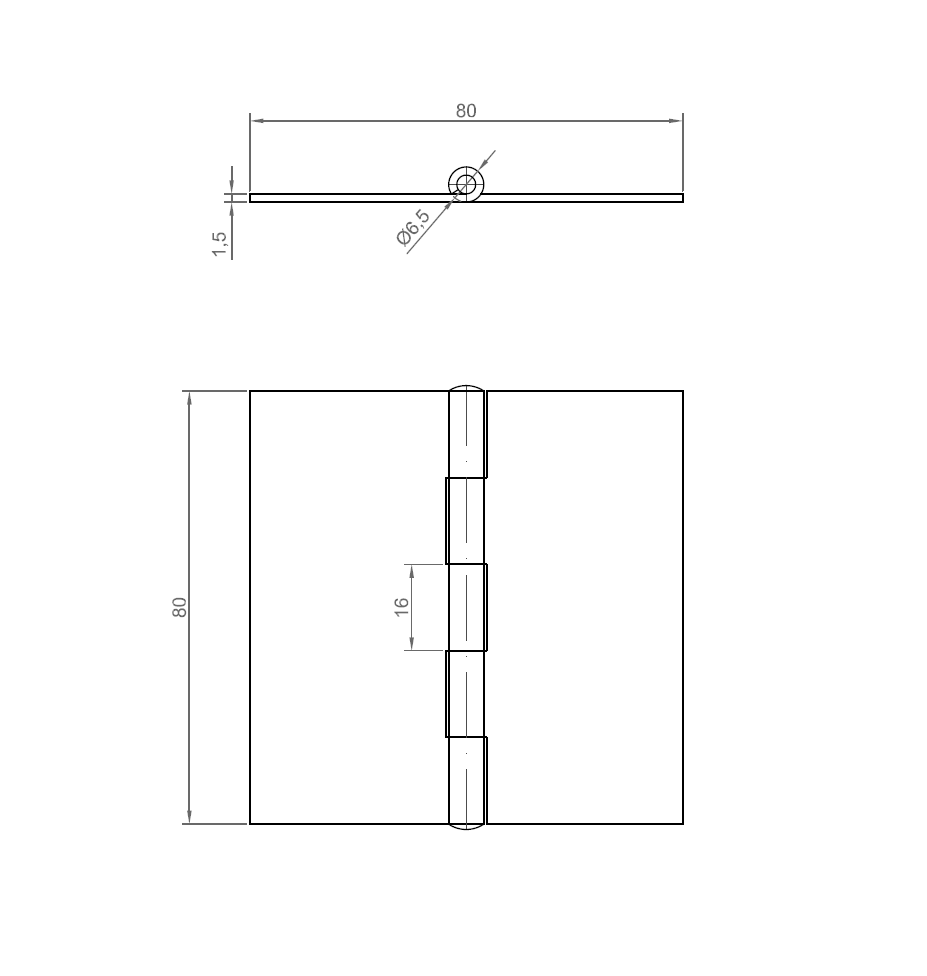

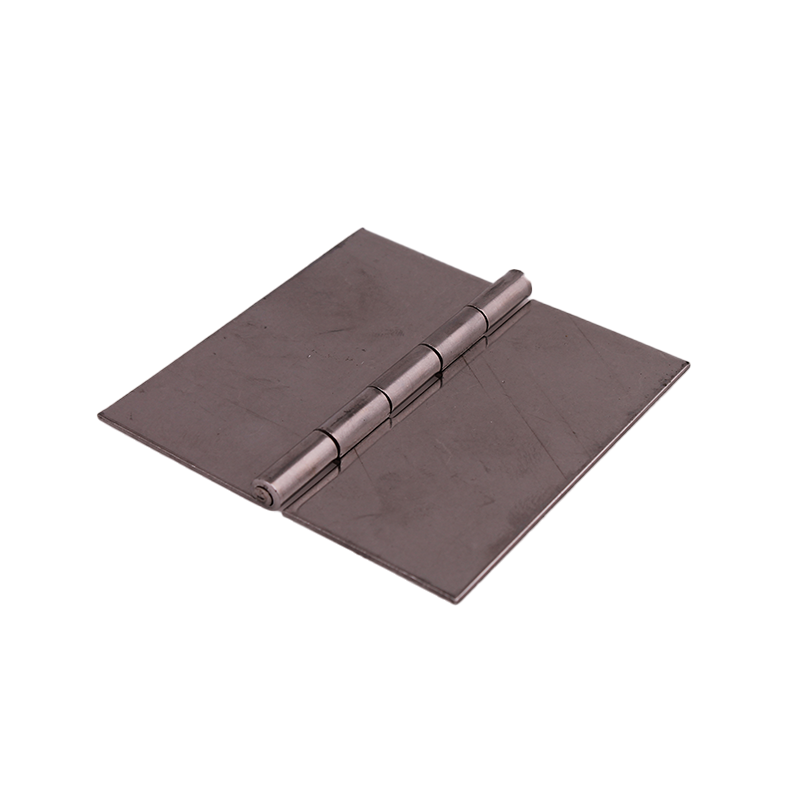

Butt hinge w/o holes, stainless steel, L=80, B=80, T=1,5
MT102708
Butt hinge w/o holes manufactured in stainless steel and designed with a pindiameter on 3,5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Material
AISI 304
Material type
Stainless steel
Type
Without holes
Pin diameter in mm
3.5
Height in mm
6.5
Length in mm
80
Thickness in mm
1.5
Net Weight (Kg)
0.07
HS Code
8302100090
Country of Origin
ES
Long description
Butt hinge w/o holes manufactured in stainless steel and designed with a pindiameter on 3,5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
