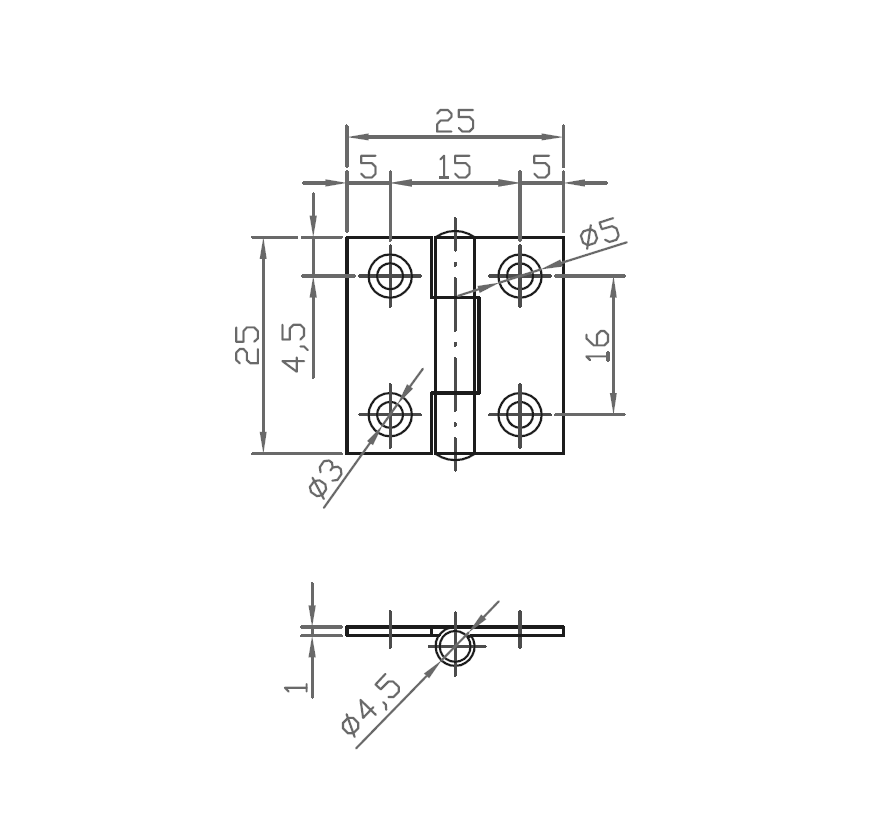

Butt hinge w/holes, steel, L=25, B=25, T=1
MT111607
Butt hinge w/holes manufactured in steel and designed with a pindiameter of mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material type
Steel
Surface finish
Electro zinc plated
Type
With holes
Pin diameter in mm
0
Hole diameter in mm
3
Height in mm
4.5
Length in mm
25
Thickness in mm
1
Nettovægt
0.065
Varekode
8302100090
Lande-/områdekode for oprindelse
ES
Long description
Butt hinge w/holes manufactured in steel and designed with a pindiameter of mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
