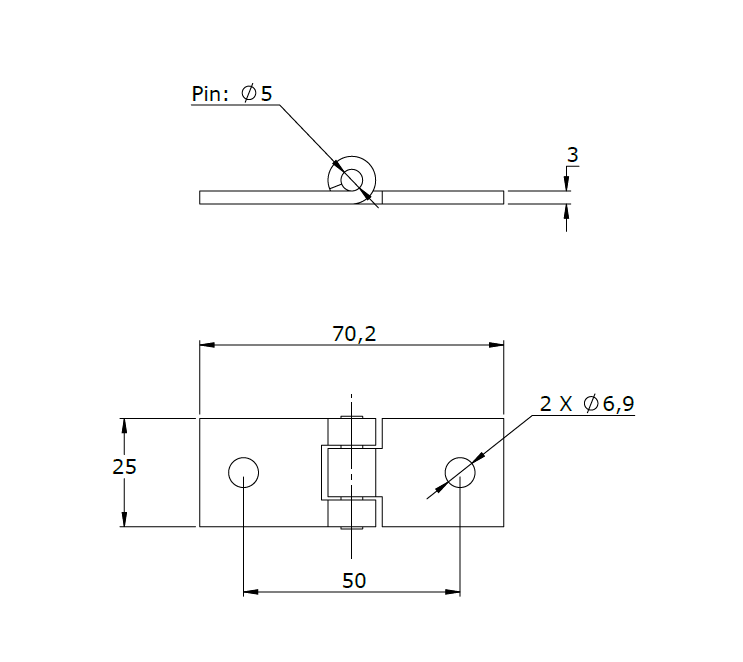

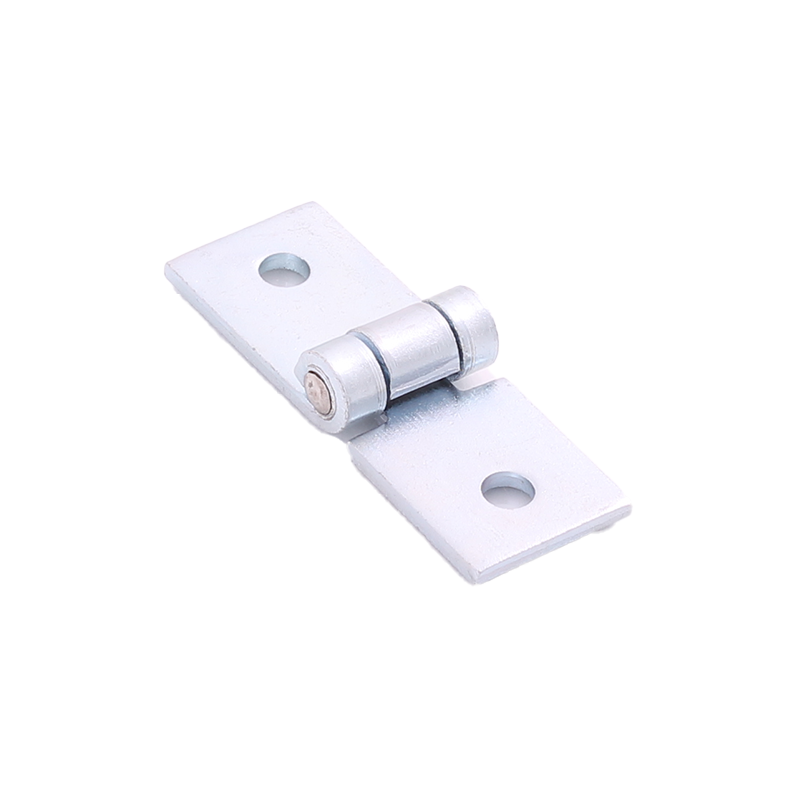

Butt hinge w/holes, steel, L=25, B=70, T=3
MT106803
Butt hinge w/holes manufactured in steel and designed with a pindiameter on 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Simple
Material type
Steel
Surface finish
Electro zinc plated
Type
With holes
Pin diameter in mm
5
Hole diameter in mm
6.9
Height in mm
11
Length in mm
25
Thickness in mm
3
Long description
Butt hinge w/holes manufactured in steel and designed with a pindiameter on 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Product data
