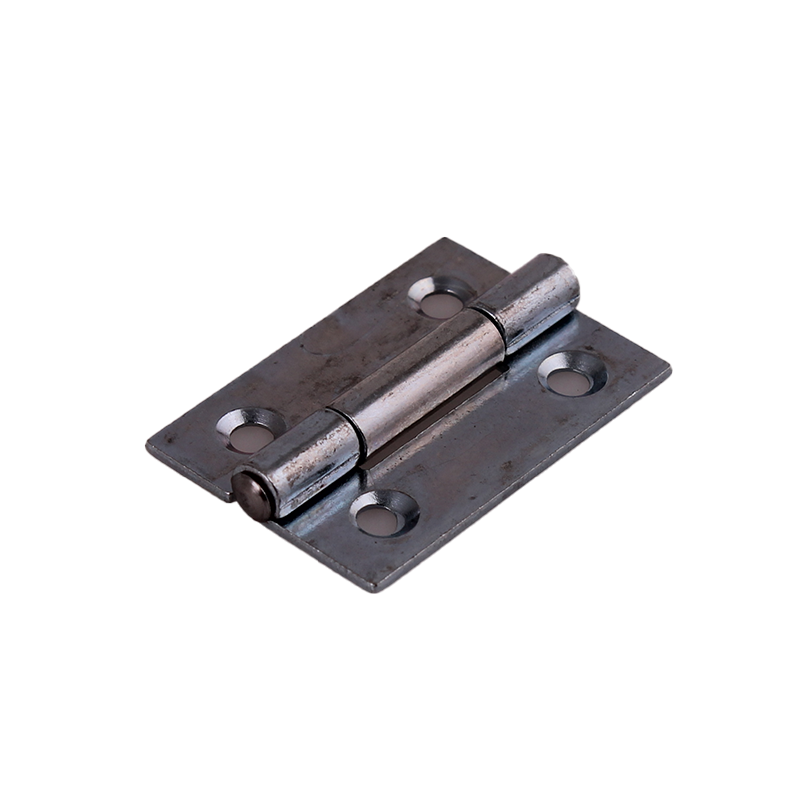

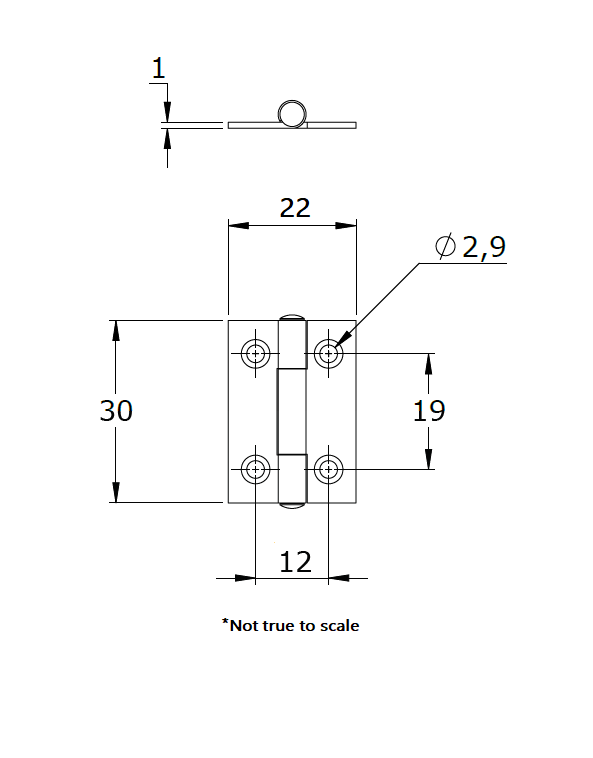

Butt hinge w/holes, steel, L=30, B=22, T=1
MT110238
Butt hinge w/holes manufactured in steel and designed with a pindiameter on 2 mm.
Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Hole type
Countersunk
Material type
Steel
Surface finish
Electro zinc plated
Type
With holes
Pin diameter in mm
2
Hole diameter in mm
2.9
Height in mm
4.2
Length in mm
30
Thickness in mm
1
Long description
Butt hinge w/holes manufactured in steel and designed with a pindiameter on 2 mm.
Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Complies with DIN 7954A.
Special products can be delivered on request, if the products in the standard range do not meet the requirements.
