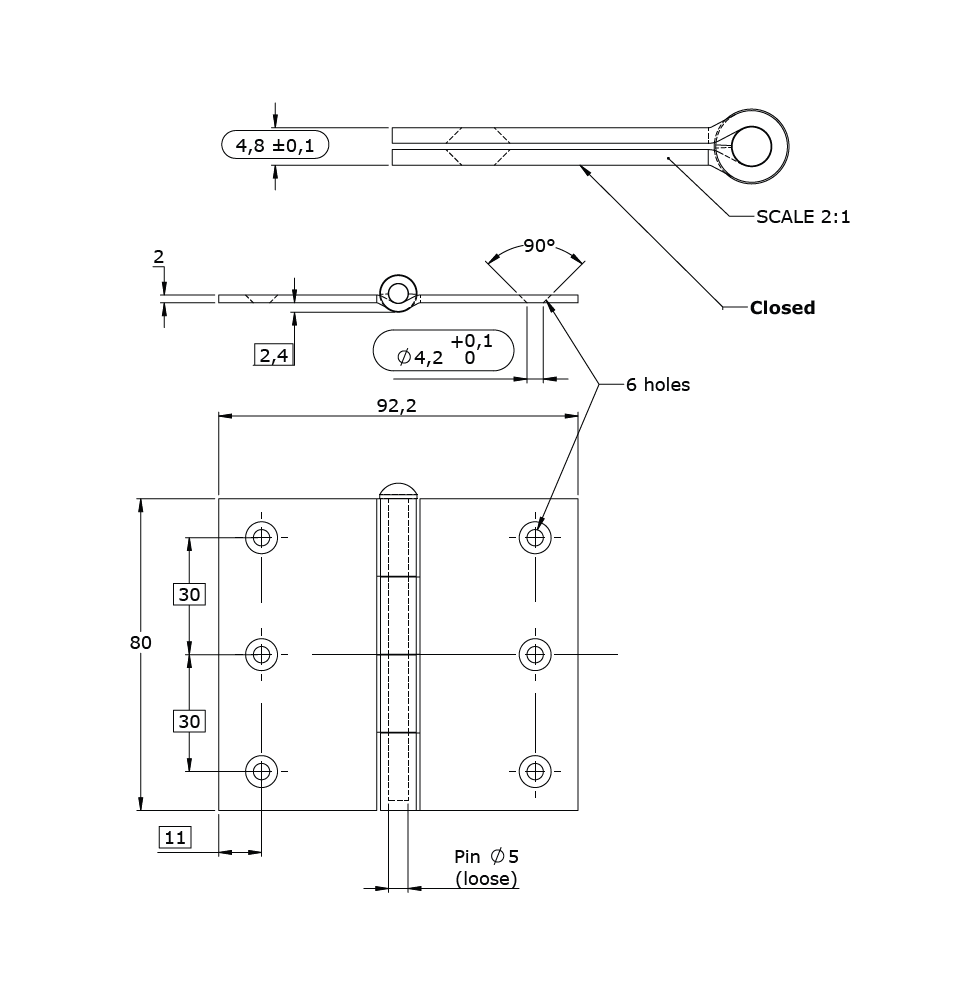

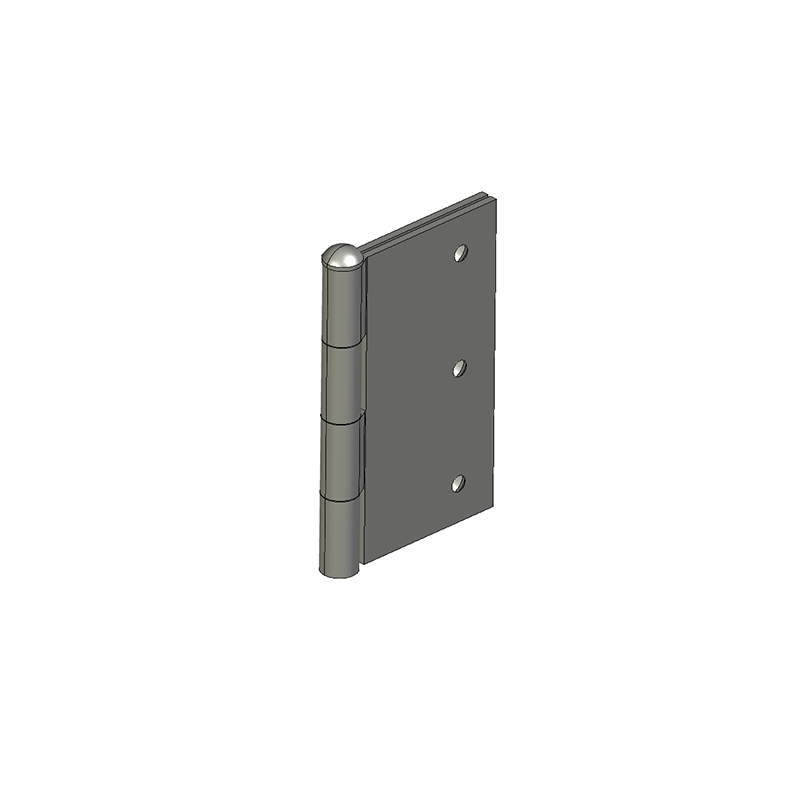

Butt hinge w/holes, steel, L=80, B=92,2, T=2
MT110404
Butt hinge w/holes manufactured in steel and designed with a pindiameter of 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Pin type
Loose
Hole type
Countersunk
Material type
Steel
Surface finish
Electro zinc plated
Type
With holes
Pin diameter in mm
5
Hole diameter in mm
4.2
Height in mm
9.2
Length in mm
80
Thickness in mm
2
Long description
Butt hinge w/holes manufactured in steel and designed with a pindiameter of 5 mm. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
