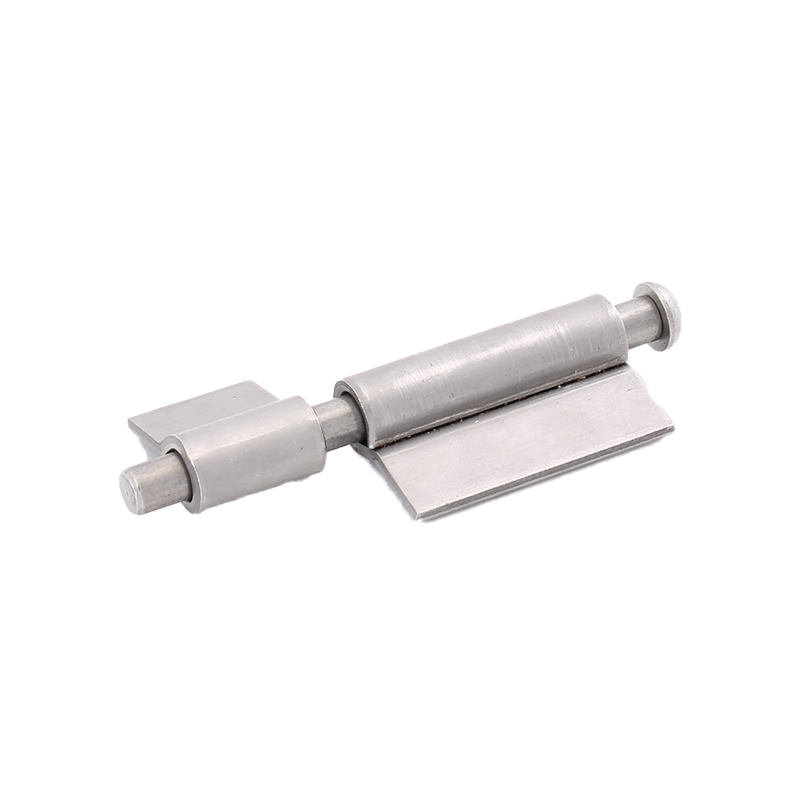

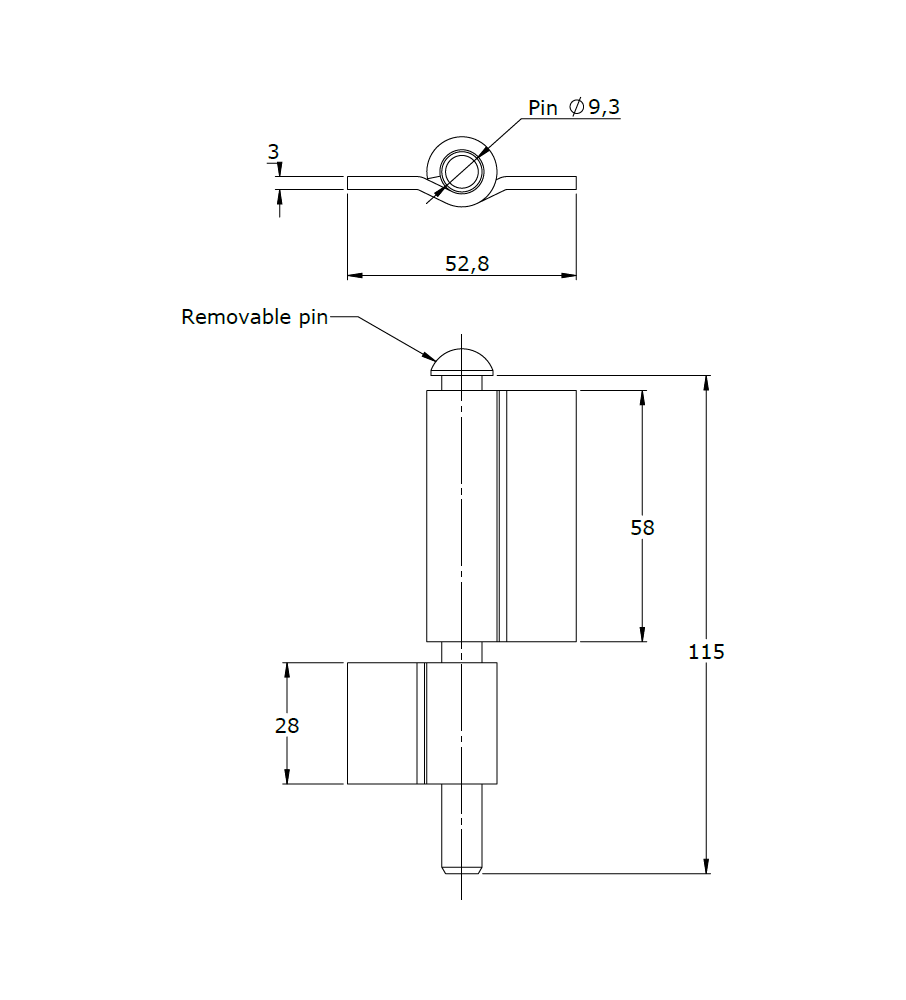

Butt hinge w/o holes, steel, L=115, B=52,8, T=3
MT110041
Butt hinge w/o holes manufactured in steel and designed with a pindiameter of 9,3 mm. Loose pin. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Pin type
Loose
Material type
Steel
Surface finish
Untreated
Type
Without holes
Pin diameter in mm
9.3
Height in mm
15.3
Length in mm
115
Thickness in mm
3
Long description
Butt hinge w/o holes manufactured in steel and designed with a pindiameter of 9,3 mm. Loose pin. Special products can be delivered on request, if the products in the standard range do not meet the requirements.
Product data
