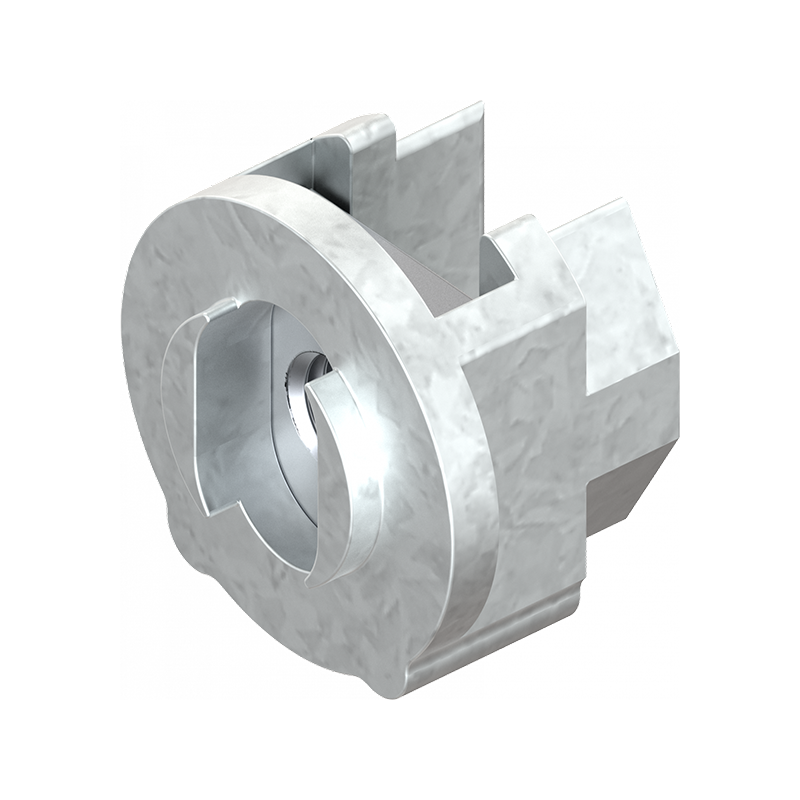

2D-Nut for 2D+ adjustable cabinet hinges, die-cast zinc, M6
MT102390

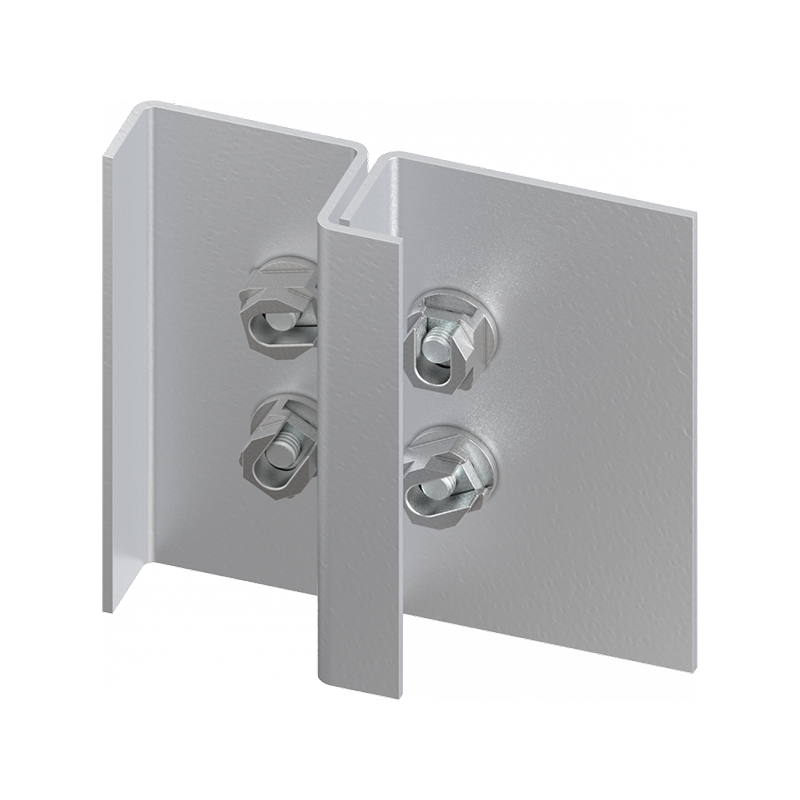

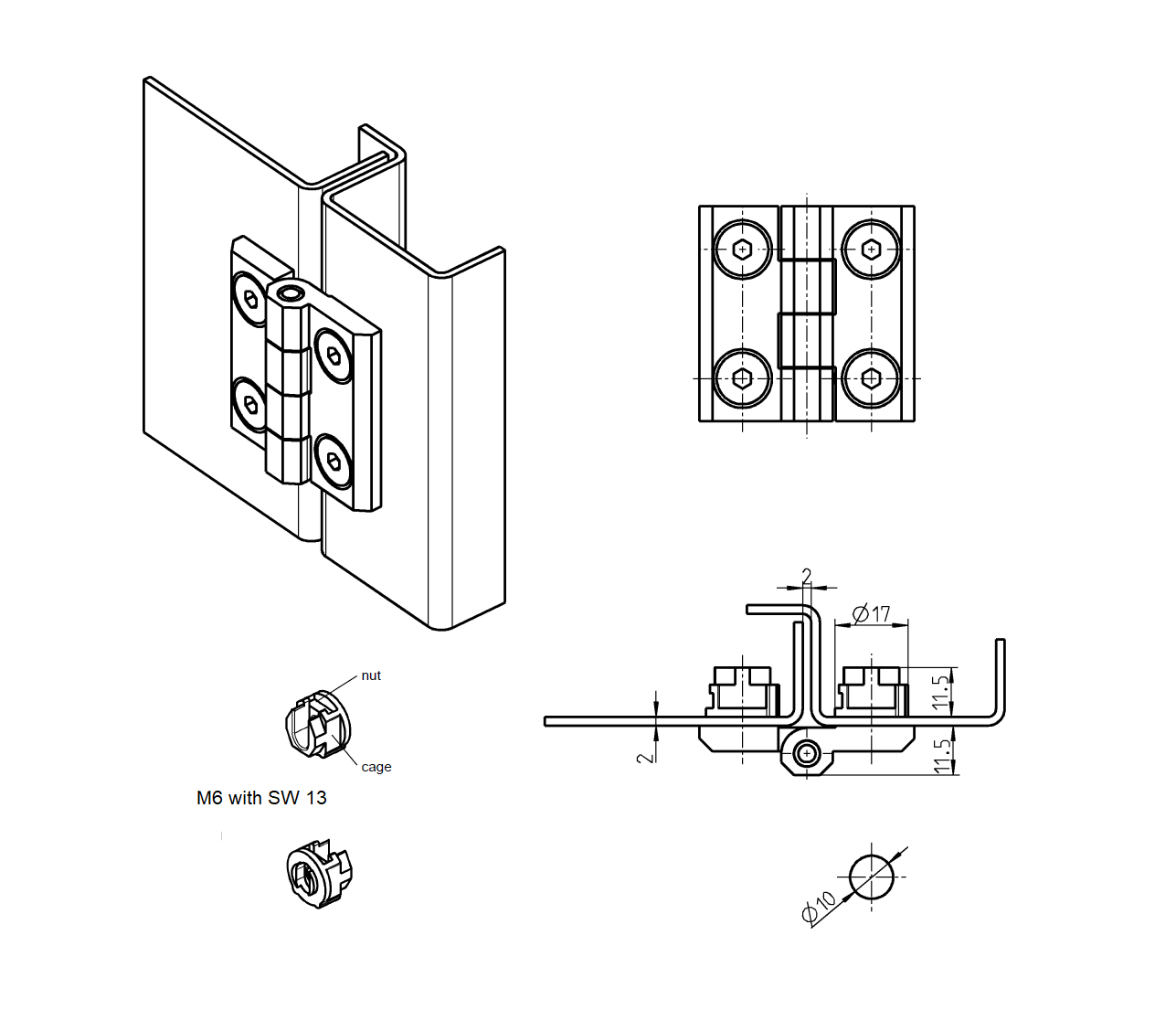

2D-Nut in die-cast zinc for 2D+ adjustable cabinet hinges. +/- 2mm adjustable in two directions. Thread size is M6. Wrench size is SW 13. Material is a combination of die-cast zinc and electro zinc plated steel. Special products can be delivered on request, if the standard range does not cover the requirements.
Adjustable
2D+
Material type
Die-cast zinc
Surface finish
Untreated
Type
2D-Nut
Height in mm
11.5
Length in mm
17
Long description
2D-Nut in die-cast zinc for 2D+ adjustable cabinet hinges. +/- 2mm adjustable in two directions. Thread size is M6. Wrench size is SW 13. Material is a combination of die-cast zinc and electro zinc plated steel. Special products can be delivered on request, if the standard range does not cover the requirements.
