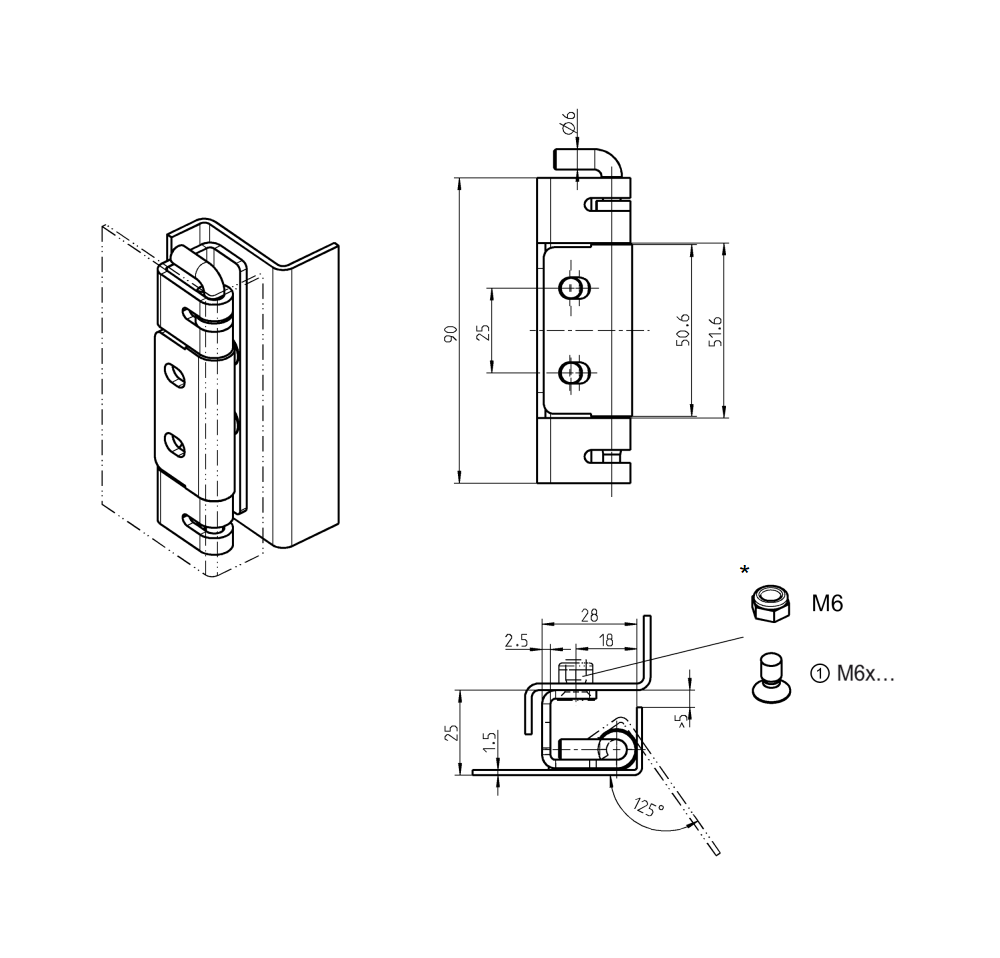

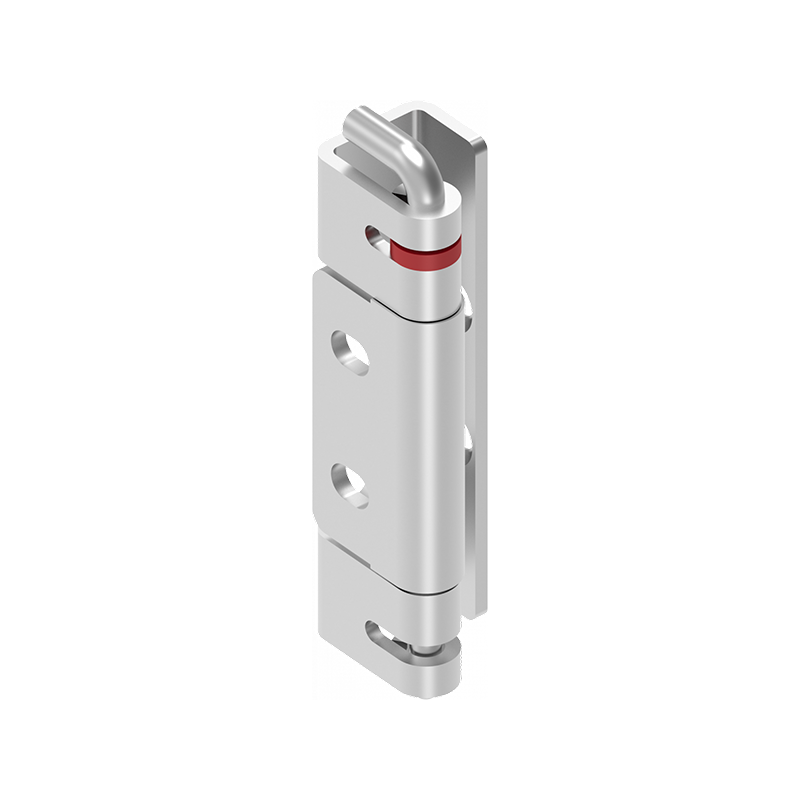

Cabinet hinge, acid proof steel, flush door - concealed, loose pin, L=90, B=28, H=25
MT102036

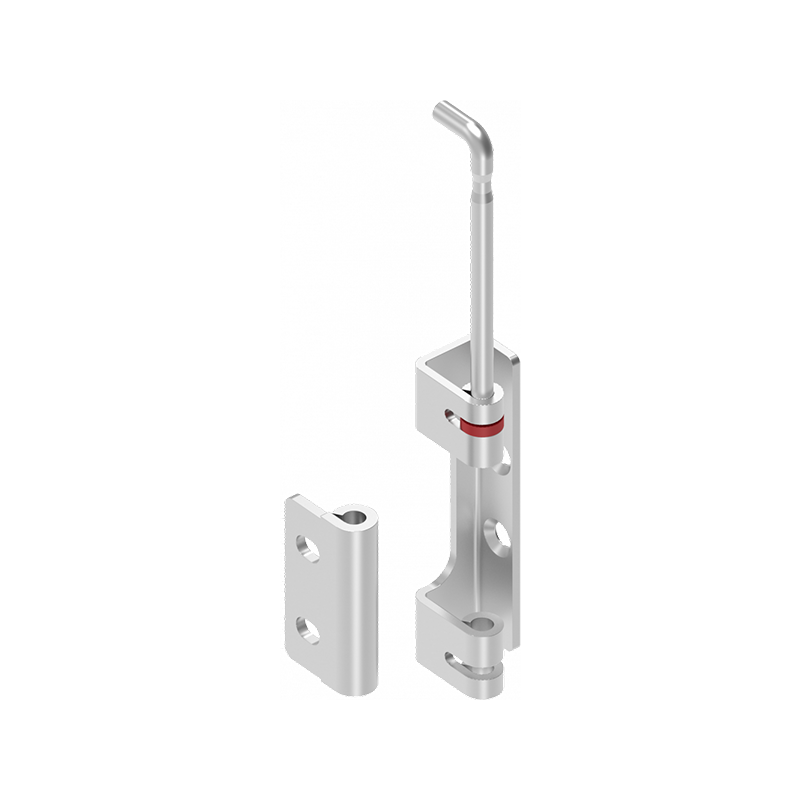

Cabinet Hinge in acid proof steel for mounting as flush door - concealed. The hinge has a loose pin. Material is AISI 316Ti.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Acid proof Stainless Steel
Type
Flush door - concealed
Height in mm
25
Length in mm
90
Plate thickness max.
1.5
Thickness in mm
0
Opening angle
125
Long description
Cabinet Hinge in acid proof steel for mounting as flush door - concealed. The hinge has a loose pin. Material is AISI 316Ti.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
