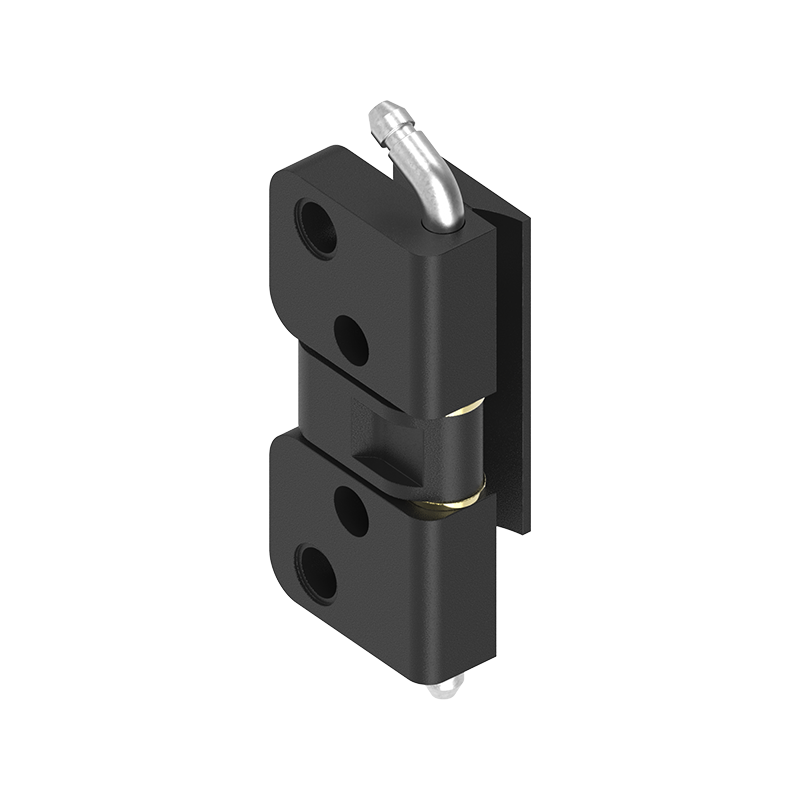

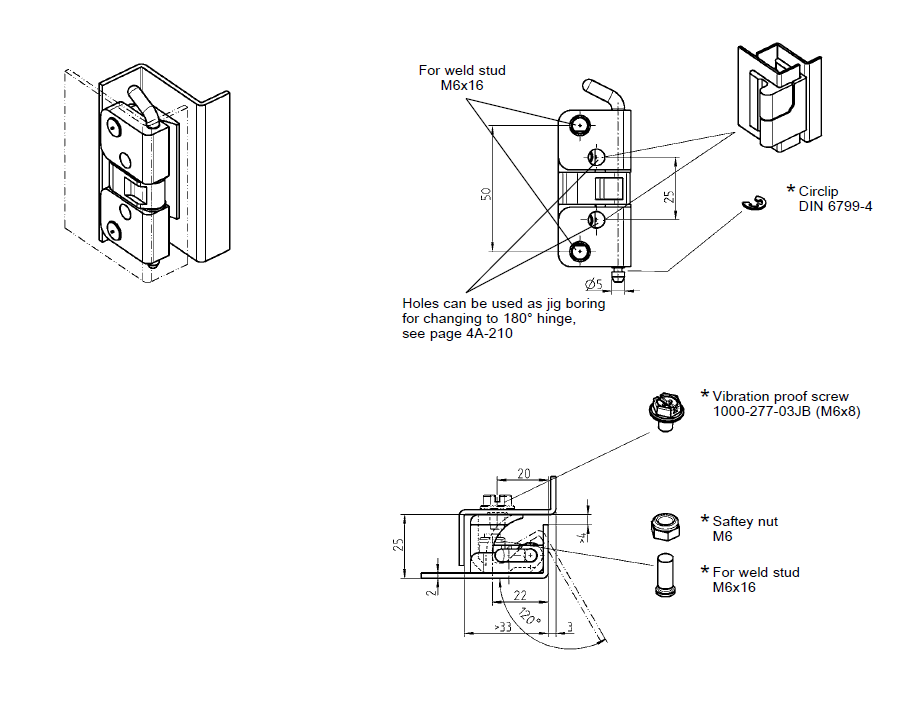

Cabinet Hinge, die-cast zinc, flush door - concealed, loose pin, L=63, B=29, H=25
MT103132
Cabinet Hinge in die-cast zinc for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Steel
Pin type
Loose
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - concealed
Height in mm
25
Length in mm
63
Plate thickness max.
2
Thickness in mm
0
Opening angle
120
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
