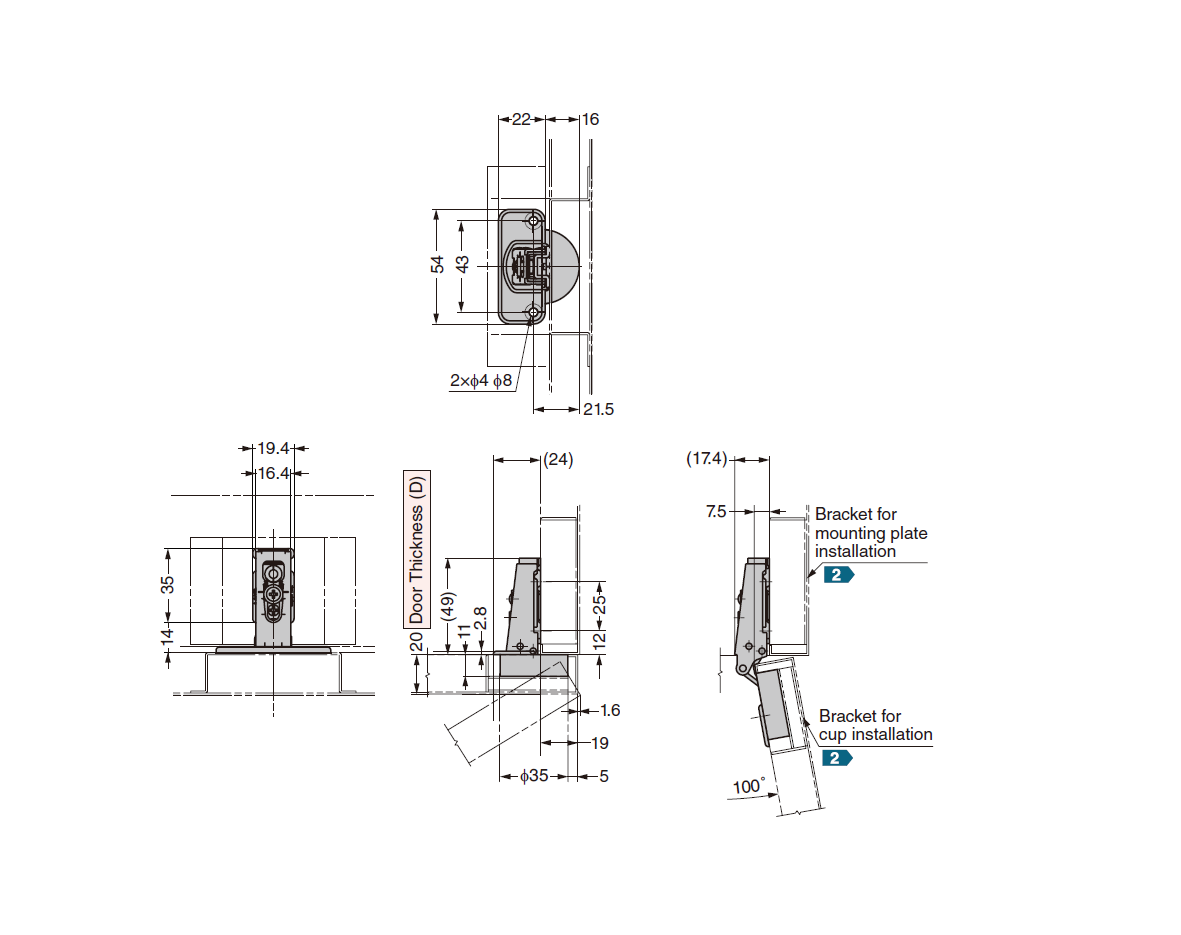

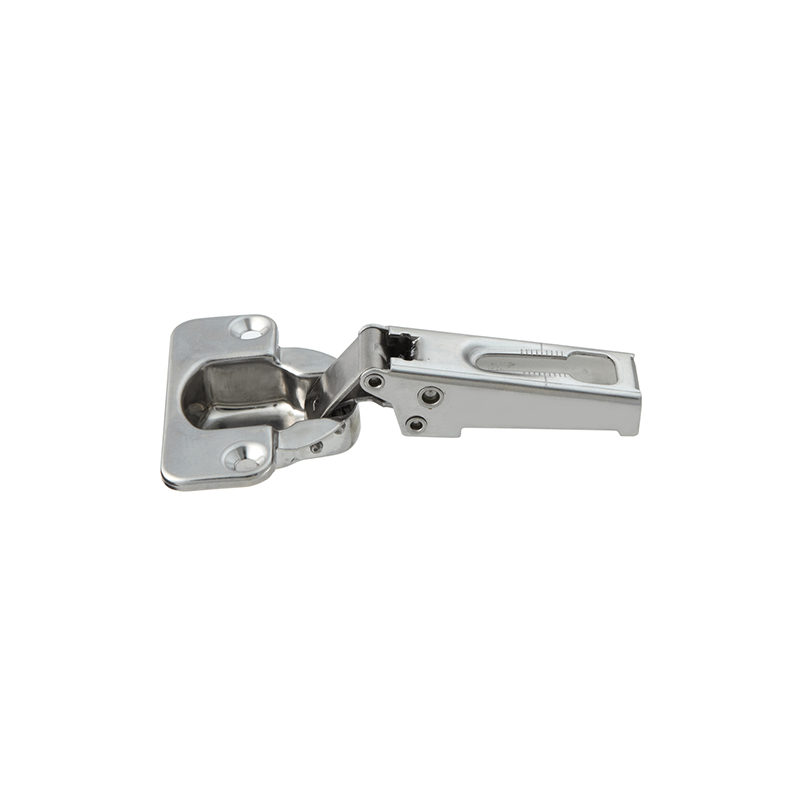

Cabinet hinge, stainless steel, flush door - concealed, fixed pin, L=54, B=94, H=17,4
MT101599
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a fixed pin. For 15-20mm door thickness. Self-closing. RoHS 2 approved. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Stainless steel
Surface finish
Polished
Type
Flush door - concealed
Height in mm
17.4
Length in mm
54
Plate thickness min.
15
Plate thickness max.
20
Thickness in mm
0
Opening angle
100
Long description
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a fixed pin. For 15-20mm door thickness. Self-closing. RoHS 2 approved. Special products can be delivered on request, if the standard range does not cover the requirements.
