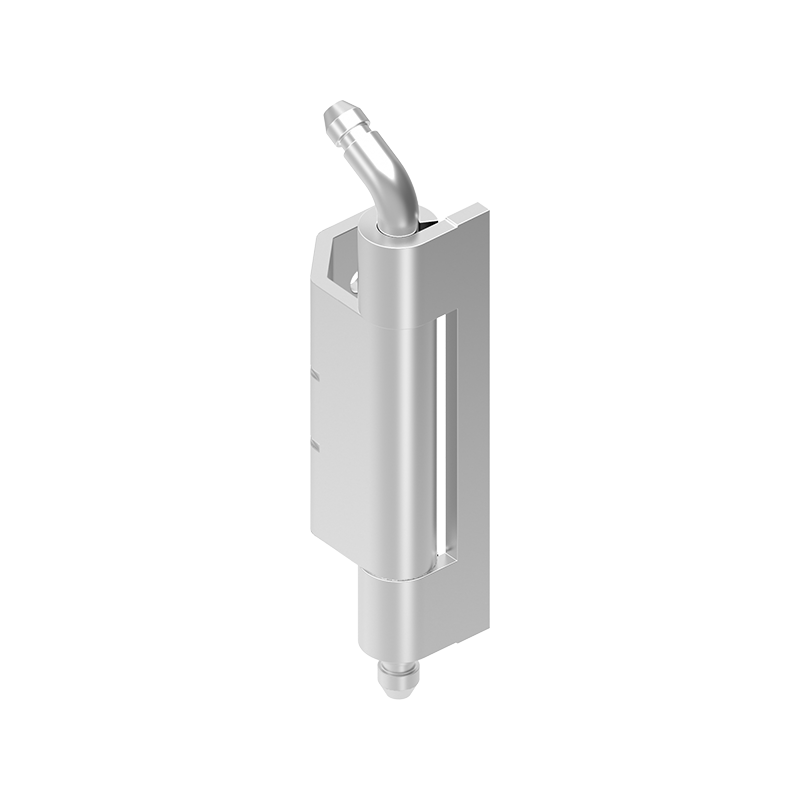

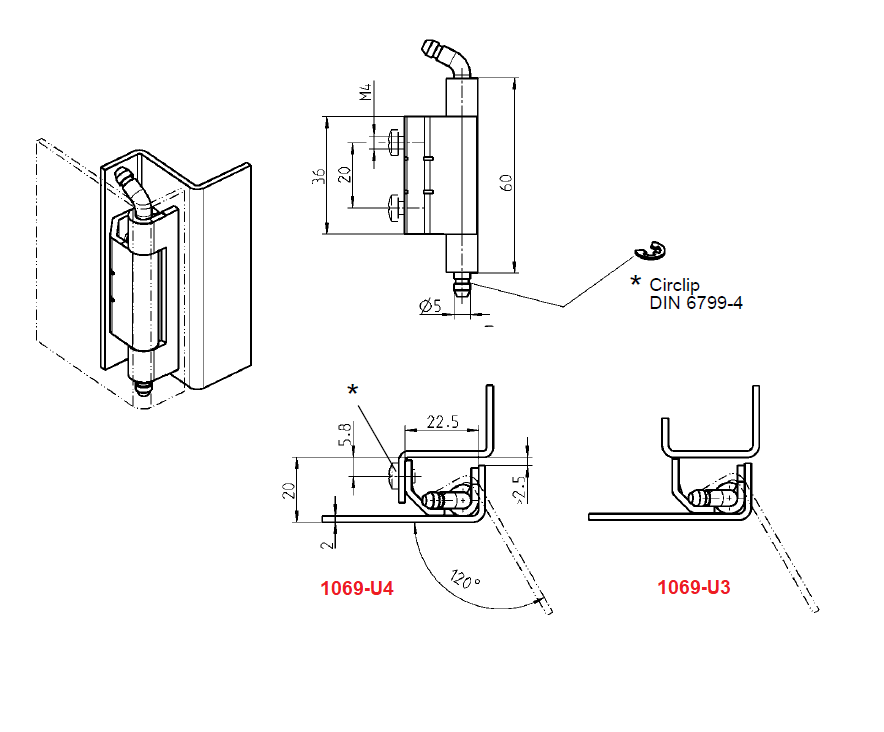

Cabinet Hinge, stainless steel, flush door - concealed, loose pin, L=60, B=22,5, H=20
MT102438
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Stainless steel
Type
Flush door - concealed
Height in mm
20
Length in mm
60
Offset height in mm
0
Thickness in mm
0
Opening angle
120
Long description
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
