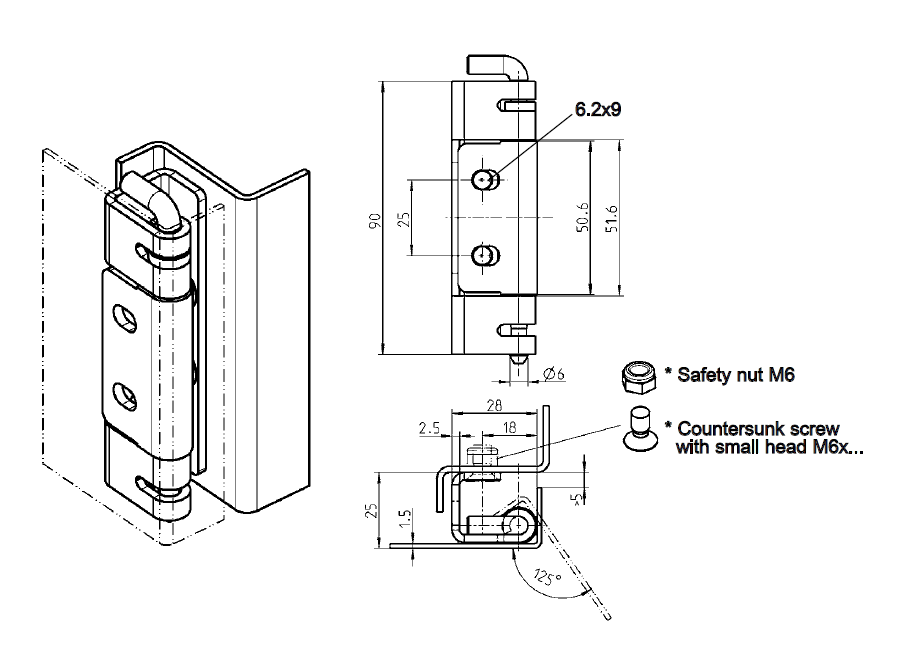

Cabinet Hinge, stainless steel, flush door - concealed, loose pin, L=90, B=28, H=25
MT102031
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a loose pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Adjustable
2D+
Material type
Stainless steel
Type
Flush door - concealed
Height in mm
25
Length i mm
90
Plate thickness, max.
1.5
Thickness in mm
0
Opening angle
125
Long description
Cabinet Hinge in stainless steel for mounting as flush door - concealed. The hinge has a loose pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
