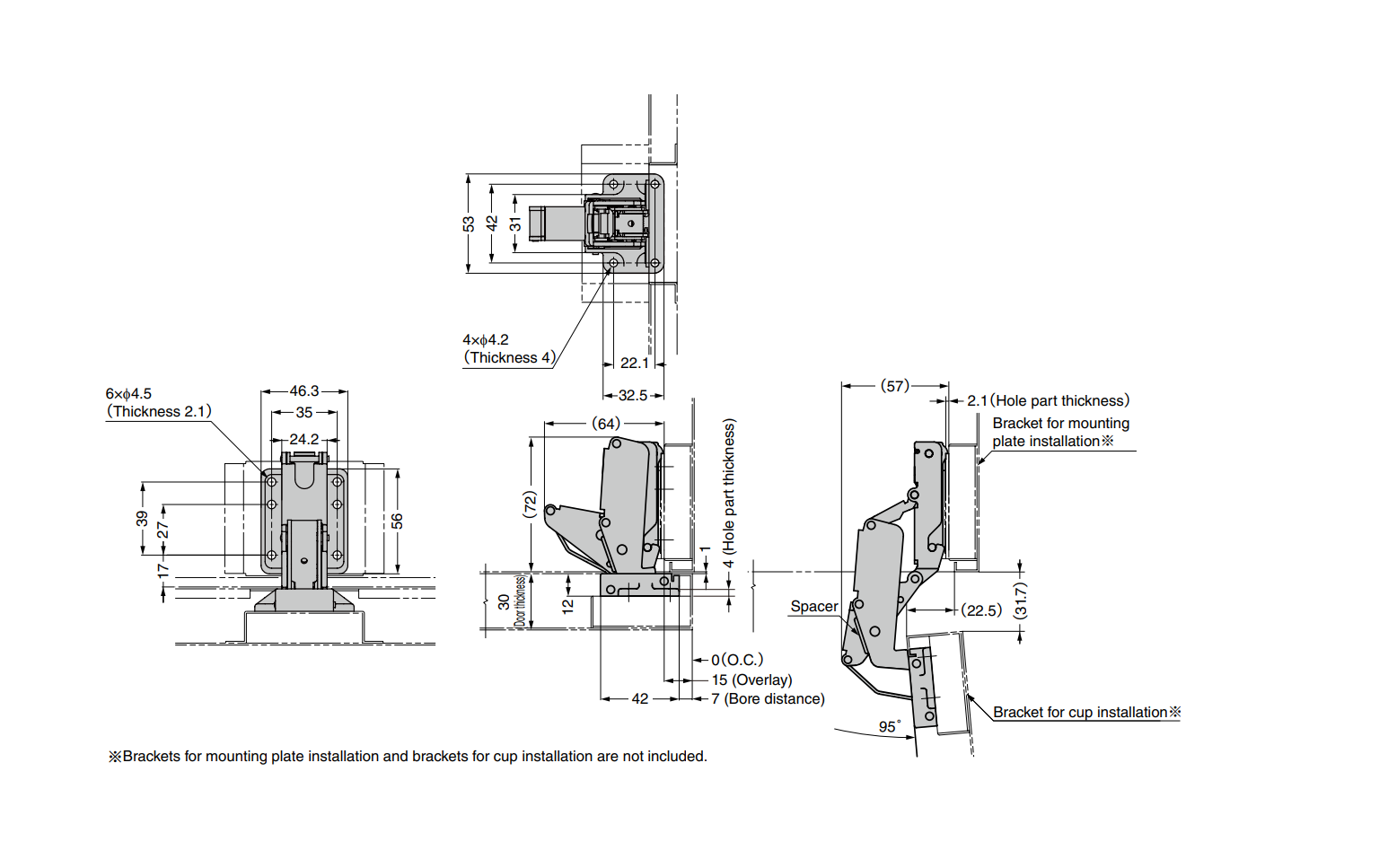

Cabinet hinge, steel, flush door - concealed, fixed pin, L=53, B=152, H=57
MT110113
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surface treatment of the cup is die-cast zinc and nickel-plated.
RoHS 2 approved. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Steel
Surface finish
Nickel-plated
Type
Flush door - concealed
Height in mm
57
Length in mm
53
Thickness in mm
0
Opening angle
95
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surface treatment of the cup is die-cast zinc and nickel-plated.
RoHS 2 approved. Special products can be delivered on request, if the standard range does not cover the requirements.
Product data
