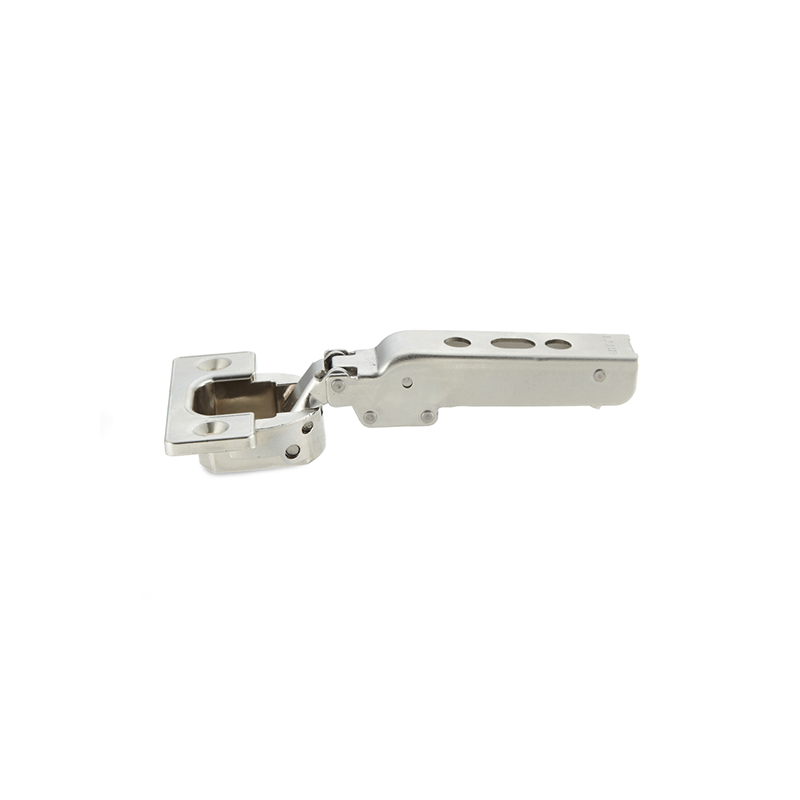

Cabinet hinge, steel, flush door - concealed, fixed pin, L=65, B=139, H=25
MT110163
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surface treatment of the cup is die-cast zinc and nickel-plated.
For 18-30mm door thickness. RoHS 2 approved.
Adjustable in three directions. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Adjustable
3D
Material type
Steel
Surface finish
Nickel-plated
Type
Flush door - concealed
Height in mm
25
Length in mm
65
Plate thickness min.
18
Plate thickness max.
30
Thickness in mm
0
Opening angle
95
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surface treatment of the cup is die-cast zinc and nickel-plated.
For 18-30mm door thickness. RoHS 2 approved.
Adjustable in three directions. Special products can be delivered on request, if the standard range does not cover the requirements.
