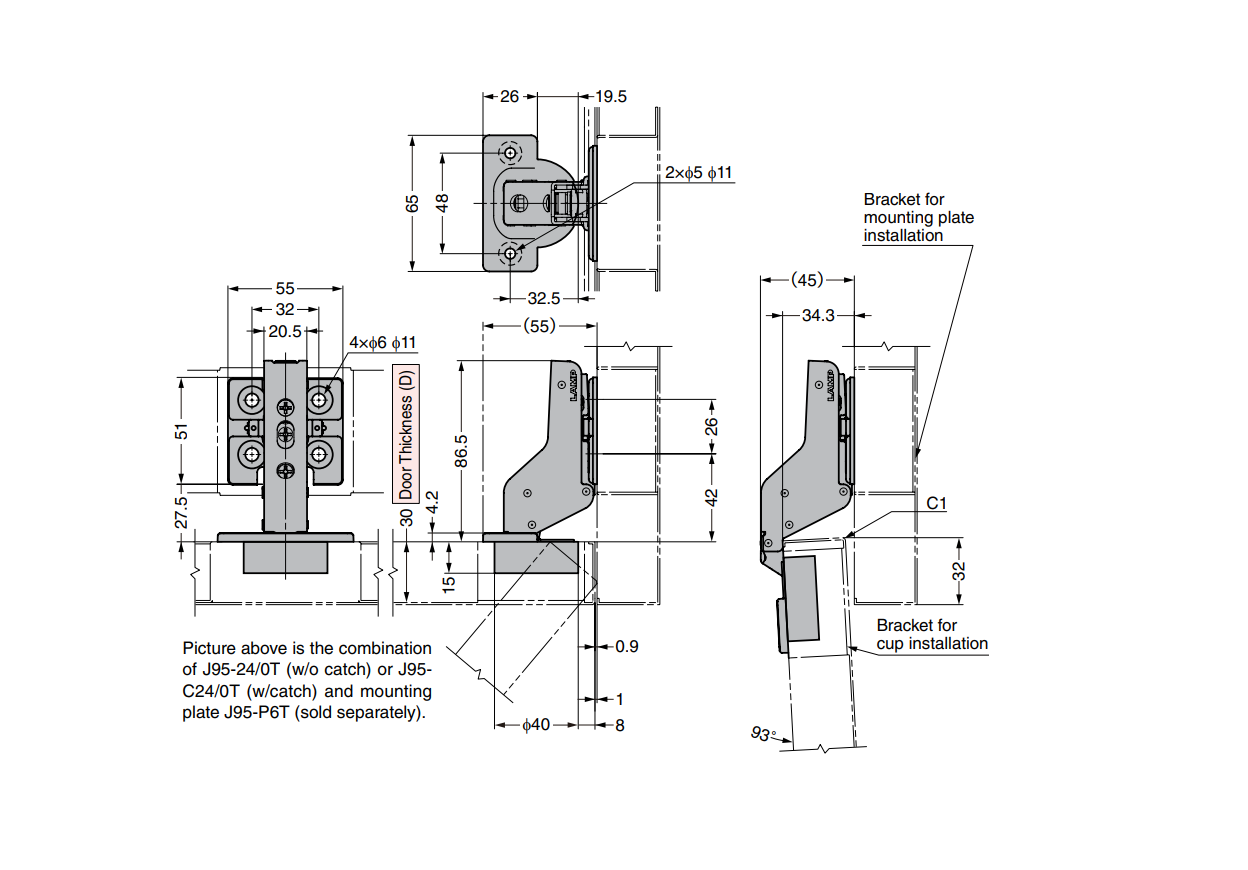

Cabinet Hinge, steel, flush door - concealed, fixed pin, L=65, B=141,5, H=45
MT110162
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surfface treatment of the cup is die-cast zinc and nickle-plated. Suitable for door thickness of 18-30mm. RoHS 2 approved. Adjustable in 3 directions. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Adjustable
3D
Material type
Steel
Surface finish
Nickel-plated
Type
Flush door - concealed
Height in mm
45
Length in mm
65
Plate thickness min.
18
Plate thickness max.
30
Thickness in mm
0
Opening angle
93
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a fixed pin. Material and surfface treatment of the cup is die-cast zinc and nickle-plated. Suitable for door thickness of 18-30mm. RoHS 2 approved. Adjustable in 3 directions. Special products can be delivered on request, if the standard range does not cover the requirements.
Product data
