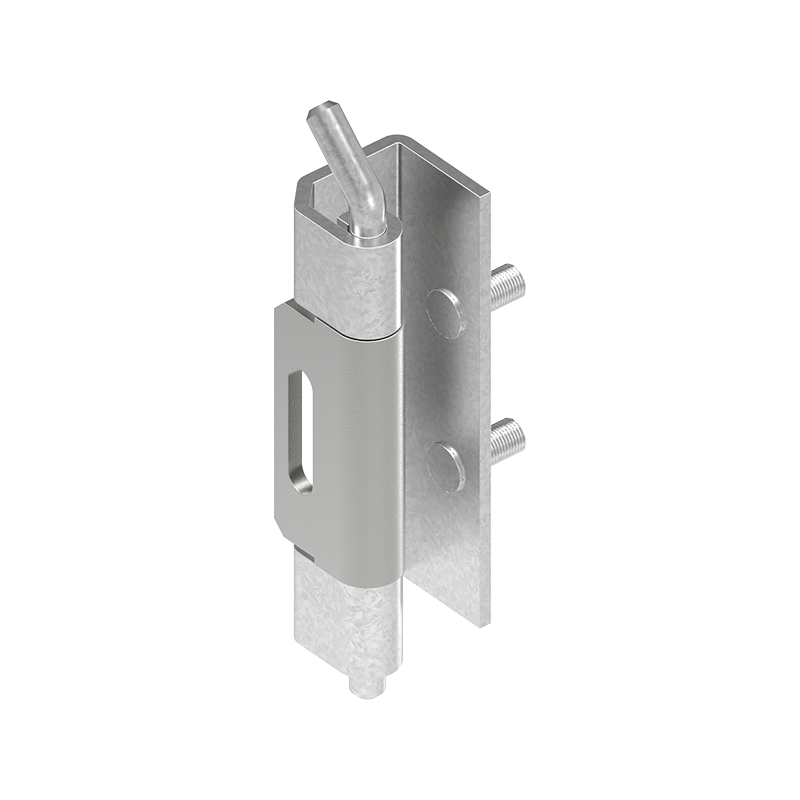

Cabinet Hinge, steel, flush door - concealed, loose pin, L=70, B=20, H=25
MT102441
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Material type
Steel
Surface finish
Electro zinc plated and untreated
Type
Flush door - concealed
Height in mm
25
Length in mm
70
Offset height in mm
0
Thickness in mm
0
Opening angle
135
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
