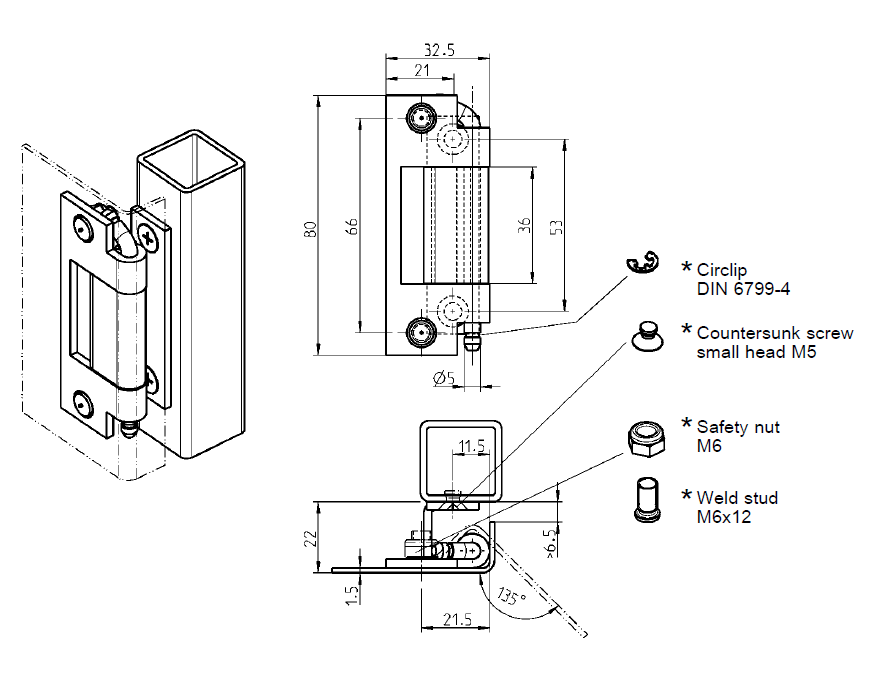

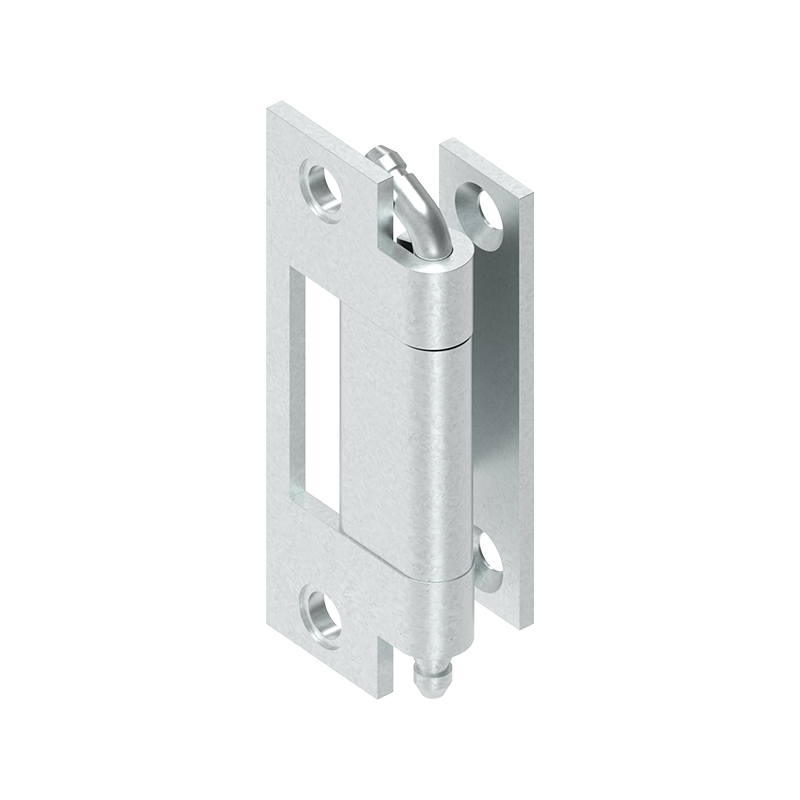

Cabinet Hinge, steel, flush door - concealed, loose pin, L=80, B=32,5, H=22
MT102044
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Steel
Surface finish
Electro zinc plated
Type
Flush door - concealed
Height in mm
22
Length in mm
80
Plate thickness max.
1.5
Thickness in mm
0
Opening angle
135
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
