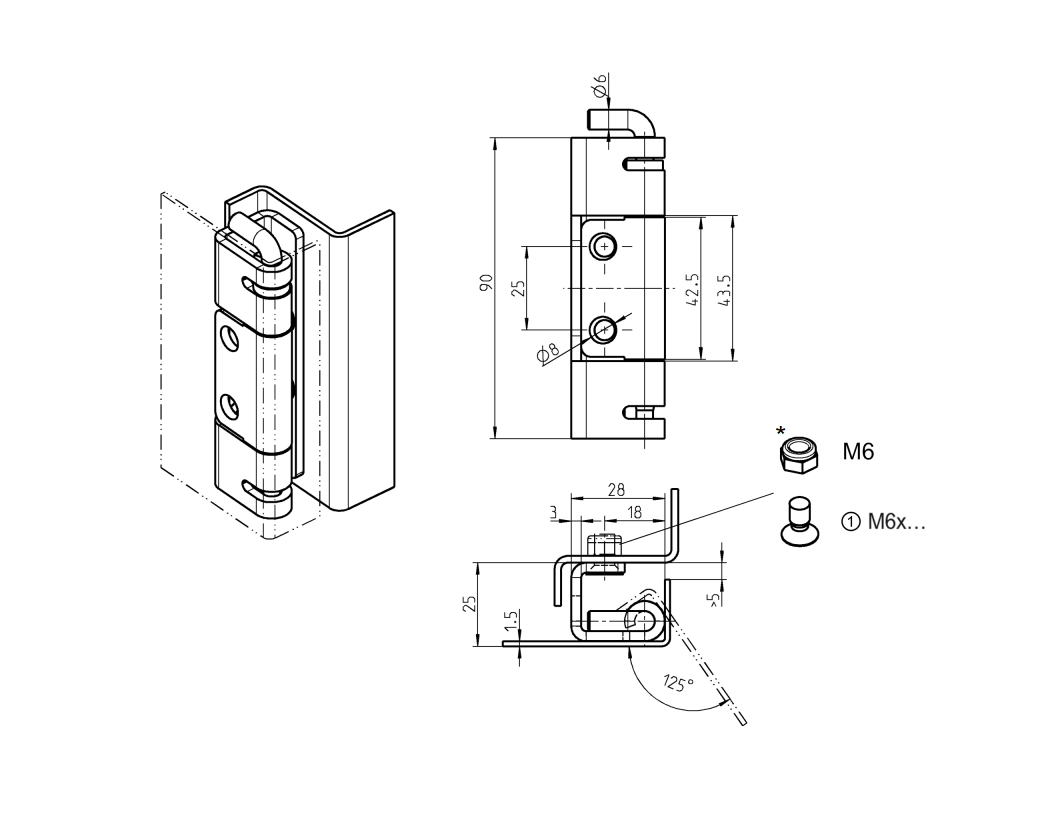

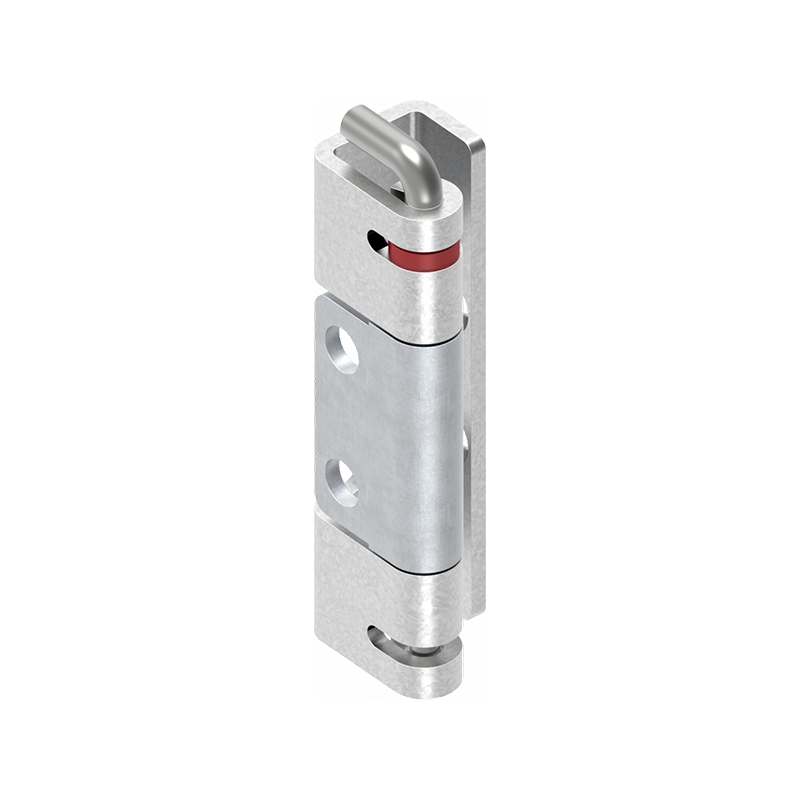

Cabinet hinge, steel, flush door - concealed, loose pin, L=90, B=28, H=25
MT102030

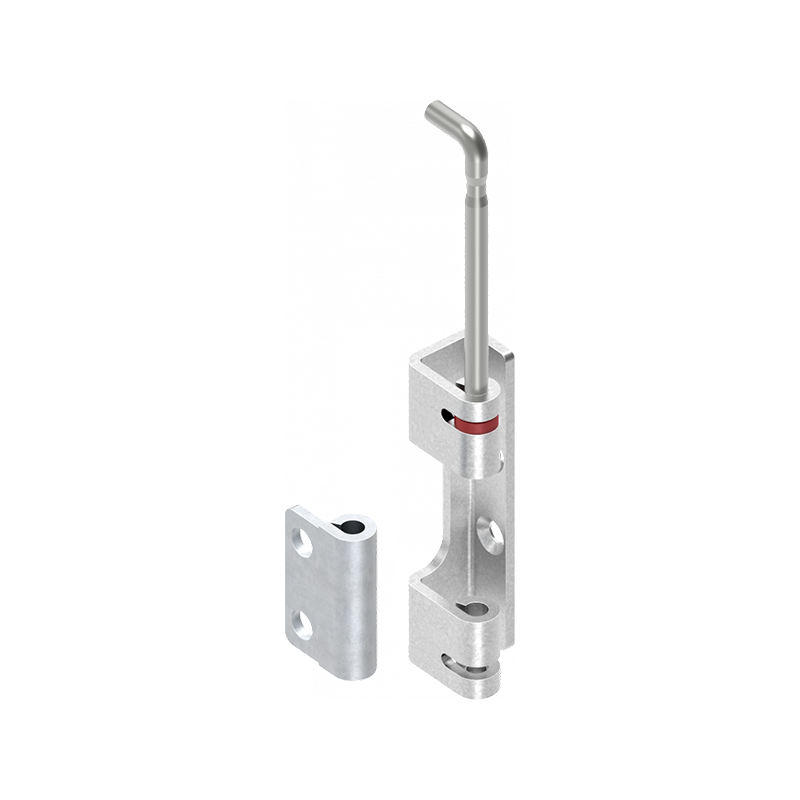

Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Adjustable
2D+
Material type
Steel
Surface finish
Electro zinc plated and untreated
Type
Flush door - concealed
Height in mm
25
Length in mm
90
Plate thickness max.
1.5
Thickness in mm
0
Opening angle
125
Long description
Cabinet Hinge in steel for mounting as flush door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated.
2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
