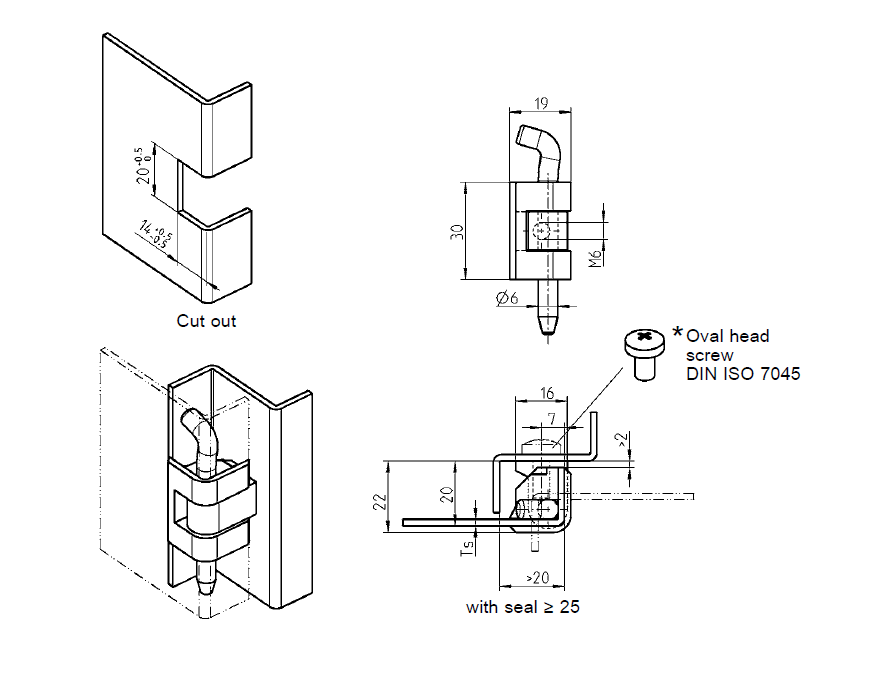

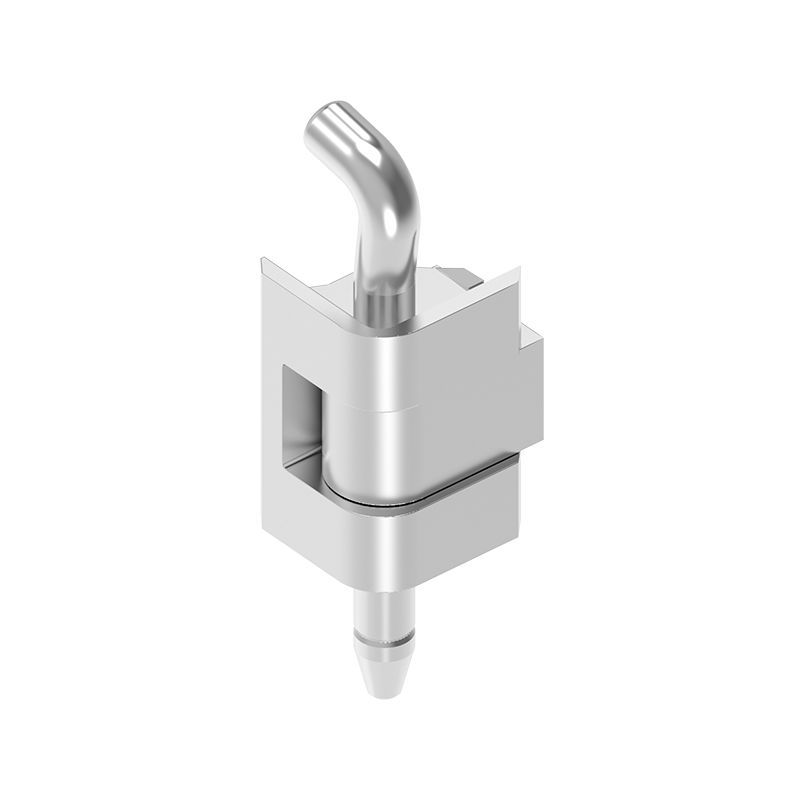

Cabinet Hinge, acid proof stainless steel, flush door - visible, loose pin, L=30, B=19, H=22
MT103105
Cabinet Hinge in acid proof stainless steel for mounting as flush door - visible. The hinge has a loose pin. Door gauge from 1,5 - 2 mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Loose
Material type
Acid proof Stainless Steel
Type
Flush door - visible
Height in mm
22
Length in mm
30
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof stainless steel for mounting as flush door - visible. The hinge has a loose pin. Door gauge from 1,5 - 2 mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
