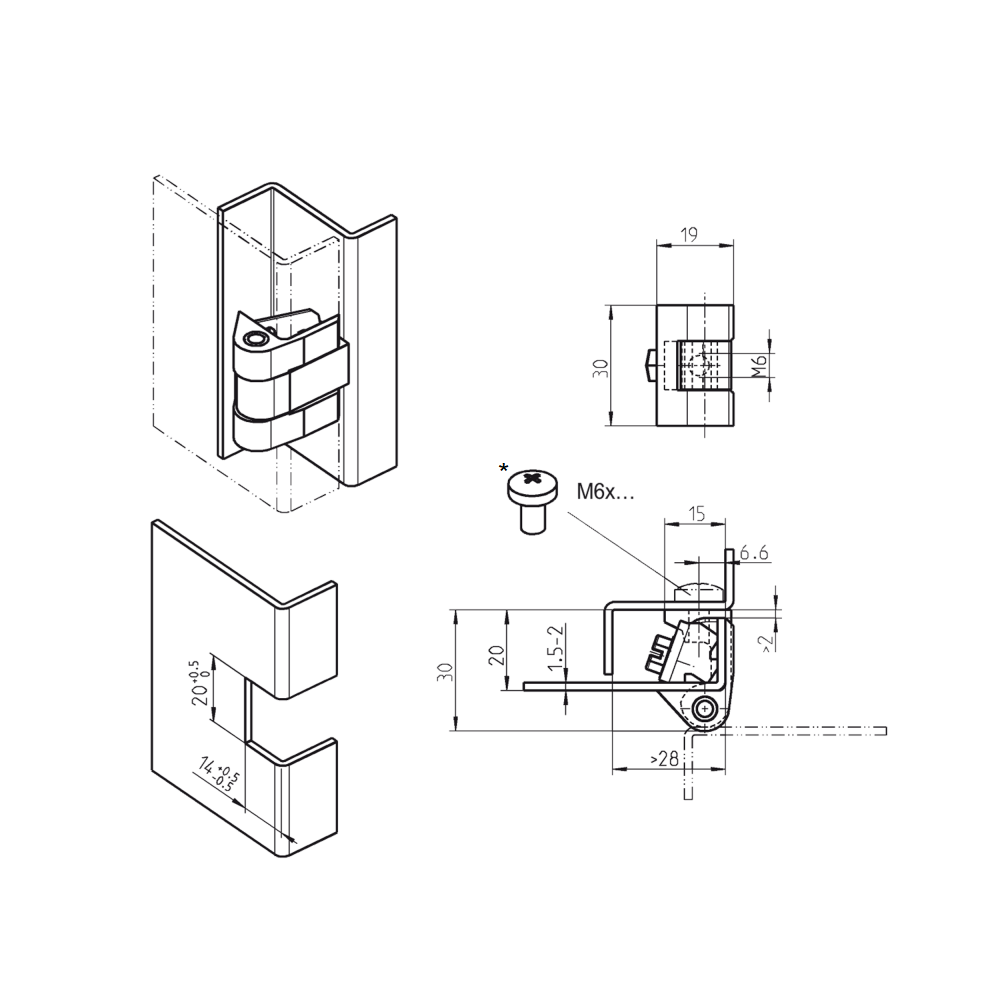

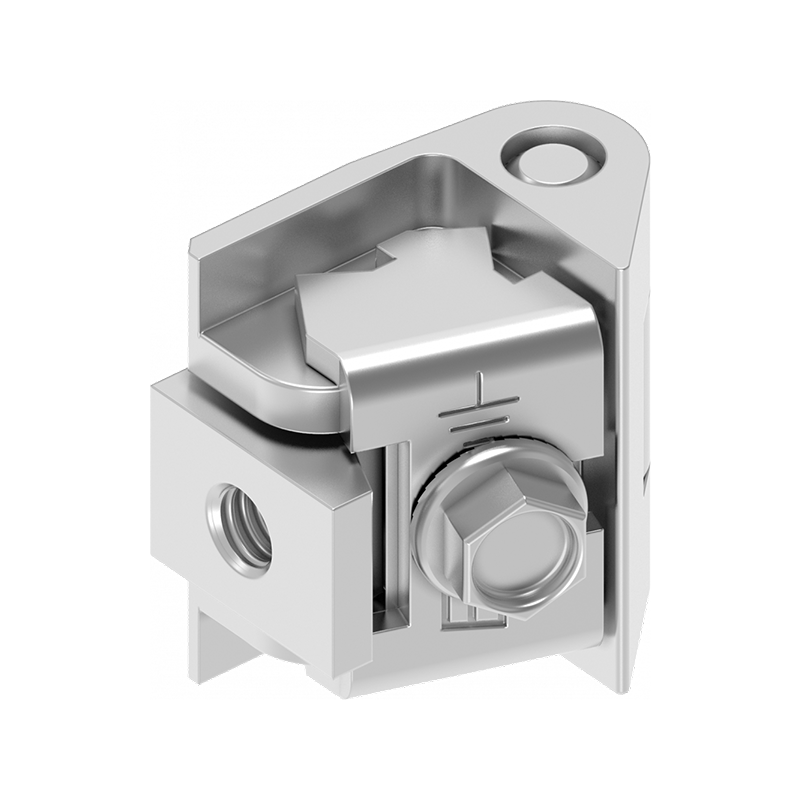

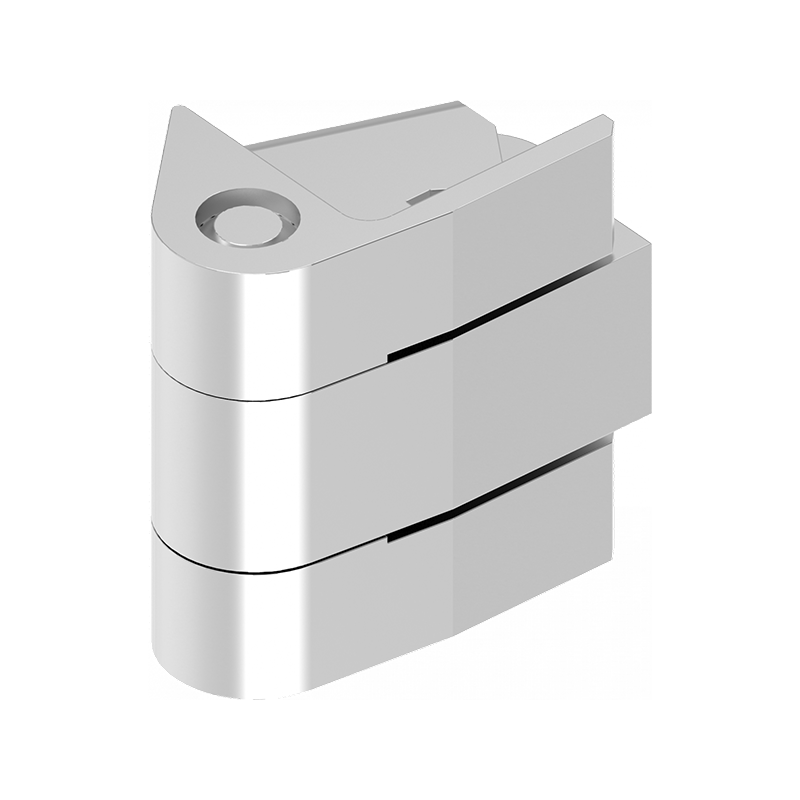

Cabinet hinge, acid proof steel, flush door - visible, fixed pin, L=30, B=19, H=30
MT103110
Cabinet Hinge in acid proof steel for mounting as flush door - visible. The hinge has a fixed pin. Door gauge (Ts): 1,5 - 2mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Material type
Acid proof Stainless Steel
Type
Flush door - visible
Height in mm
30
Length in mm
30
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof steel for mounting as flush door - visible. The hinge has a fixed pin. Door gauge (Ts): 1,5 - 2mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
