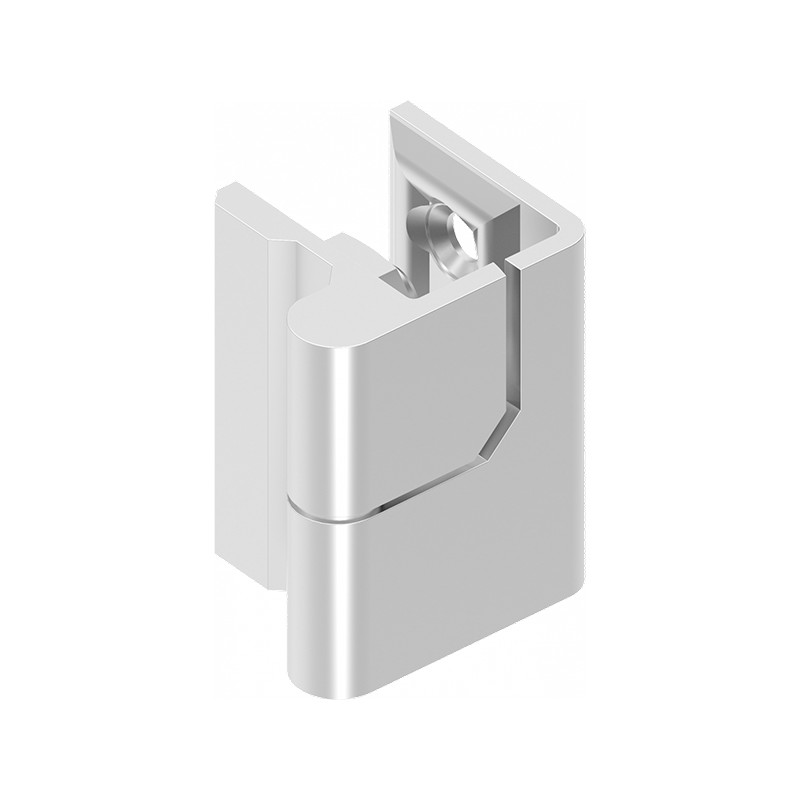

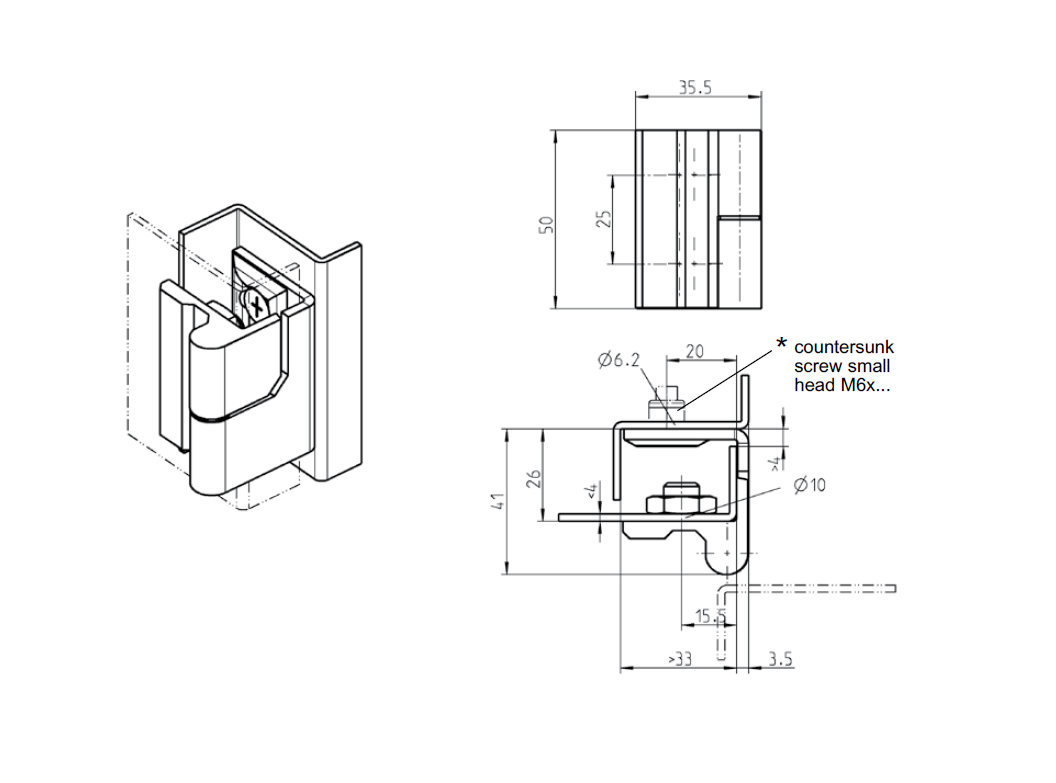

Cabinet hinge, acid proof steel, flush door - visible, lift off pin, L=50, B=35,5, H=41
MT103061
Cabinet Hinge in acid proof steel for mounting as flush door - visible. The hinge has a Lift off pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Lift off
Hinge side
Right
Adjustable
2D+
Material type
Acid proof Stainless Steel
Type
Flush door - visible
Height in mm
41
Length in mm
50
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof steel for mounting as flush door - visible. The hinge has a Lift off pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
