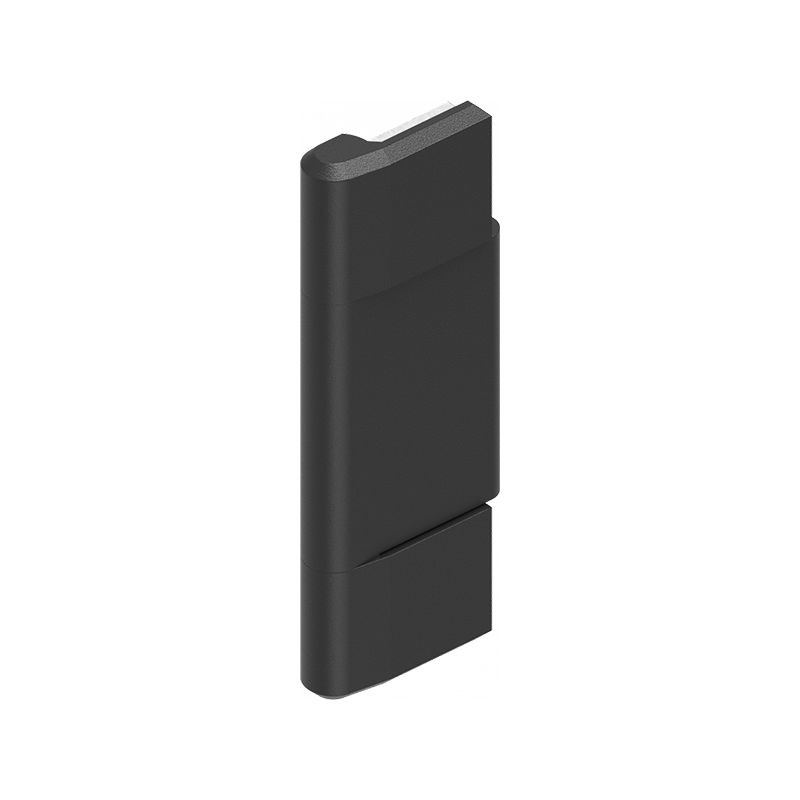

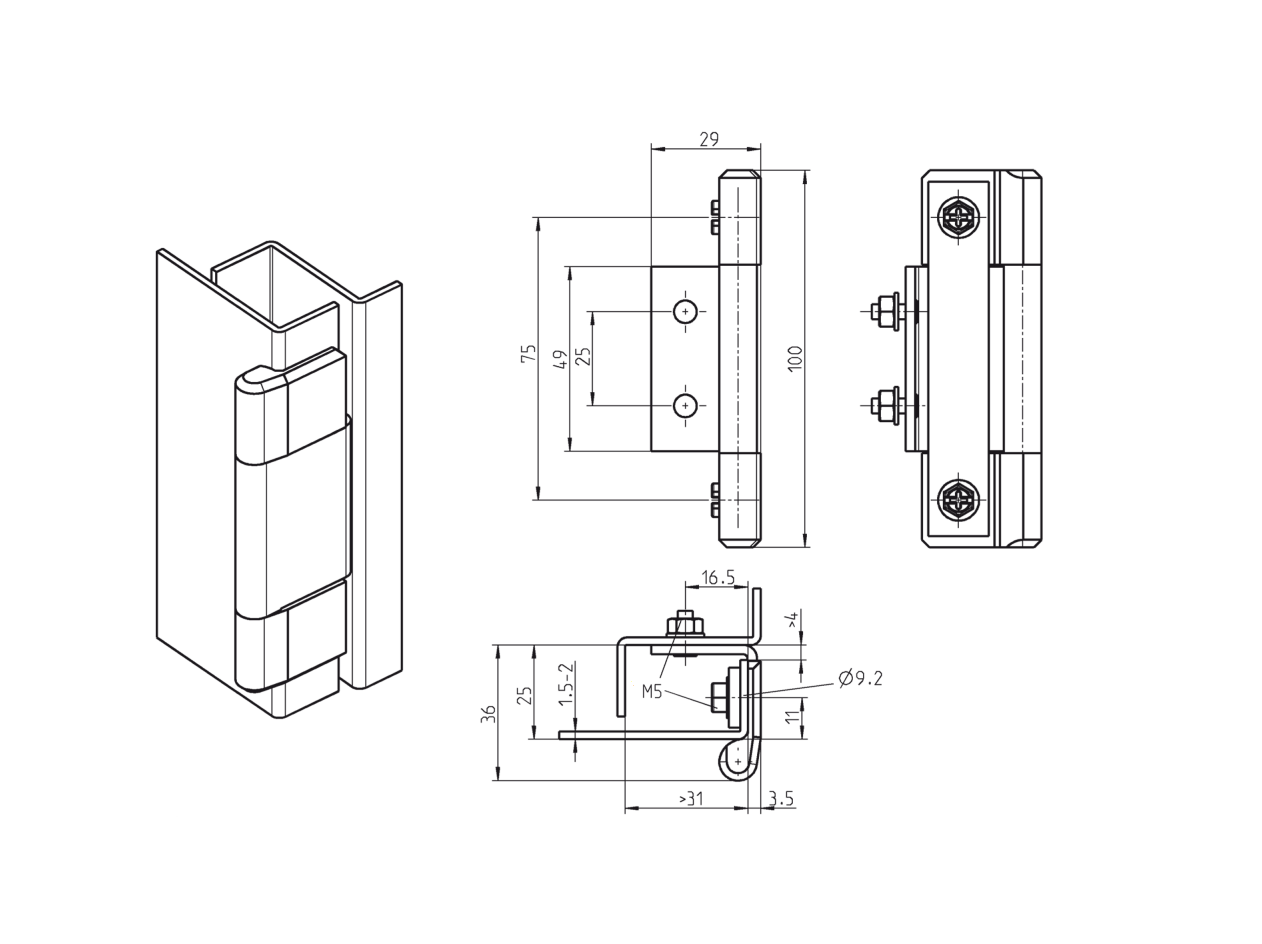

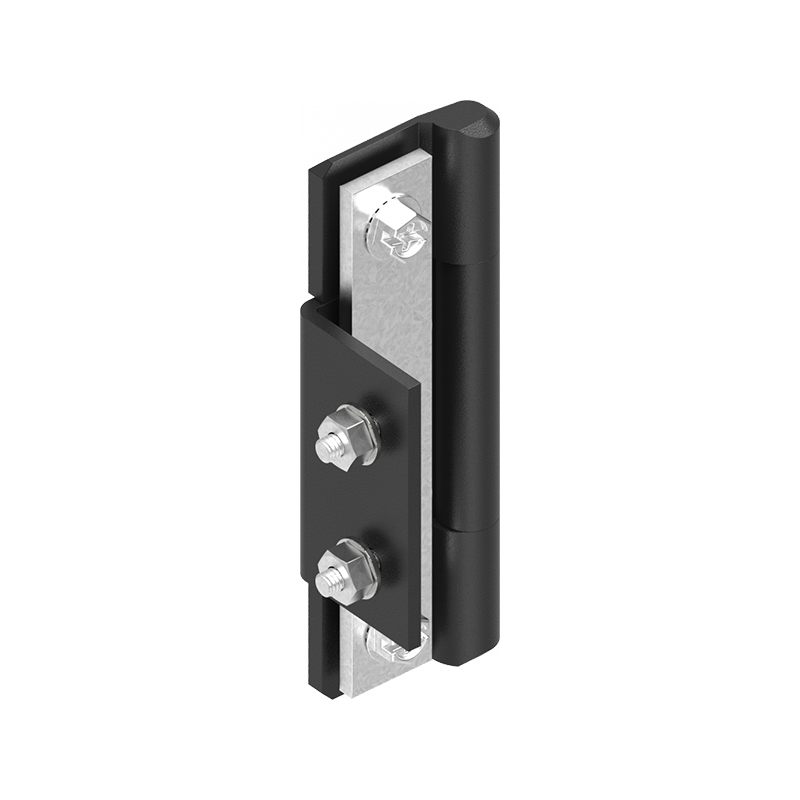

Cabinet hinge, die-cast zinc, flush door - visible, fixed pin, L=100, B=29, H=36
MT103091
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a fixed pin. Door gauge (Ts): 1,5 - 2mm. Surface treatment of the steel part is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Steel
Pin type
Fixed
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - visible
Height in mm
36
Length in mm
100
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a fixed pin. Door gauge (Ts): 1,5 - 2mm. Surface treatment of the steel part is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
