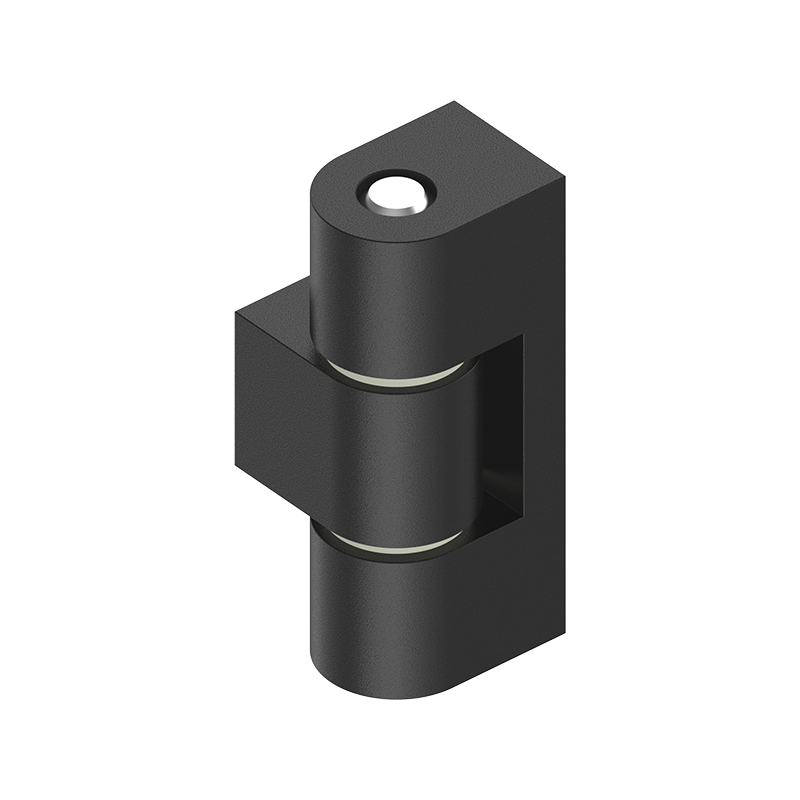

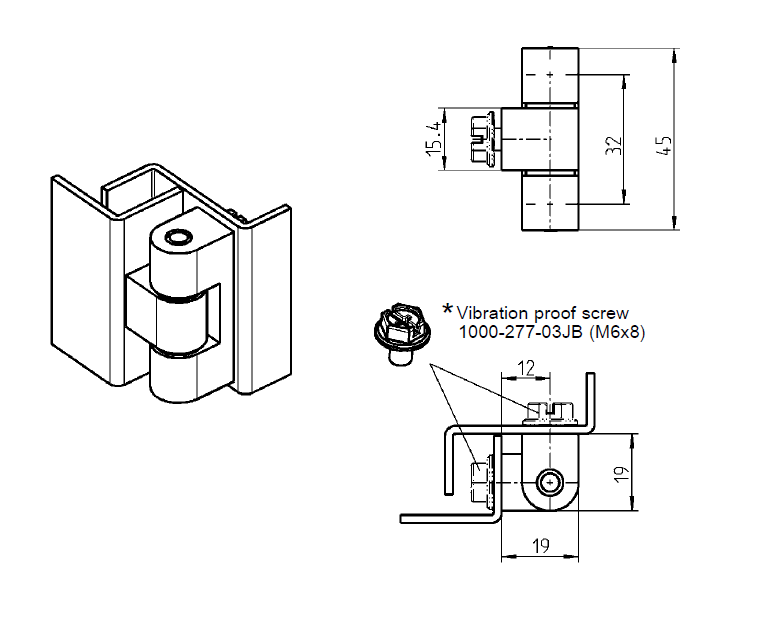

Cabinet Hinge, die-cast zinc, flush door - visible, fixed pin, L=45, B=19, H=19
MT102303
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a fixed pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - visible
Height in mm
19
Length in mm
45
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a fixed pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
