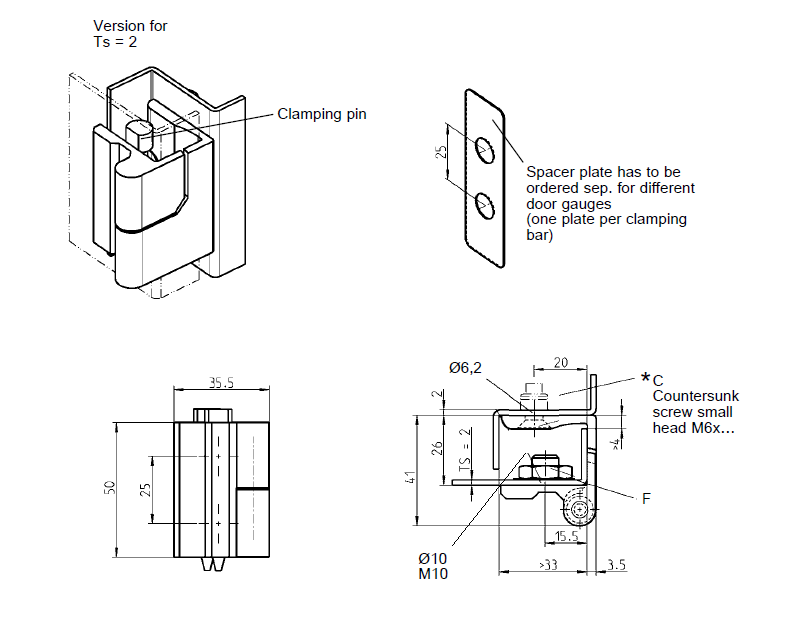

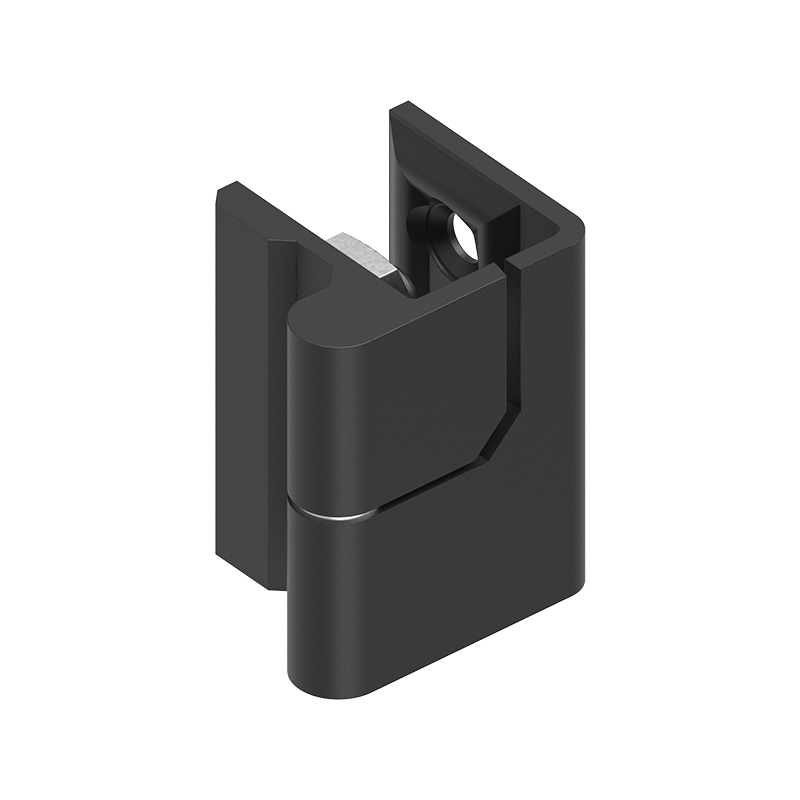

    Cabinet Hinge, die-cast zinc, flush door - visible, lift off pin, L=50, B=35,5, H=41

    MT103060

    Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a lift off pin. Material is a combination of steel and die-cast zinc. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.

    Pin type
    Lift off
    Hinge side
    Right
    Adjustable
    2D+
    Material type
    Die-cast zinc
    Surface finish
    Black powder coated
    Type
    Flush door - visible
    Height in mm
    41
    Length in mm
    50
    Plate thickness max.
    2
    Thickness in mm
    0
    Opening angle
    180
    Long description

    Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a lift off pin. Material is a combination of steel and die-cast zinc. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
