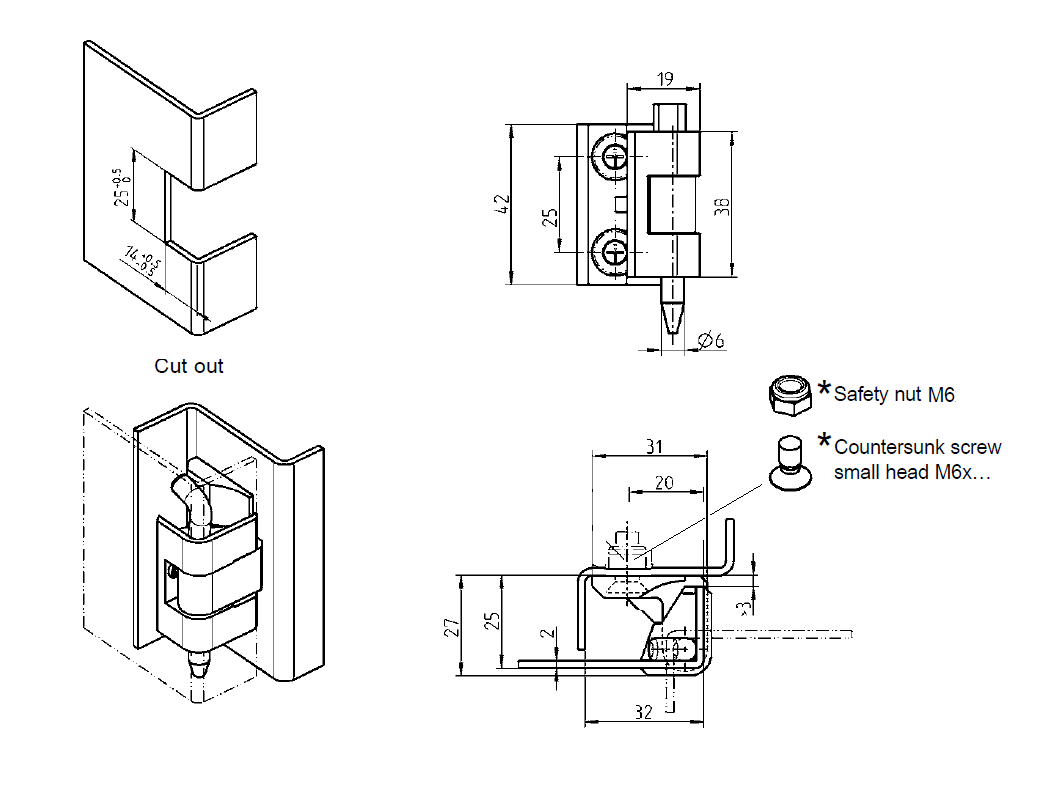

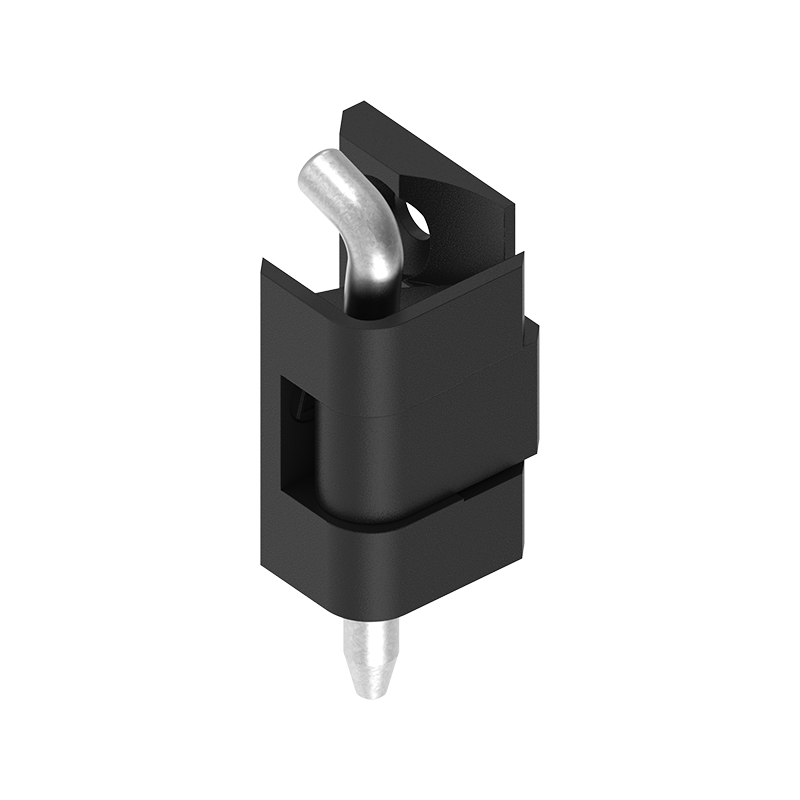

    Cabinet Hinge, die-cast zinc, flush door - visible, loose pin, L=42, B=32, H=27

    MT103080

    Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.

    Pin material
    Steel
    Pin type
    Loose
    Adjustable
    2D+
    Material type
    Die-cast zinc
    Surface finish
    Black powder coated
    Type
    Flush door - visible
    Height in mm
    27
    Length in mm
    42
    Plate thickness max.
    2
    Thickness in mm
    0
    Opening angle
    180
    Long description

    Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
