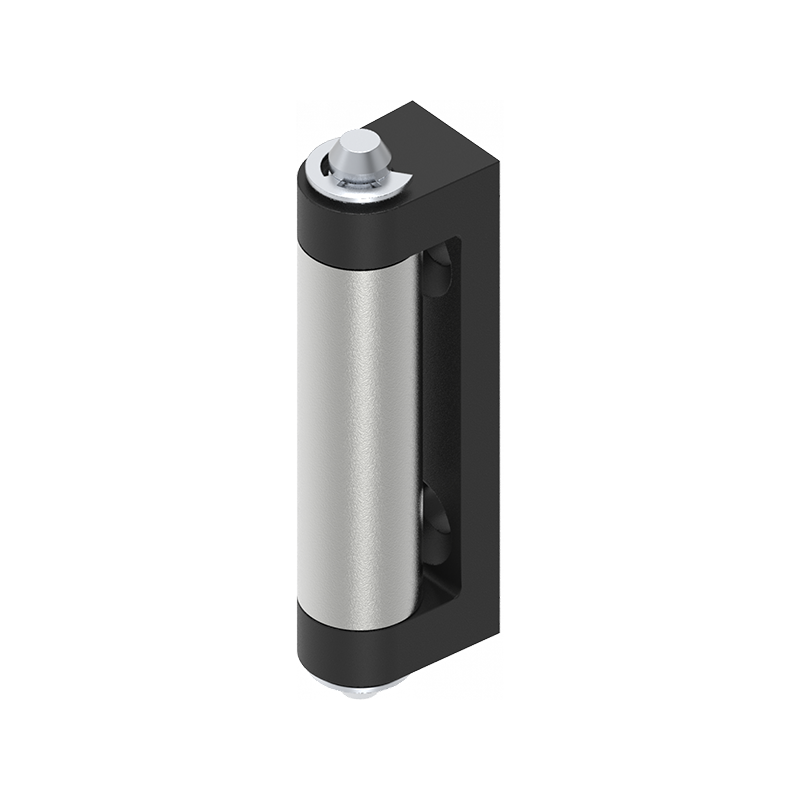

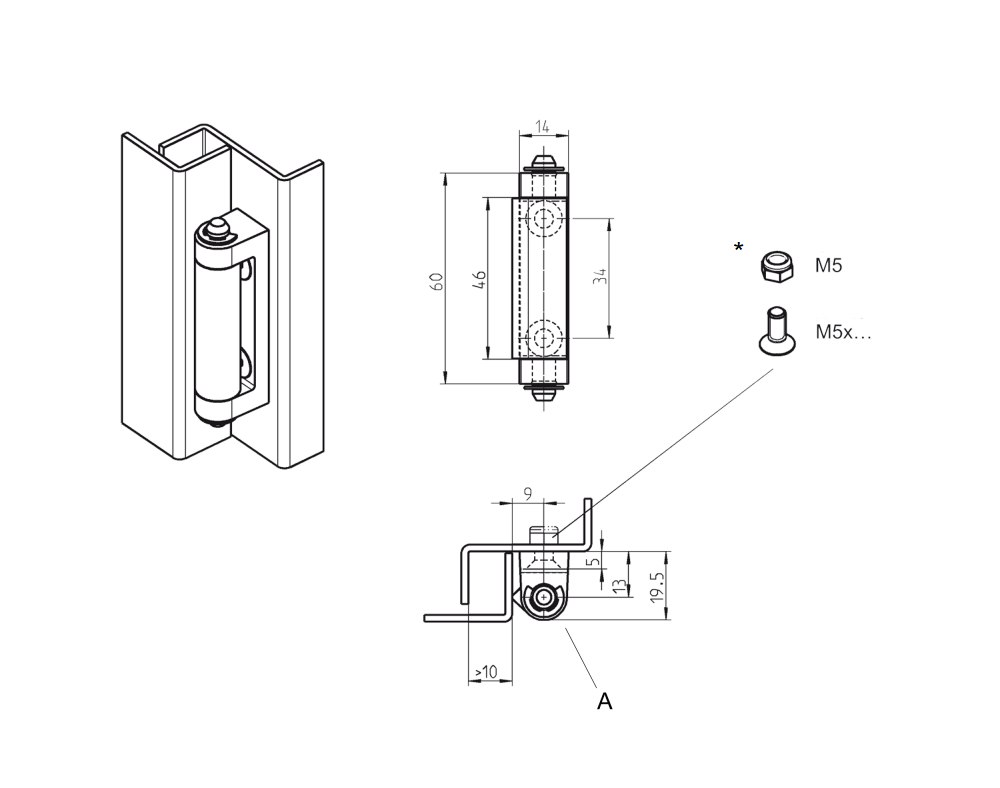

Cabinet hinge, die-cast zinc, flush door - visible, loose pin, L=60, B=14, H=19,5
MT102320
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a loose pin. Material of the middle part is untreated steel. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Steel
Pin type
Loose
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - visible
Height in mm
19.5
Length i mm
60
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a loose pin. Material of the middle part is untreated steel. Surface treatment of the pin is electro zinc plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
