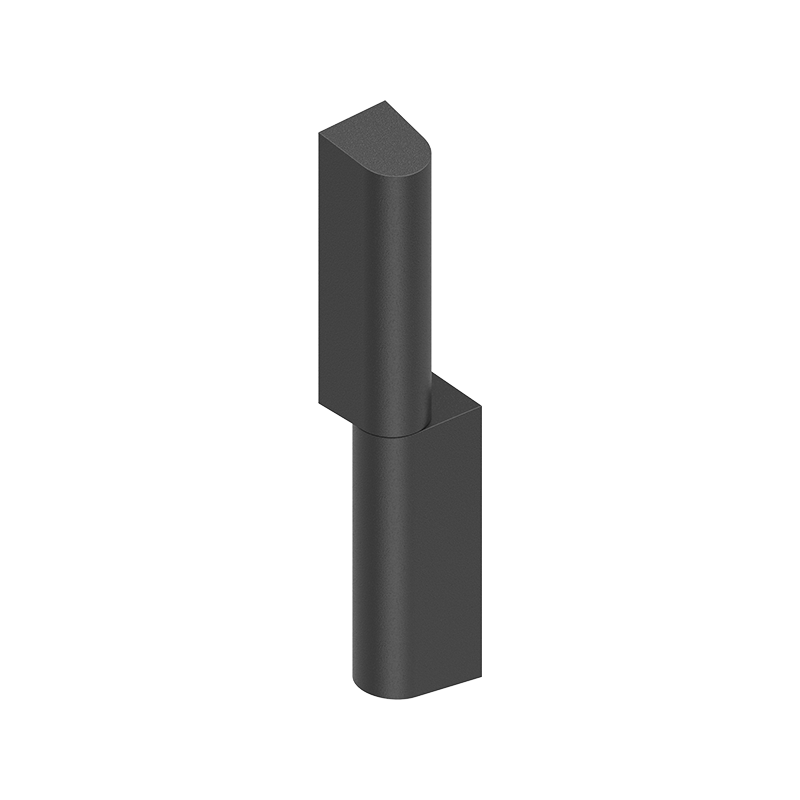

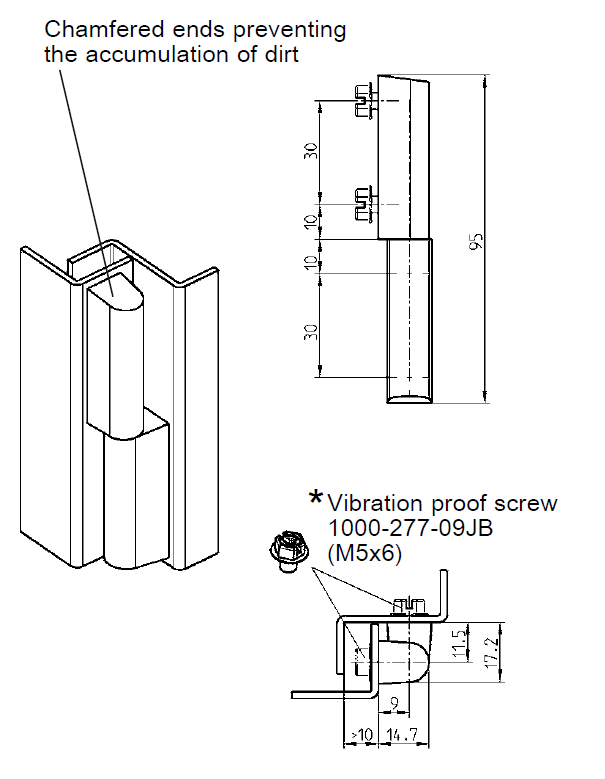

Cabinet Hinge, glass fiber reinforced polyamide, flush door - visible, lift off pin, L=95, B=14,7, H=17,2
MT102479
Cabinet Hinge in glass fiber reinforced polyamide for mounting as flush door - visible. The hinge has a lift off pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Lift off
Material type
Polyamide
Type
Flush door - visible
Height in mm
17.2
Length i mm
95
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Nettovægt
0.0478
Varekode
8302100090
Lande-/områdekode for oprindelse
DE
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as flush door - visible. The hinge has a lift off pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
