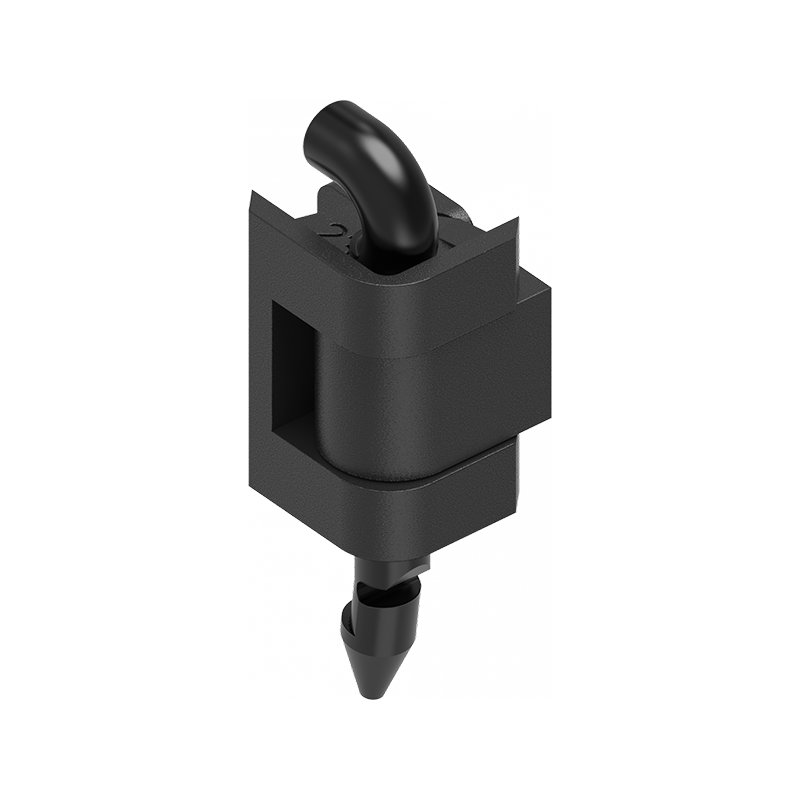

Cabinet hinge, glass fiber reinforced polyamide, flush door - visible, loose pin, L=26, B=21,5, H=17,5
MT103088

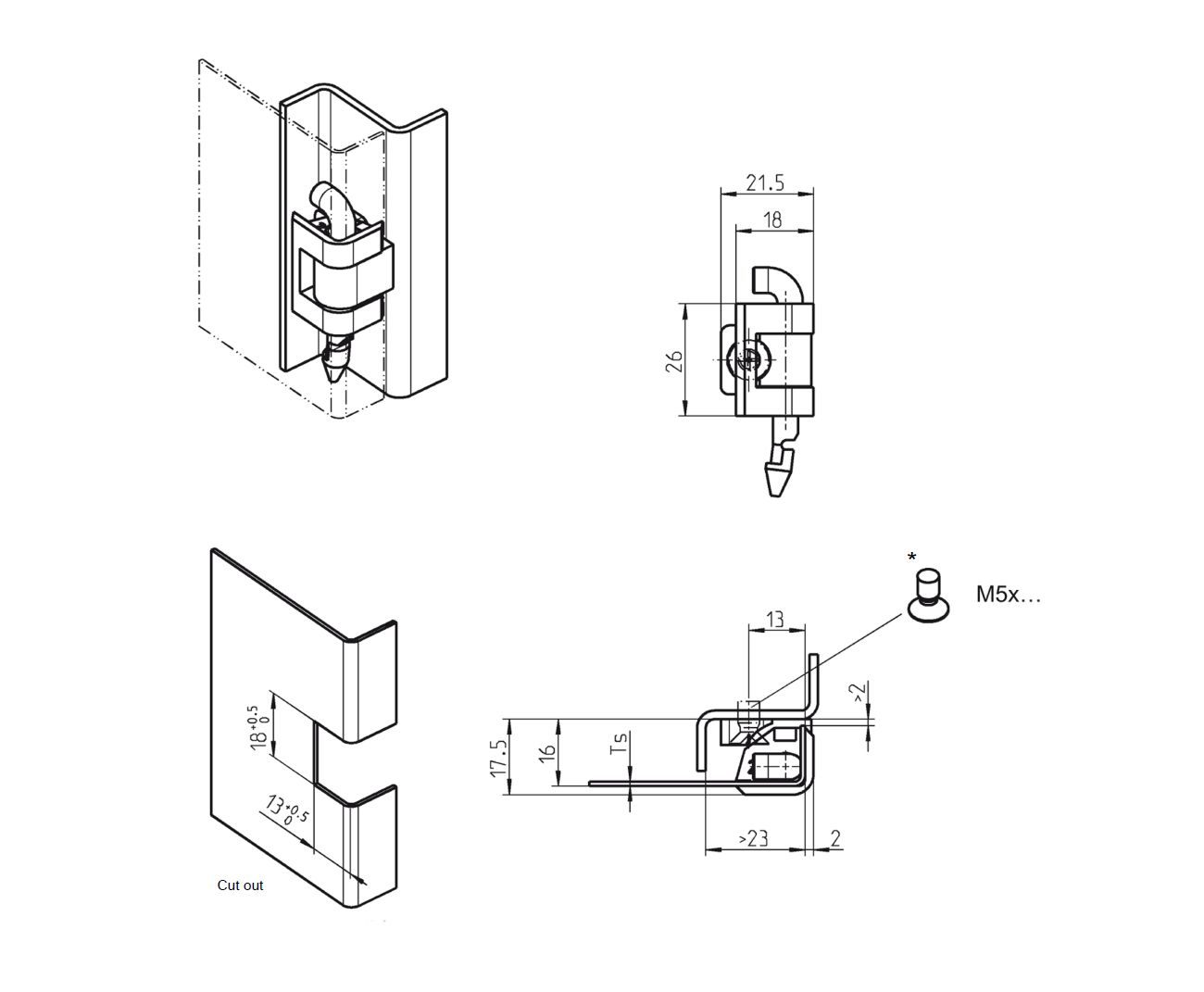

Cabinet Hinge in glass fiber reinforced polyamide for mounting as flush door - visible. The hinge has a loose pin. Door gauge (Ts): 1 - 1,25mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Glass fiber reinforced polyamide
Type
Flush door - visible
Height in mm
17.5
Length i mm
26
Plate thickness, min.
1
Plate thickness, max.
1.25
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as flush door - visible. The hinge has a loose pin. Door gauge (Ts): 1 - 1,25mm.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
