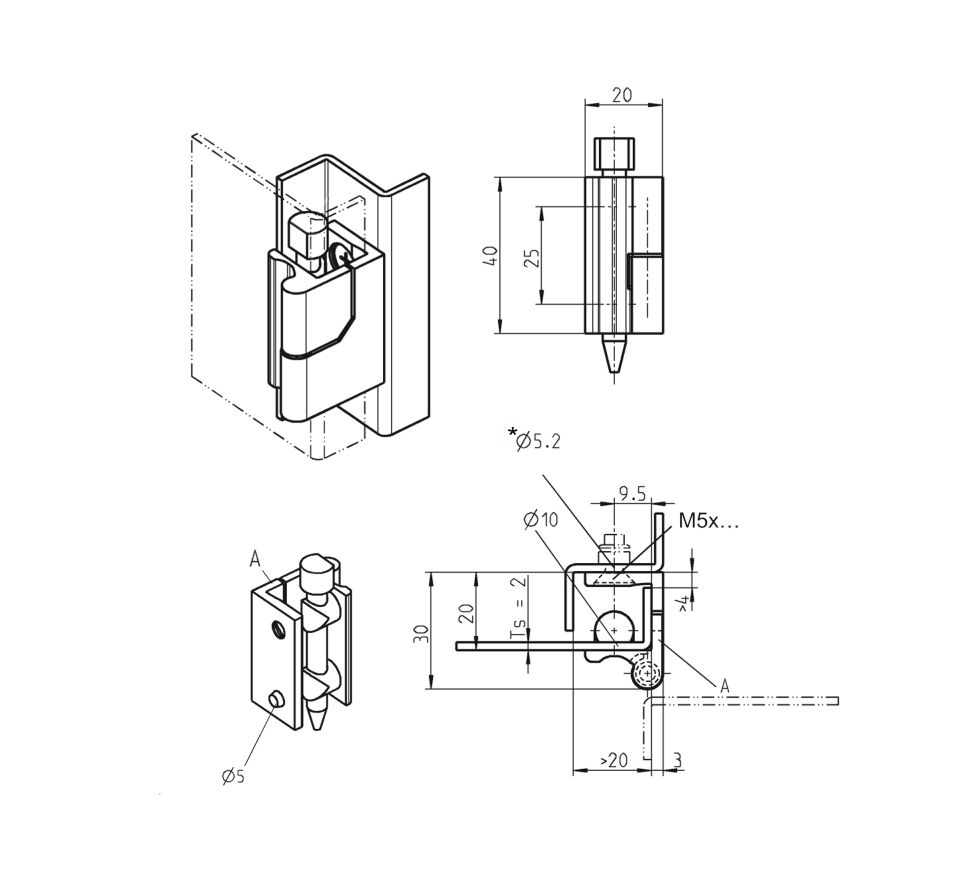

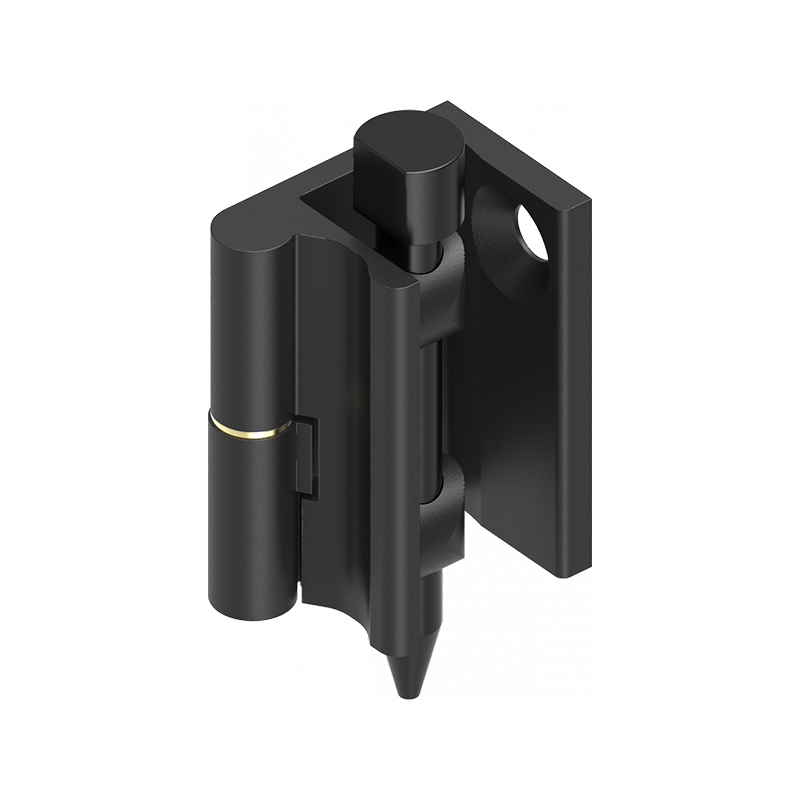

Cabinet hinge, left, die-cast zinc, flush door - visible, lift off pin, L=40, B=20, H=30
MT103129
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a Lift off pin. Lift off from 70° opening angle.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Glass fiber reinforced polyamide
Pin type
Lift off
Hinge side
Left
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - visible
Height in mm
30
Length in mm
40
Plate thickness min.
2
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a Lift off pin. Lift off from 70° opening angle.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
