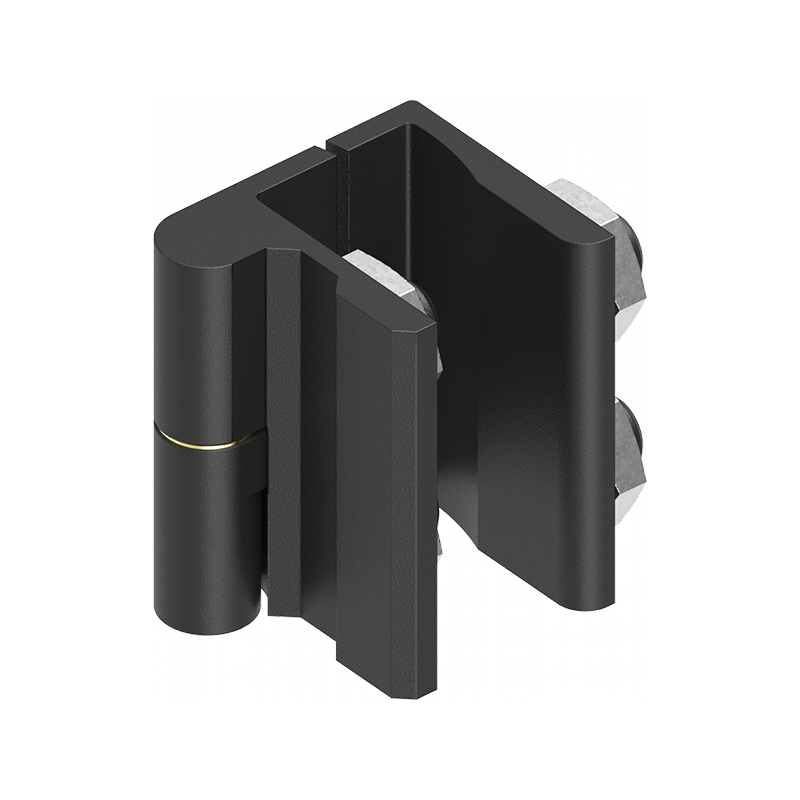

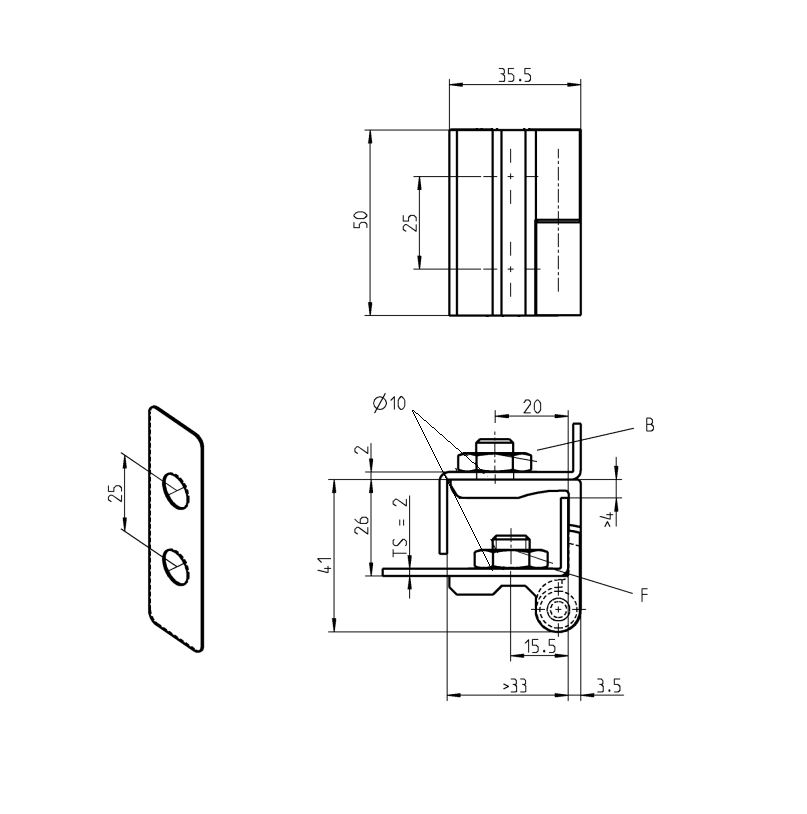

Cabinet hinge, left, die-cast zinc, flush door - visible, lift off pin, L=50, B=35,5, H=41
MT103051
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a Lift off pin. Lift off from 70° opening angle. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Lift off
Hinge side
Left
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Flush door - visible
Height in mm
41
Length in mm
50
Plate thickness max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as flush door - visible. The hinge has a Lift off pin. Lift off from 70° opening angle. Special products can be delivered on request, if the standard range does not cover the requirements.
