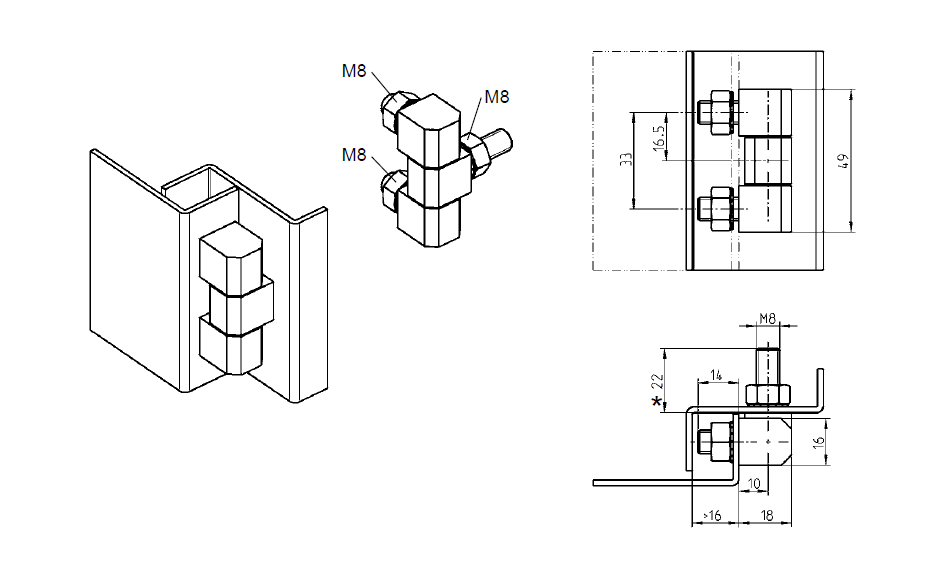

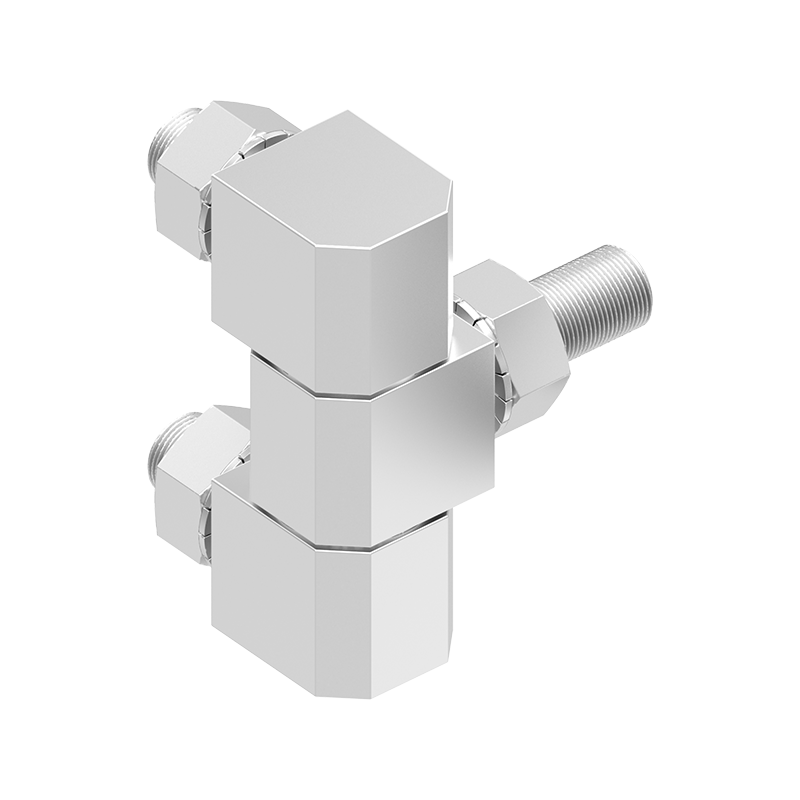

Cabinet Hinge, stainless steel, flush door - visible, fixed pin, L=49, B=18, H=16
MT102117
Cabinet Hinge in stainless steel for mounting as flush door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Stainless steel
Type
Flush door - visible
Height in mm
16
Length in mm
49
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Net Weight (Kg)
0.1333
HS Code
8302100090
Country of Origin
DE
Long description
Cabinet Hinge in stainless steel for mounting as flush door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
