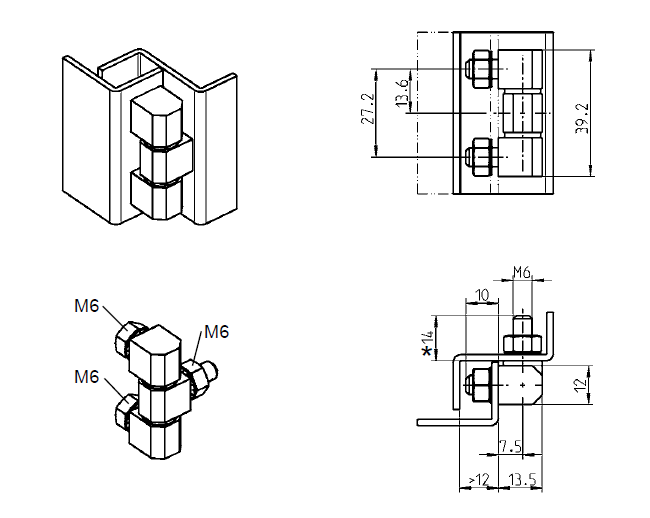

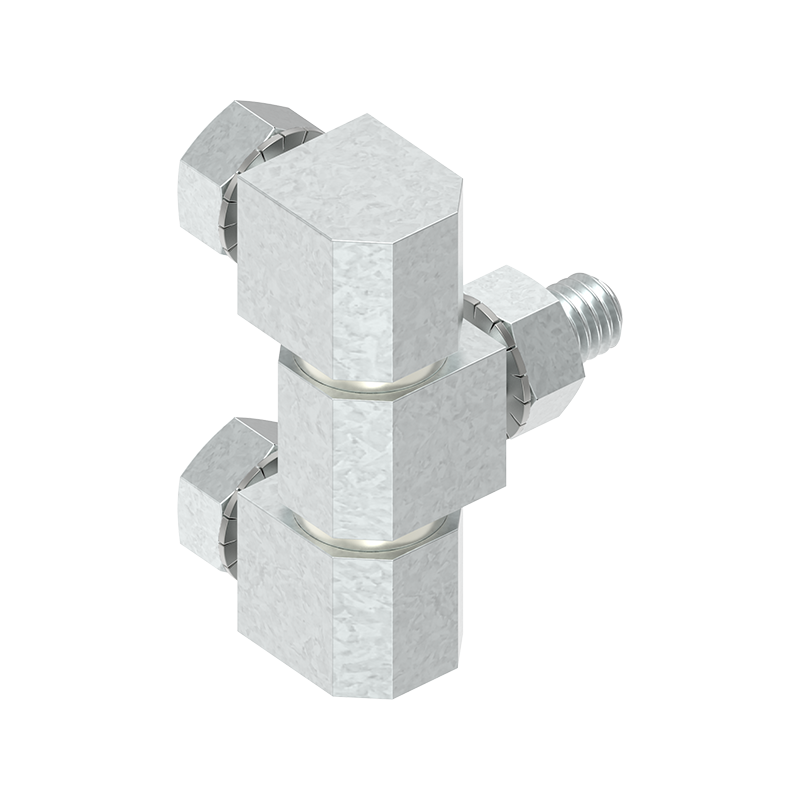

Cabinet Hinge, steel, flush door - visible, fixed pin, L=39,2, B=13,5, H=12
MT102324
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a fixed pin. Surface treatment of the pin is nickel-plated. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Brass
Pin type
Fixed
Material type
Steel
Surface finish
Electro zinc plated
Type
Flush door - visible
Height in mm
12
Length in mm
39.2
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a fixed pin. Surface treatment of the pin is nickel-plated. Special products can be delivered on request, if the standard range does not cover the requirements.
