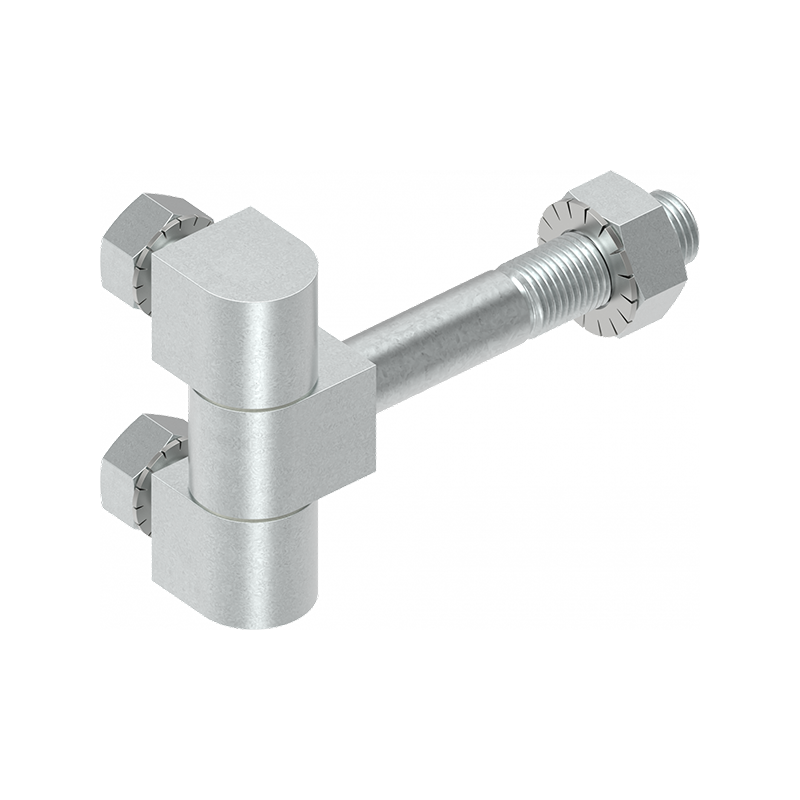

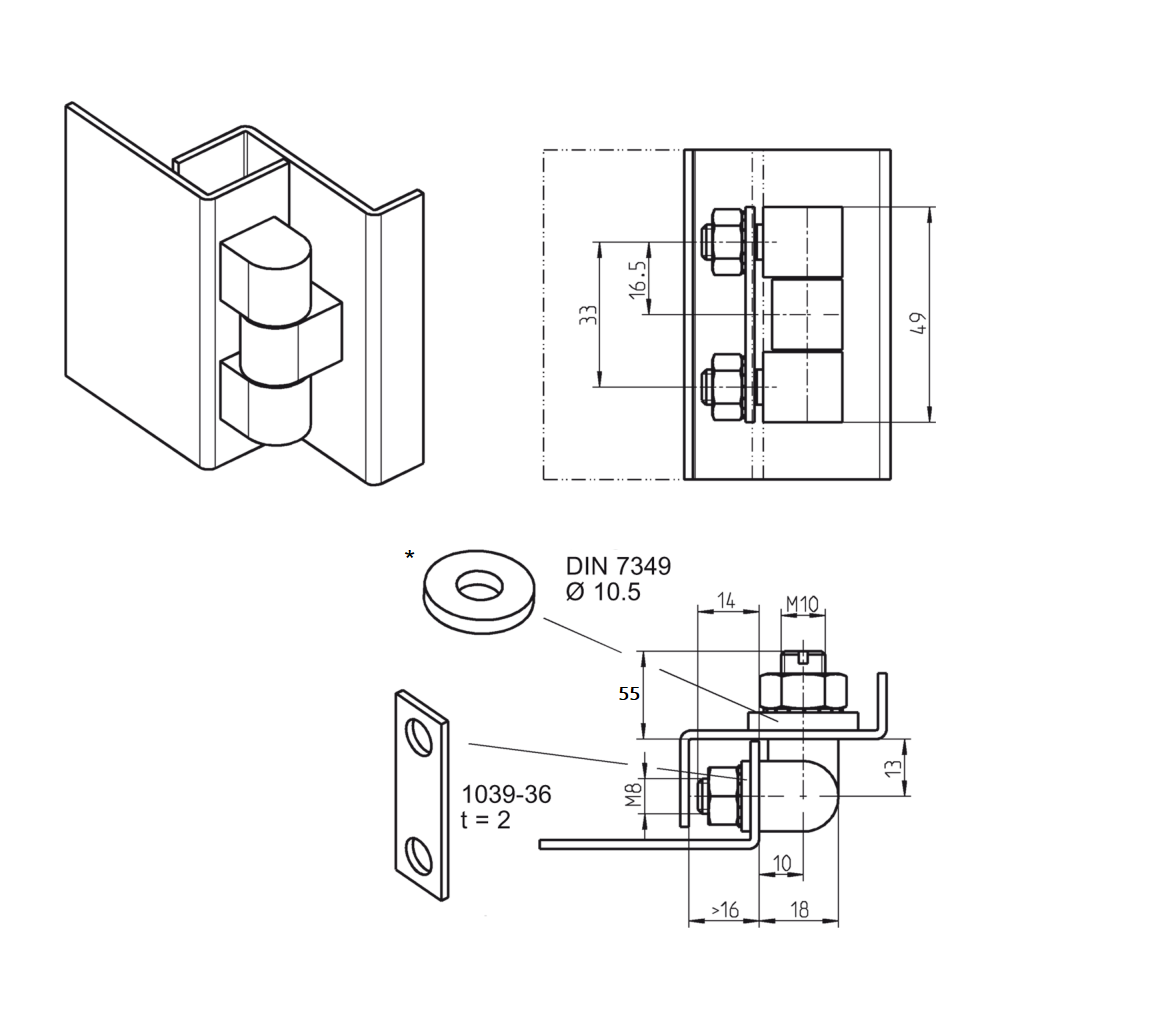

Cabinet hinge, steel, flush door - visible, fixed pin, L=49, B=16, H=18
MT102121
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a fixed pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Steel
Surface finish
Electro zinc plated
Type
Flush door - visible
Height in mm
18
Length i mm
49
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a fixed pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
