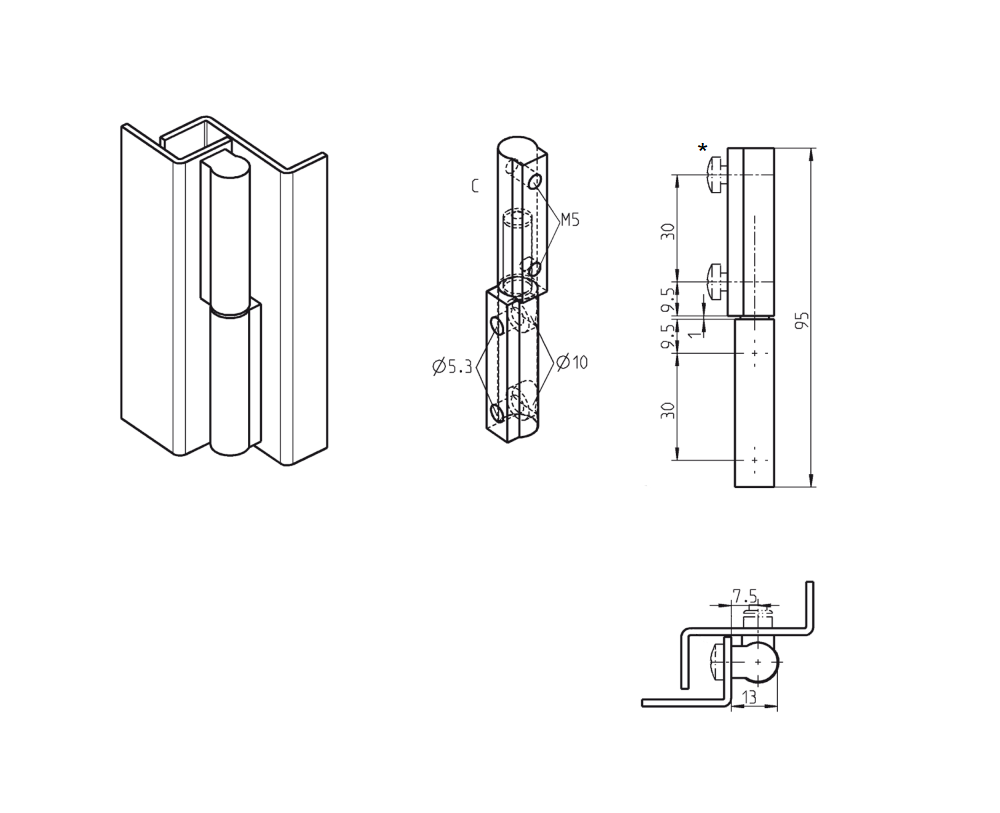

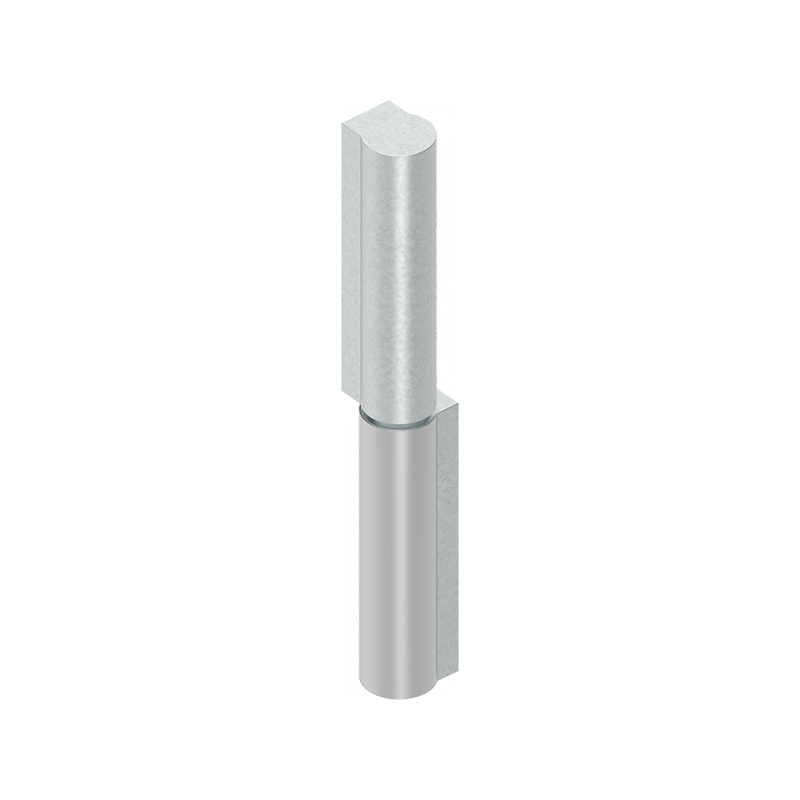

Cabinet hinge, steel, flush door - visible, lift off pin, L=95, B=13, H=13
MT102089
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a Lift off pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Lift off
Material type
Steel
Surface finish
Electro zinc plated and untreated
Type
Flush door - visible
Height in mm
13
Length in mm
95
Long description
Cabinet Hinge in steel for mounting as flush door - visible. The hinge has a Lift off pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
