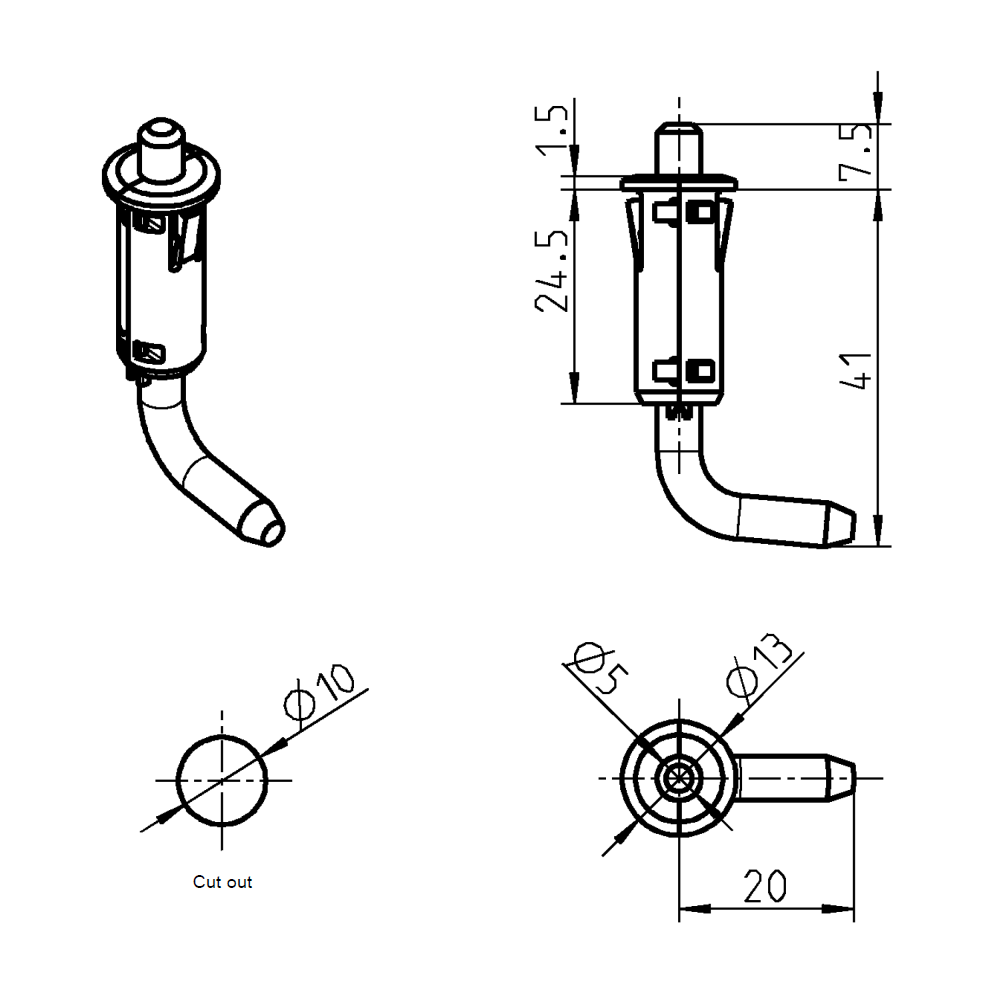

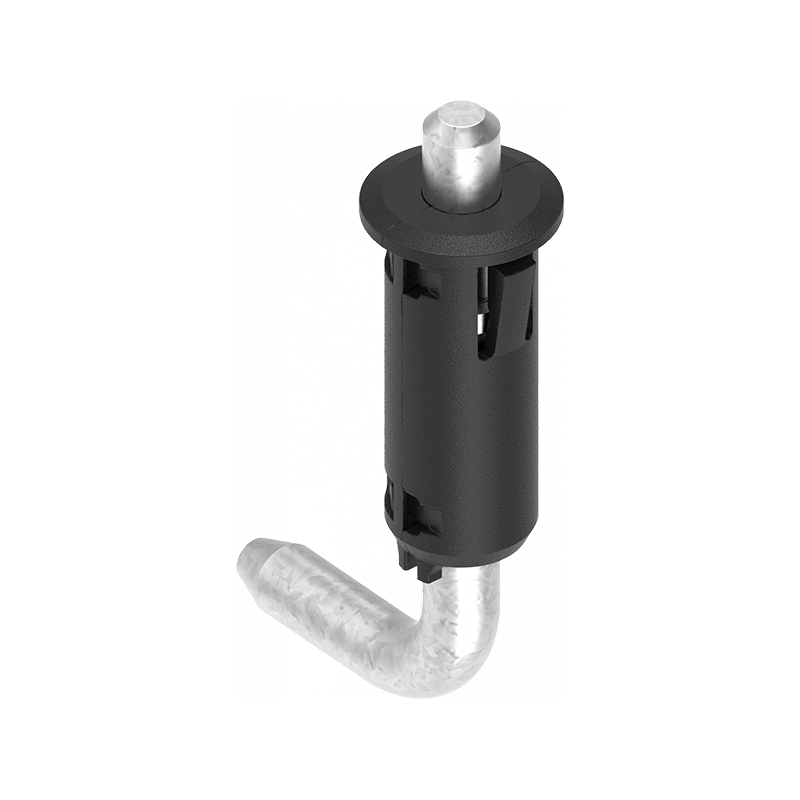

Cabinet hinge, glass fiber reinforced polyamide, prominent door - concealed, loose pin, L=26, B=13, H=13
MT103235
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Die-cast zinc
Pin type
Loose
Material type
Glass fiber reinforced polyamide
Type
Prominent door - concealed
Height in mm
13
Length in mm
26
Plate thickness min.
1
Plate thickness max.
1
Thickness in mm
0
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
